Introduction
Nylon monofilament extruding machine is special design for PA6, 66 monofilamens.

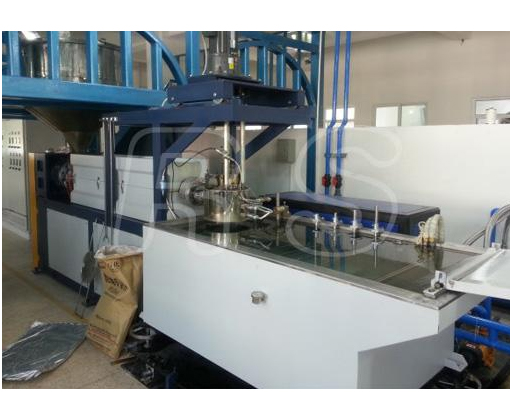

which is composed of extruder, stretching unit, hot water tank, hot blast oven and spindle winder.
The perfect mechanical properties ensure the stability of monofilaments and the sophisticated electric control system make the operation convenient and efficient.
Usage
This machine is applying for the following monofilament:
 |
Various grass trimmer line such as square shape, round sharp, hexagon shape, twist sharp… |  |
 |
Nylon monofilament for fishing line, fishing net, sewing line, embroidery thread… |  |
 |
Nylon monofilament for Velcro, hair buns… |  |
 |
Various colored nylon monofilament for frosted yarn, guitar string… |  |
 |
Specification
Dia.of screw | Φ65-70mm |
Raw material | PA6, PA66 |
Capacity | 50-150Kg/H |
Ratio of L/D | 26-30:1 |
Screw material | 38CrMoALA |
Motor of extruder | 11-30Kw |
Quantity of spinneret | Single or double die |
Holes of spinneret | 2-224 holes |
Stretching unit | 3-5 sets |
Stretching method | Hot water tank |
Setting method | Hot blast oven |

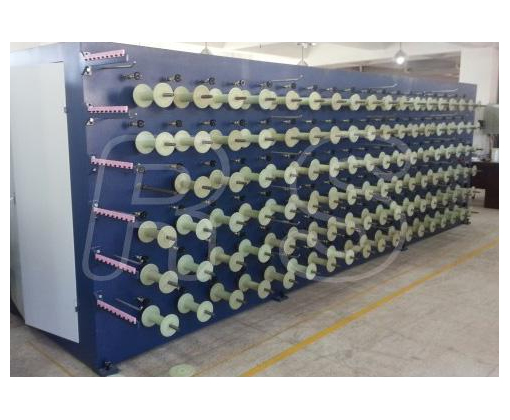

Winding unit | Spindle winder |
Electric control system | 2-4 electric cabinet |
Total Installed capacity | 120-350Kw |
Total dimension(L×W×H) | 24000-52000mm×2800mm×2300mm |
