1000mm One Layer Fully Automatic Stretch Film Unit
This unit uses LLDPE as main material and adopts several kinds of resins to manufacture the single/double-side self-sticky stretch wrapping film. The film has good tensile strength, anti-pricking ability and impact strength. Its good shrinking memory function and self-sticky can make goods integrity to prevent goods from loosening and collapsing during transportation and being polluted by dust. The transparency and tensile strength of this product can make the packaging beautiful, economical and practical.
Main Technical Parameter:
Model: CL-80J
Width of Die Head: 1250mm
Width of Film: 1000mm
Thickness of Film: 0.01-0.05mm
Liner Speed of Machinery: 120m/min
Max Extrusion Capacity: 110kg/h
Max Rewind Diameter: 400mm
Screw Diameter: 70mm
L/D Ratio of Screw: 30:1
Motor Power of Main Machine: 15/30kw
Total Power: 13-50kw
Overall Dimensions(L*W*H): 7.6*4*3.6m
Total Weight: 9T
Features:
1. The alloy screw adopts special mixing refining function and high plasticity design, it is JINHAILUO SCREW-BEST screw in China.
2. The bi-directional loop design and helix runner inside cooling steel roller is adopted to ensure even temperature of roller surface.
3. T-die is based on our thirties actual experience, absorbing foreign advanced technology, made by our professional technician.
4. The winding system apply air knife online device, which can automaticlly cut different thickness film as customers' required.
Application

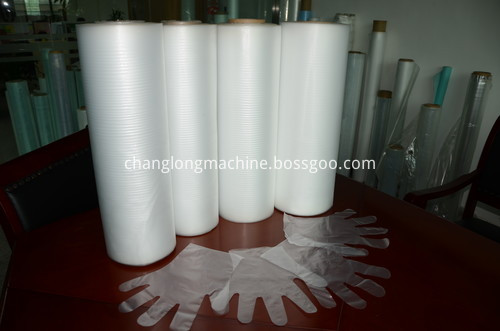

The film produced by this machine can be widely used in wrapping of palletized goods. It's a good substitute for hot shrinking packaging film during transportation.
Workshop
Exhibitions
Certificate
Packing
The machine will be packed by stretch film,wooden motherboard,is suitable for seaway according to the requirement of different countries.
Company
After-Sales Service
Our professional engineering team is constitutive of excellent technical staff. We can provide perfect after-sales service in time, give a good technical training to ensure the product in best state perennially.
We will respond to customer`s service requests and complaint in the shortest possible time, give a clear reply and solution to deal with in time. At the same time, we sum up customer`s complaint and proposal in order to inherit our advantages, correct our inadequate. We will commit to improve our services quality, so that our customers will be most satisfied.
We offer warranty on product quality and lifelong maintenance services.
