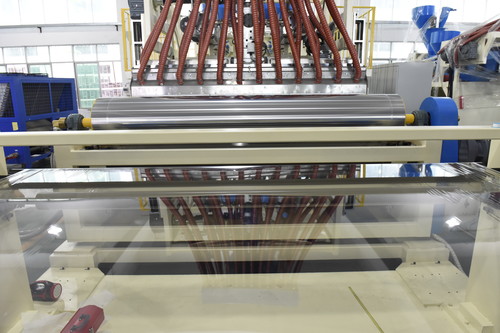

2000mm PE Cast Film Machinery
Based on 30 years professional skills and continuous improvement, this new style high speed unit is designed for one side sticky or two sides sticky three- layer / five-layer stretch film, cast stretch film, cling film, embossing film, protective film etc., mainly adopts LLDPE , recycled LLDPE, CPE, PP, PE as raw material.
Main Technical Parameter:
Model: CL-80/100/80H
Width of Die Head: 2400mm
Width of Film: 2100mm
Thickness of Film: 0.01-0.05mm
Structure of Film Layers: A/B/C or A/C/B/C/A
Liner Speed of Machinery: 350m/min
Max Extrusion Capacity: 460kg/h
Max Rewind Diameter: 400mm
Screw Diameter: 80/100/80mm
L/D Ratio of Screw: 30:1
Motor Power of Main Machine: 45/90/45kw
Total Power: 150-300kw
Overall Dimensions(L*W*H): 14*7*4.5m
Total Weight: 25T
Features
1.Linear Speed (max): 350m/min, 20 microns thickness can get capacity 10 tons per day.
2.Motor connect with gear box directly, greatly improves screw extrusion per minute, improves whole machine capacity.
3.Ceramic cast aluminium thermostat screw heater, to make the LLDPE with perfect plasticizing properties.
Application
The film can be widely used in wrapping of pallet packaging, storage packaging, manual packaging and so on.
Certificate
Packing
After-Sales Service
We possess a professional and young management and technicial team, our service net covers all around the world, the rapid and convenient service will meet your demands.
1. 12 months warranty period , lifelong maintenance services , engineer to door maintenance.
2. Senior engineer installation guide & operator train.
3. Machine instruction , ready access.
4. Technical service team , 7*24h telephone service.
