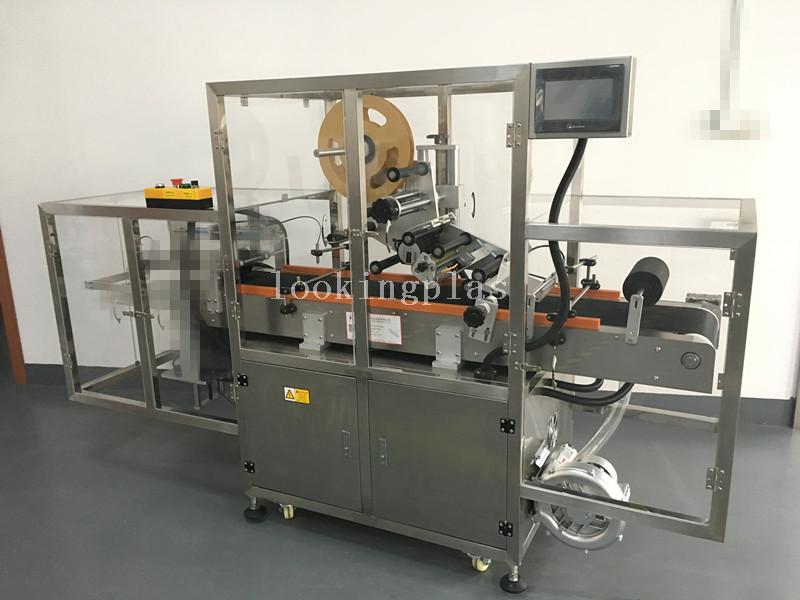

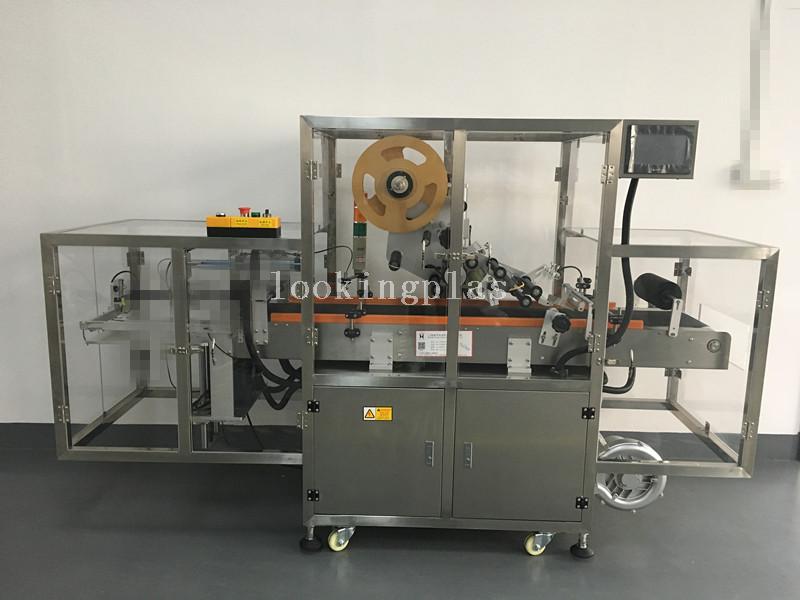

Automatic separation bags Labeling Machine
1.This series of products are not only suitable for thePlastic Bags /Pouches /cards /papers in pharmaceutical, pesticide, food & chemical industries.
2. It can automatically Seperate cards pouches Papers, sending mark tape, separating labels synchronously, labeling and automatically printing batch number etc.
3. With mechanics technology, it adopts big torque motor to drive, and imported photoelectric control & PLC program control system, thus guaranteeing accurate labeling, stable, reliable and high efficiency.
Features:
With micro-computer labeling system, fast & stable, suitable for longtime work
with system check function: labels lacking or broken, leaving out, e-stop, abnormal frequency-conversion, typewriter ribbon lacking, it can detect all & then stops auto.
The I/O self-check function, can display all system photoelectric signals & motor, shorten repair time, reduce maintenance cost.
With step less speed control, labeling speed automatically changes according to conveying speed, no need to move labeling sensor.
Made of SUS304 & alumni alloy, totally meeting GMP requirements.
Product Size | 20≤product width≤160mm; length≥40mm 20≤productwidth≤300mm; | Requirement | Adhesive label in roll, 76mm≤rolldiameter≤280mm,
3≤distance of 2labels≤5mm |
Label Size | 10≤Width≤135mm, Length≥10mm | Supply Power | 220V,50/60Hz, 1.2KW |
Labeling Precision | +-1mm | Machine Size | 2000*1200*1300mm3 |
Labeling Speed | 30-150PPM | Weight | 300kg |
