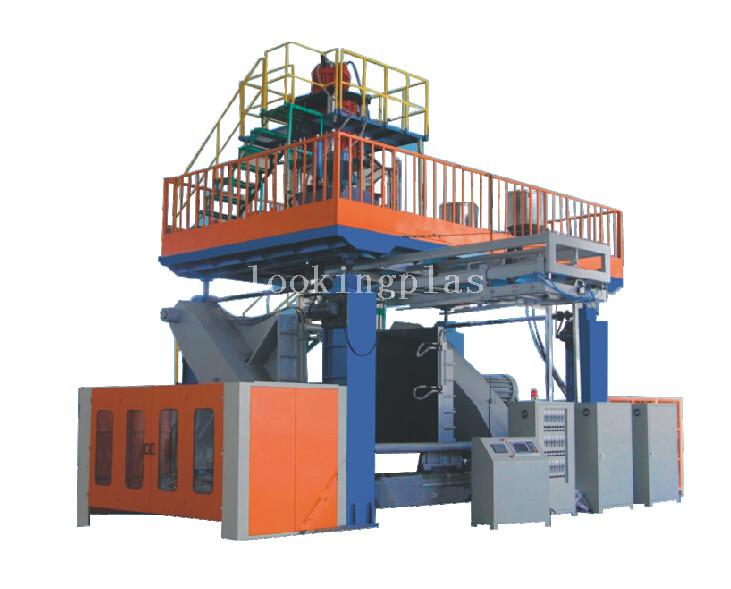

Features of blow molding machinery:
Three layers of blow molding machinery can make two/one layer of water tank by the same machinery
All electrical components using SIEMENS brand name.
Using SERVO motor drive on extruders to adjust speed quickly for changing parison weight, screws with special design.
Two pulling rods clamping structure with stable operation
Two hydraulic stations by SERVO drive to acquire energy saving
PLC touch screens(wall thickness and machinery operation touch)
Head die with spiral flow channel design without weld point
Pneumatic system has function of silencing
Layers of Finished Products : 2-5 layers
Material : hdpe
Productivity : 6-8 pcs/h
Weight of Machine : 65 Tons
Size of Machine : 12M( L)* 4.5M(W)*7.2M(H)
Total Power : 460kw
Hydraulic System : Oil Tank Capacity
Main Operation Panel : Siemens
Die Head Temperature Control : Siemens
Delivery Period : 3 months
Average Power Consumption : 230-250kw
