Product Description
Extrusion melt gear pump for color masterbatch extrusion line
GM-ME series melt gear pump dedicated to thermoplastic extrusion process , such as sheet, plate, tube, film industry that requires special stable extrusion pressure flow system, installed on the extruder between exports and die head for metering pump.This series of melt pump adopts special gear structure and special flow design, to ensure the stability of the outlet pressure and flow rate .
Finished melt gear pump pictures

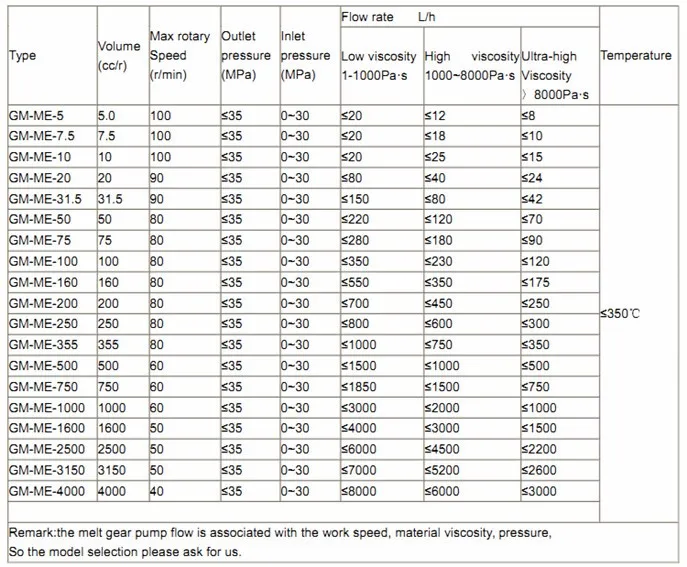

Technical data
The following mode is our standard mode melt gear pump ,some other mode can tailor design for customers
Main Features of melt gear pump
(1)Minimal melt flow pressure pulsation , the melt flow can realize linear output ,suitable
(2)for precise extrusion system;
(3)This melt gear pump can be used on high temperature (350℃),high pressure(40Mpa),high viscosity (40,0 00Pa•s)xtrusion process
(4)Precise structure, high precision,long service life
The main function of this extrusion melt gear pump
(1),Greatly improve the pressure stability of the extrusion die,improve the quality of the products
(2),The melt floow can realize linear output, easy to control
(3),Increase the extrusion output, improve the production output
(4),Decreasing the load, save energy and reduce the cost.
Application show
Extrusion melt gear pump for color masterbatch extrusion line
This kind of melt gear pump used on the compounding extrusion line , also can be used on many other kind of production line .
Such as the monofilament extrusion line , sheet extrusion line , film blowing extrusion line , pipe extrusion line
Detailed parts
Machine Parts
Name: gear system of melt gear pump
Brand: Gmach
Original: China
All material we use is high quality alooy steel ,we design the melt pump according to the reality working condition of customers' machien
Main Features
Name: Heater of the melt gear pump
Brand: Gmach
Original: China
Domestic famous manufacturer produce ,with high efficiency and good quality .
Our Service
Packing & Delivery
Packaging |
Size | 670 (L) * 450 (W) * 550 (D) |
Weight | depends |
Packaging Details | The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request. |
Related Products

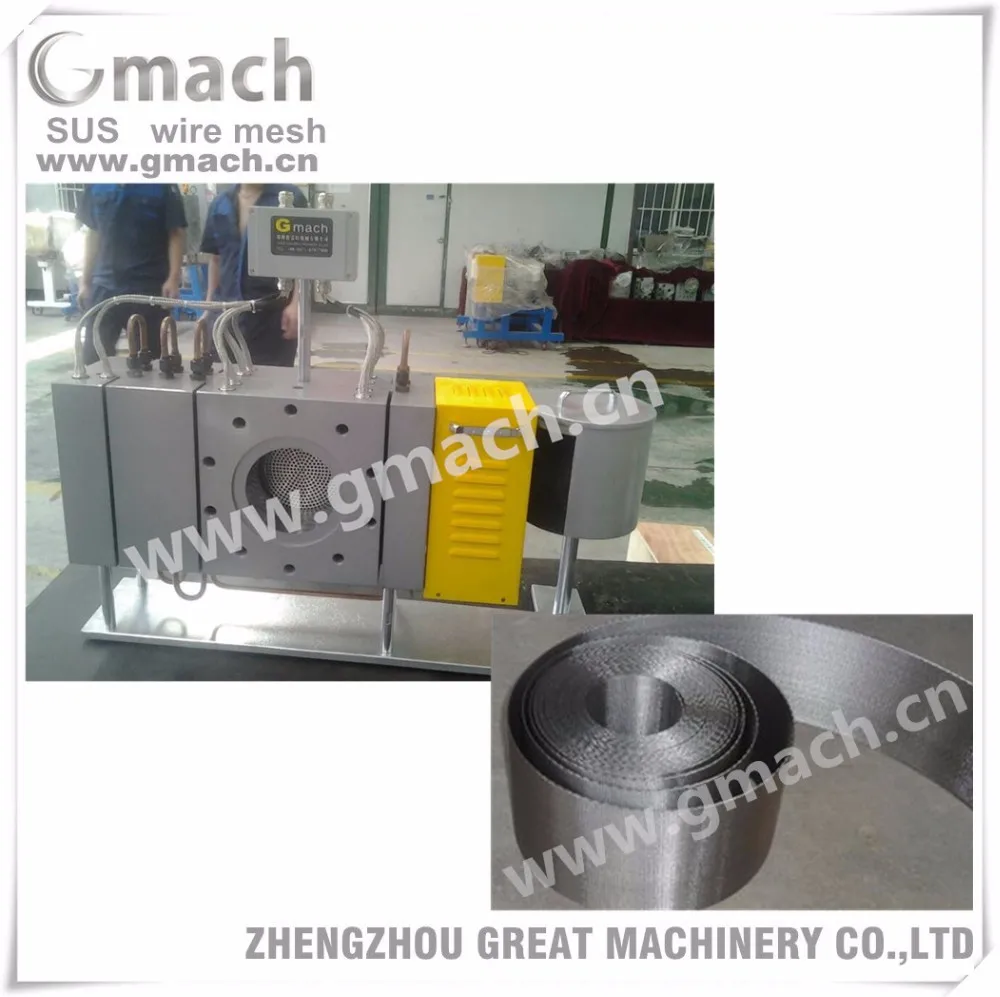

Continuous screen changer
91.8% Response Rate

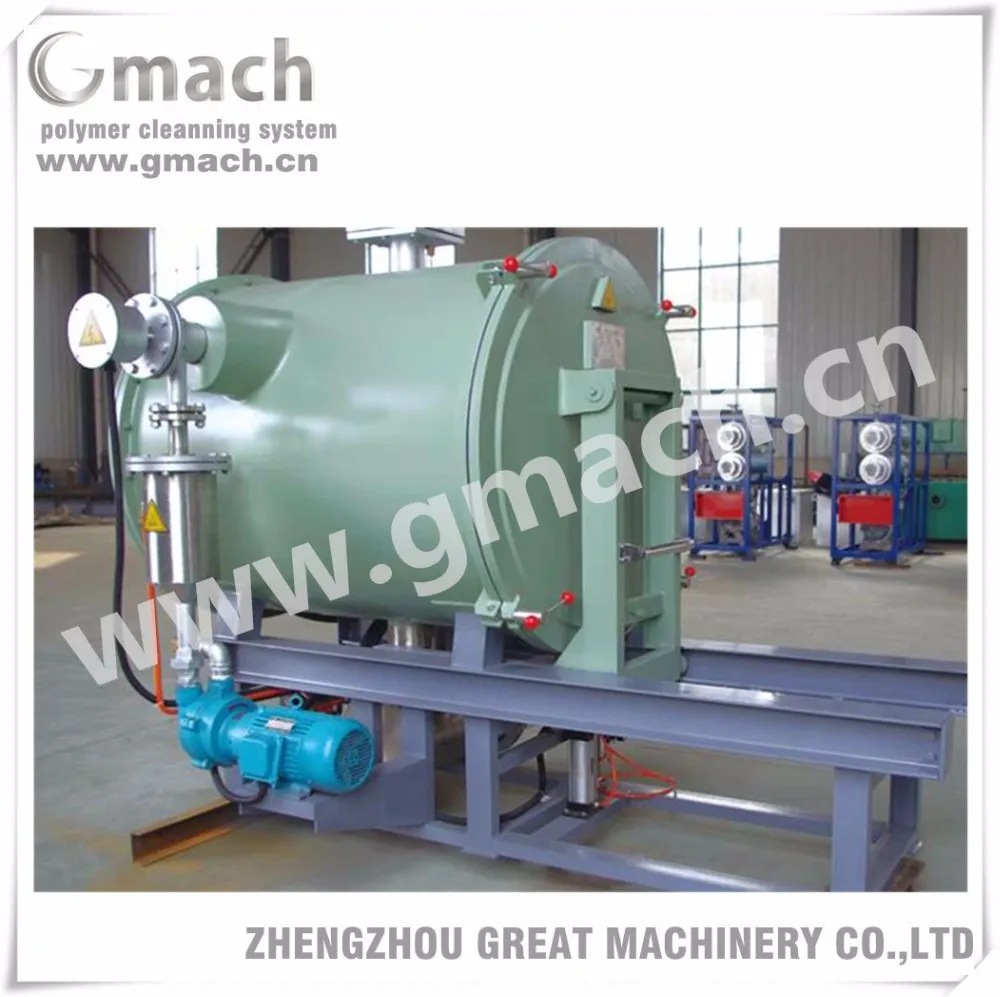

Filter cleaning machine
