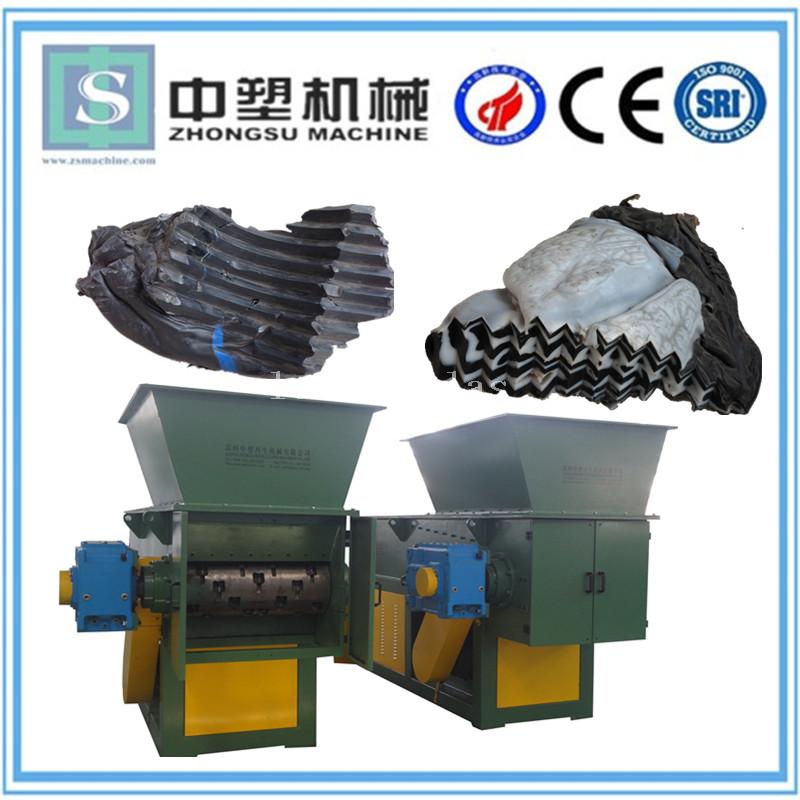

A. Features of Plastic single shaft shredder

1.Movable blade,dismounting convenience, easy for cleaning and maintenance.

2.Each rotary blade has four cutting edge, can be used again after rotating 90°.

3.Hvaing reducer with spindle,smooth operation, low noise, large rotating torque.

4.PLC control system,positive and negative turn automatically,running machine more safety.

5. Backfire treament after weldinging tank, dissolve weld stress.

6.Blade position apply precision machining,making sure the same space between each rotary knife and fixed knife.

7.Rotary blade position adopts embedded with high strength screw connected to blade spindle, can prevent the phenomenon that welding blade drop by long-term quake.

B. Specification of Single shaft shredder- - ZS900

Model ZS900
Main motor 37kw
Hydraulic motor 2.2kw
Bleads(fixed+rotary) 34 +1pic
Bleads material D2 (hrc58-60)
Running diameter 400mm
Roller length 800mm
Rotor speed 83rpm
Cyclinder travel length 900mm
Inlet size(mm) 800X1300
capacity 300-500kg/h for film , 500-700kg/h for lumps
