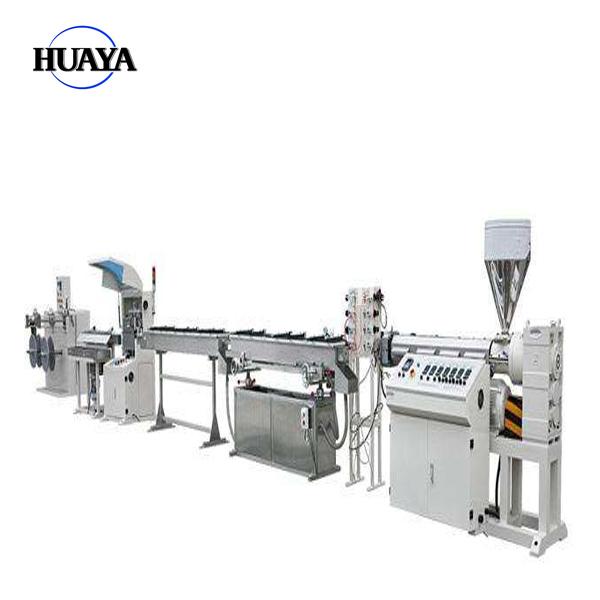

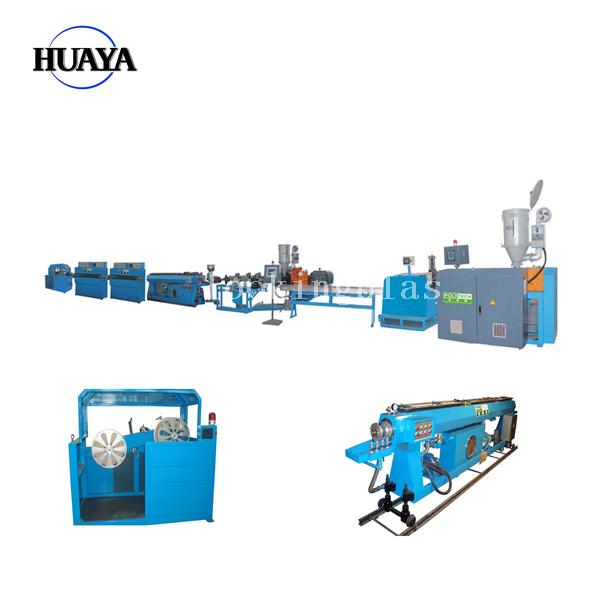

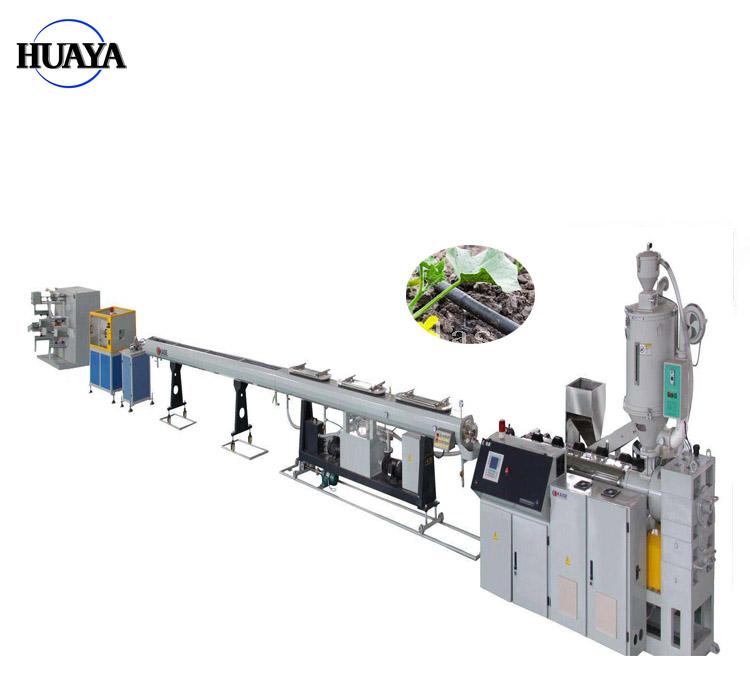

MACHINE COMPOSITION
1,Emitter automatic identification device
2,Emitter automatic transport device
3,Extruder
4,Vacuum sizing device
5,Cooling device
6,Caterpillar-tractor
7,Punching and detect device
8,Double station recoiling machine
MAIN TECHNICA PARAMETERS
production line speed | 30-80m/min |
emitter max. screening speed | 500pcs |
space between emitter | 100mm,200mm,300mm,400mm,500m,1000mm,1500mm |
emitter inlaid speed | ≥500pcs/min |
hauling speed | ≥100m/min |
punching speed | ≥300pcs/min |
SPECIFICATION
pipe diameter | 6mm | 10mm | 14mm |
wall thickness | 0.6mm |
tolerance | ±0.05mm |
diameter of emitter(mm) | 7 | 12 | 16 |
