inlaid cylinder drip irrigation pipe specification
pipe diameter | specification |
wall thickness | 6mm | 10mm | 14mm |
tolerance | 0.05mm |
diameter of emitter | 7mm | 12mm | 16mm
|
inlaid cylinder emitter drip irrigating pipe extruder description

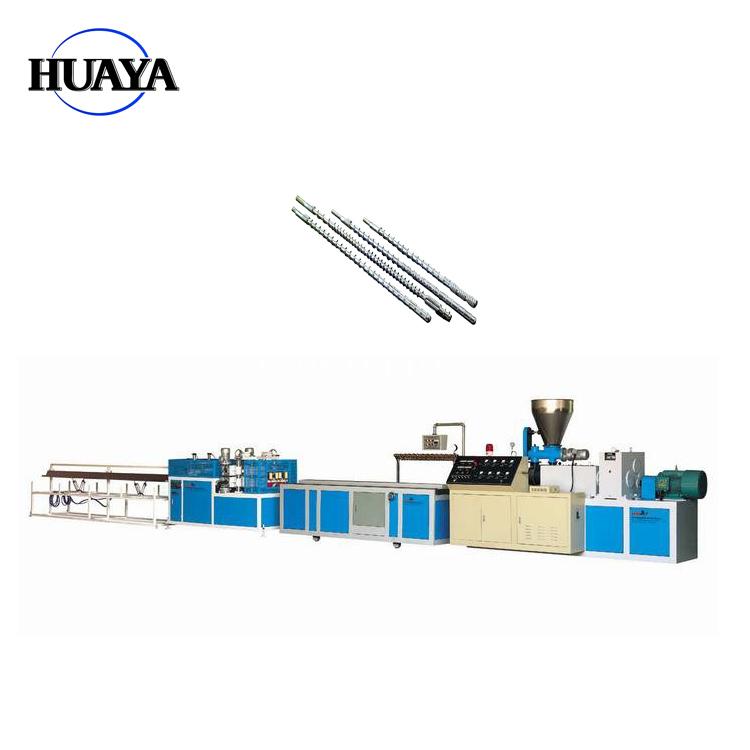

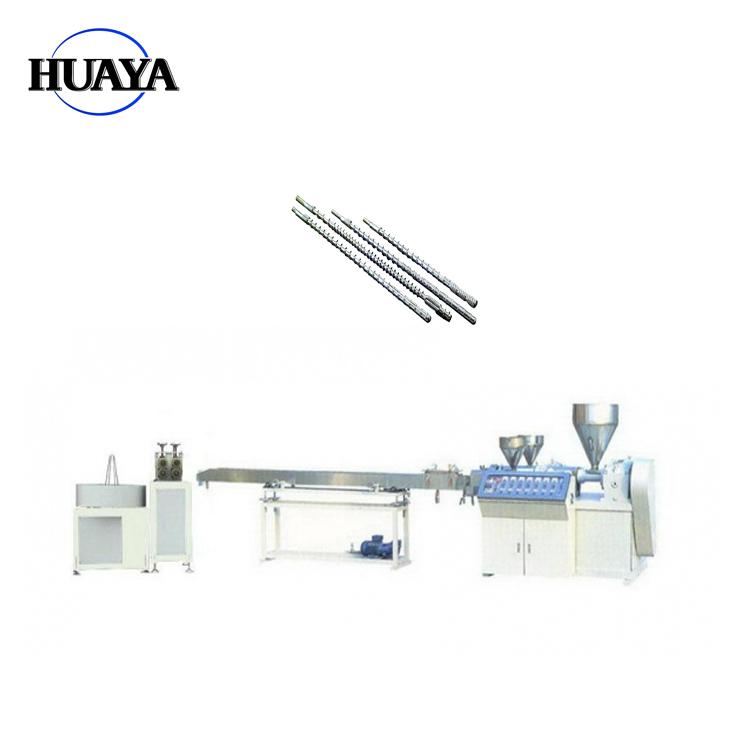

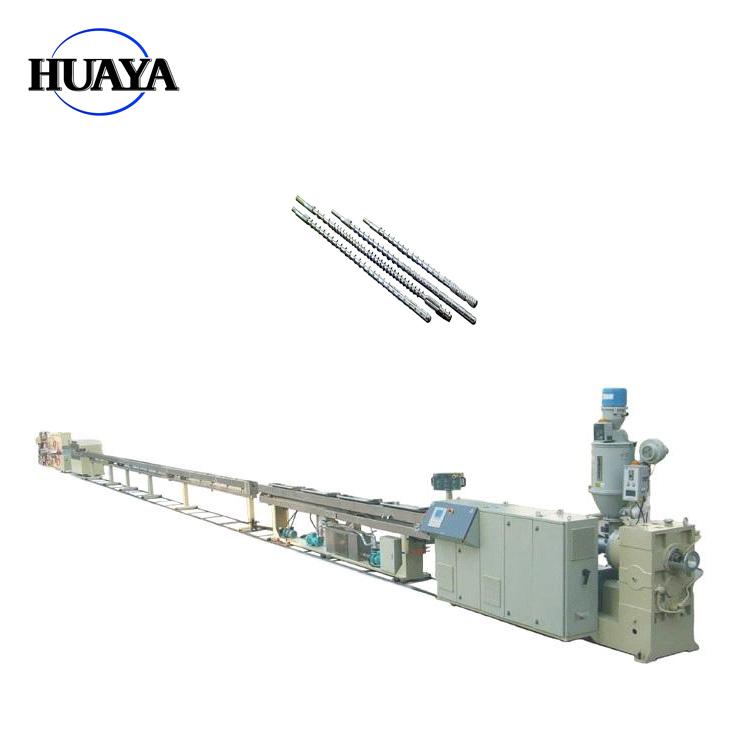

This production line is mainly used to prodcue all kinds of drip irrigation pipe, which are widely used in agriculture and construction water supply and drainage and cable laying. This production line is composed of conical (parallel) twin-screw extruder, headpiece, vacuum sizing device, traction machine, cutting machine and stacking device. The extruder and traction machine adopts frequency control. The traction machine can be with two, three, four, six, eight claws. This production line is equipped with cutter (saw web or planetary). The production line has reliable performance and high efficacy.
main technical parameters
model | sj-55/28 |

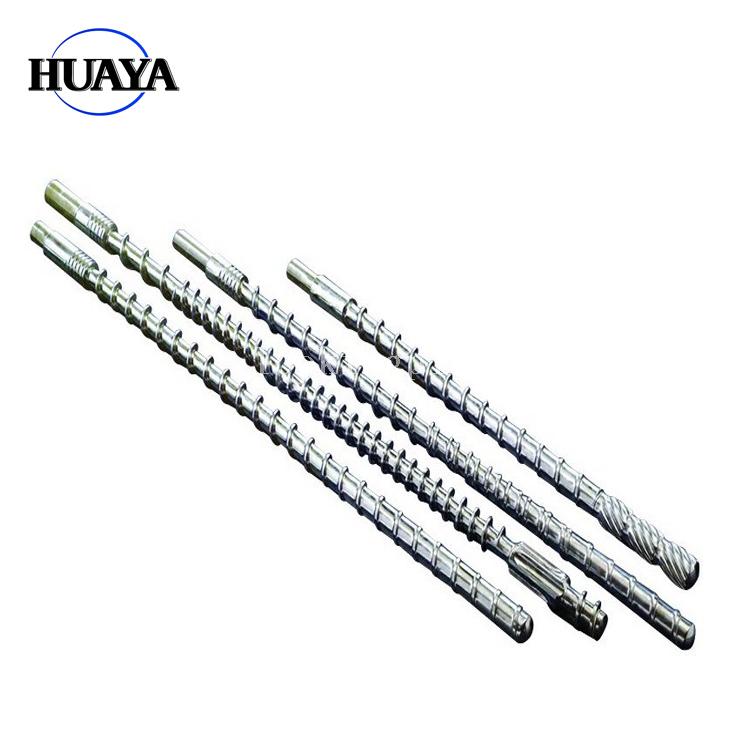

screw diameter | 55mm |
pipe diameter | 14mm |
wall thickness | 0.6mm |
l/d | 28 |
speed | 127rpm |
output | 95kg/h |
drive power | 18.5 |
heating | district:3 |
power:3 |
central height | 500 |
emitter max. screening speed | 500pcs
|
