Detailed description:
The utility model is widely used in the packaging of various kinds of powder materials, such as the grain storage, the transfer library, the dock and the port, etc.,
Typical materials available: flour, corn flour, soy flour, milk powder, etc..
The rice Grain ,Packaging of particulate matter
Main features:
The series of products using the material of its own weight and good fluidity properties, the arc door two times feeding way, the weighing method is simple
Accurate and stable measurement, plastic bags, kraft paper bags, woven bags and other packaging

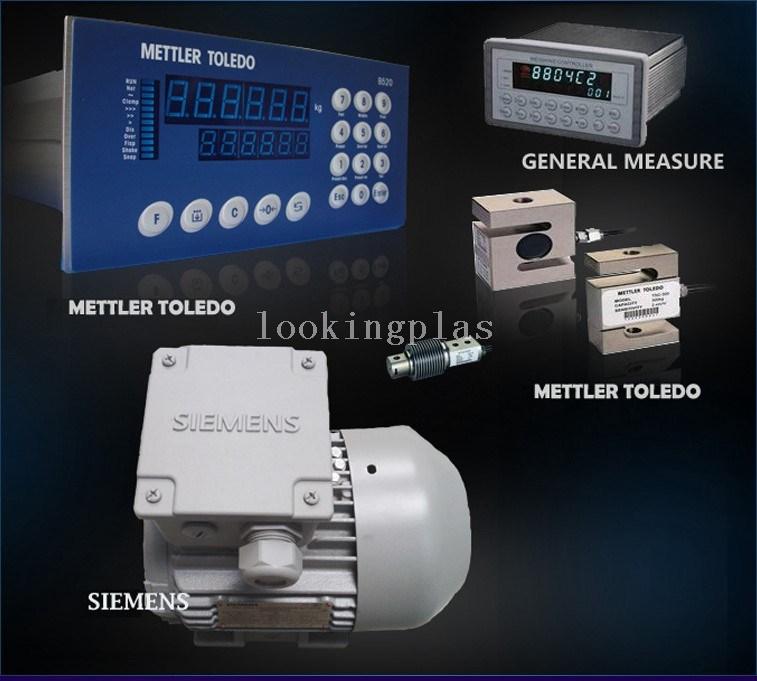

The use of high stability, high precision weighing sensor, weighing module, the interface is simple, intuitive display
Selection of domestic and international high-quality electrical components, ensure that the equipment is reliable and durable
Equipped with RS232 and RS485 interface, easy to expand
The scale has the advantages of firm structure, small occupation area, easy cleaning and maintenance
Can be equipped with an active return air dust collection device, clean dust, effectively maintain the site environment clean
Technical index:
Weighing range: 15-50 (kg/bag)
Quantitative error: + 0.2%FS
Packing speed: 200-260 (bags/hr) (depending on material characteristics, pocket size and size)
Working conditions:
Power supply: 380/220V, 50HZ (adjustable)
Power: 2.0KW
Gas source:0.4-0.6MPA
Temperature: -20-40ºC
Humidity: > 95% (no condensate)
The work flow:

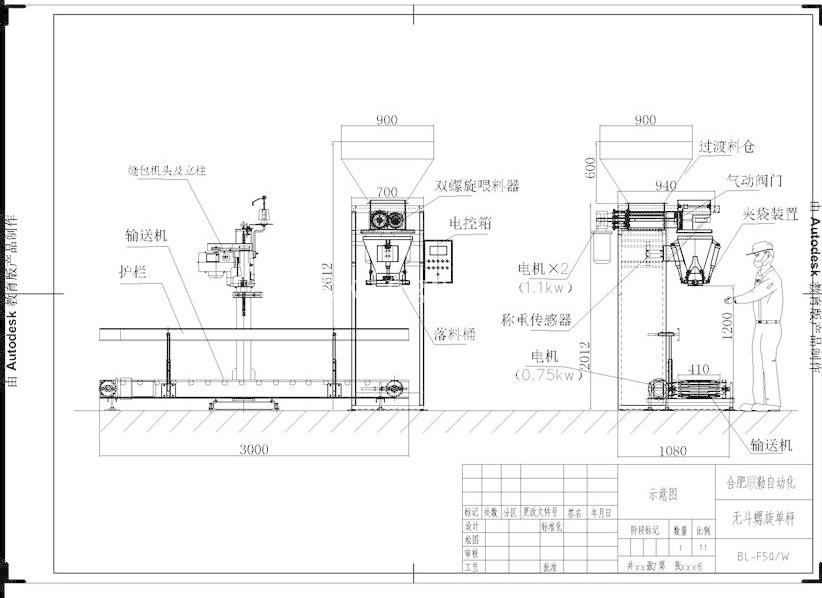

Artificial bagging, automatic weighing, bag clamping, filling, through the conveyor belt transmission or automatic sealing bag
The height of the sewing machine can be adjusted, which can be used for different packing bags.
Optional other matching mechanism:
Arch breaking device,
Sealing conveying device,
Vacuum pumping device
Inkjet printer,
Stacker,
Rewind shaping machine
The metal detector
Weight detecting machine
b,Technical parameters
| Model | Weighing range | Dividing value | accuracy | speed | power | supply |
| LLD-F50/W | 5-50kg | 10g | ≤0.2% | 3-6 Bag / min | AC380V
50-60HZ | 0.4-0.6Mpa |
Engineering requirements
The purpose of the exchange: AC380V 50HZ + 10%
In the scene to provide grounding resistance is less than 50:
According to the design and the number of packets can be fitted:
The properties of the material:Flour, corn flour, all kinds of powder ,fertilizer
The packing bag form: colorful bags
The single package weight: 5-50KG
The single package accuracy: + 0.2%
A single device packaging: 3-6 bag / min
The material selection: using 304 stainless steel.
The product selection:
according to the above requirements I recommend direction
