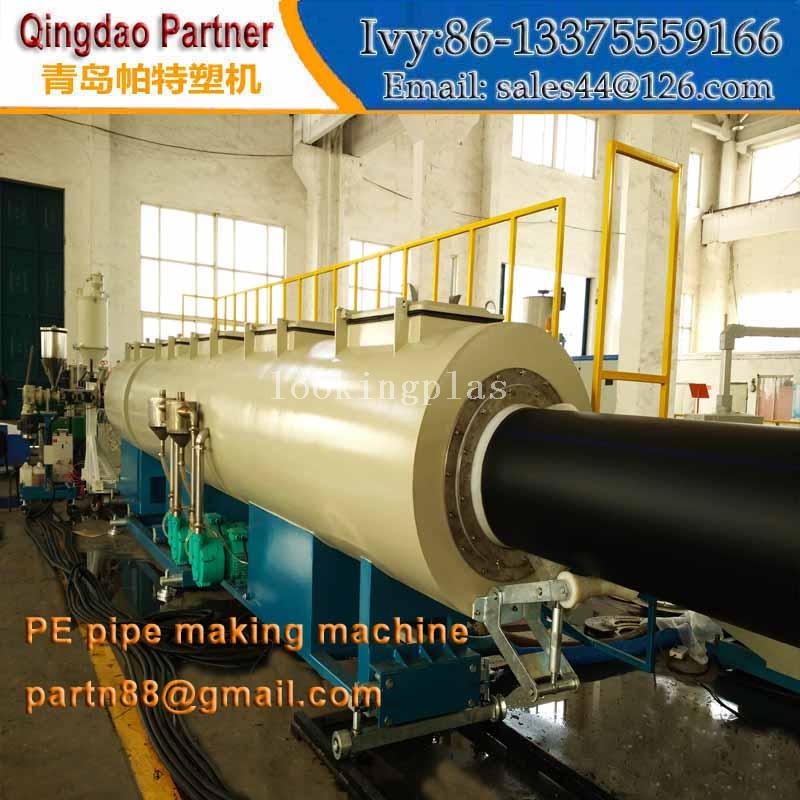

PE Supply Water/Gas Pipe Production Line
This machine is used for produce HDPE high pressure pipes, which is widely applied in municipal water supply and gas transmission fields, there is large market demand, thus the HDPE pipe extrusion production line is the most popular plastic extrusion machine.
♦ Features:
BM screw ensures high prevision, low energy consumption, extrusion is stable and large.

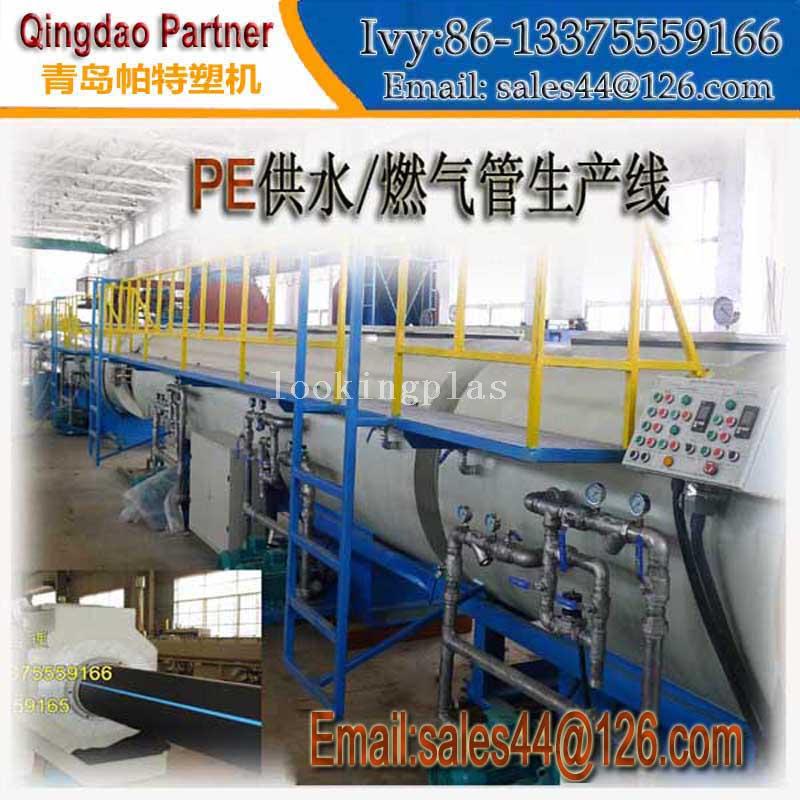

Two-grade vacuum cooling calibrating system with high speed and negative-pressure. Water temperature and level can be auto-controlled. Spraying system with high intensity ensures the even cooling of pipes.
Caterpillar haul-off unit is stable running, linked with extruder and controlled by PLC system.

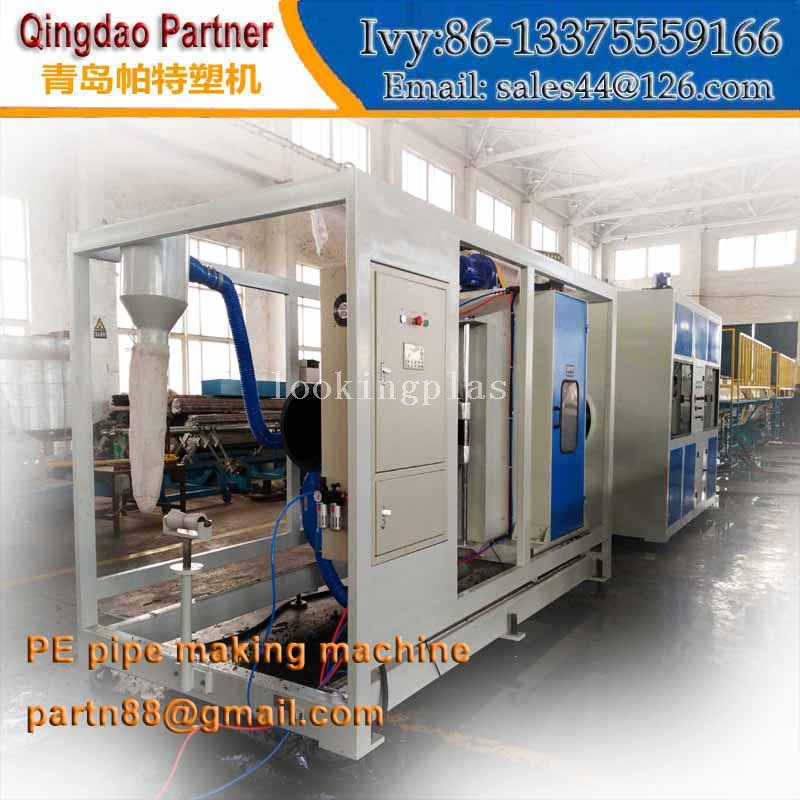

Planetary cutter ensures low noise and strong scrap absorbing device ensures a clean working condition.
Technical Parameter for High output
型号
Model | 口径范围
Pipe Range | 挤出机型号
Extruder Model | 功率
Power | 最大挤出量
Max. capacity |
DSG-63 | 20-63mm | DHS-65-34 | 140kw | 240kg/h |
DSG-160 | 50-160mm | DHS-80-34 | 220kw | 360kg/h |
DSG-250 | 75-250mm | DHS-80-34 | 230kw | 360kg/h |
DSG-400 | 160-400mm | DHS-100-34 | 340kw | 580kg/h |
DSG-630 | 315-630mm | DHS-120-34 | 490kw | 800kg/h |
DSG-800 | 500-800mm | DHS-150-34 | 650kw | 1000kg/h |
DSG-1000 | 630-1000mm | DHS-150-34 | 750kw | 1000kg/h |
Technical Parameter for common output:
