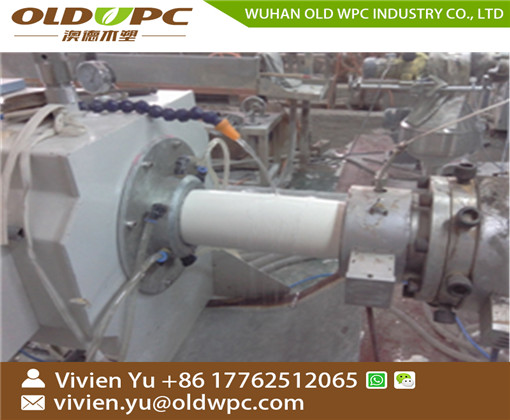

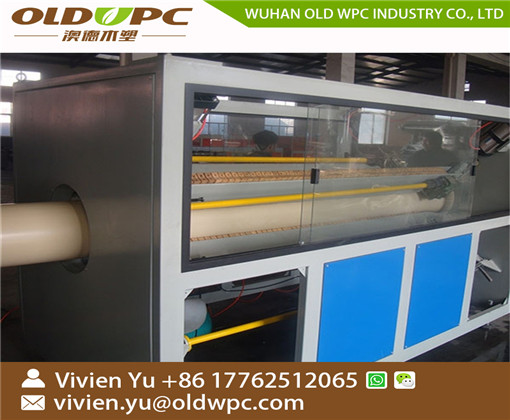

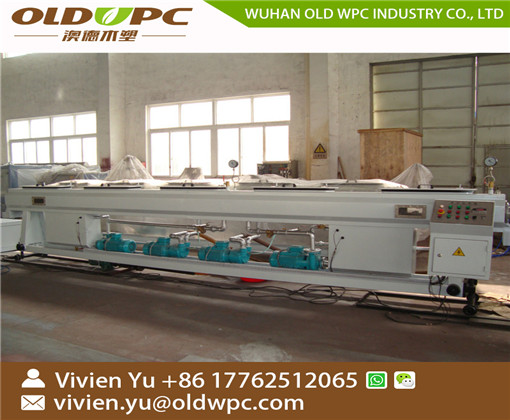

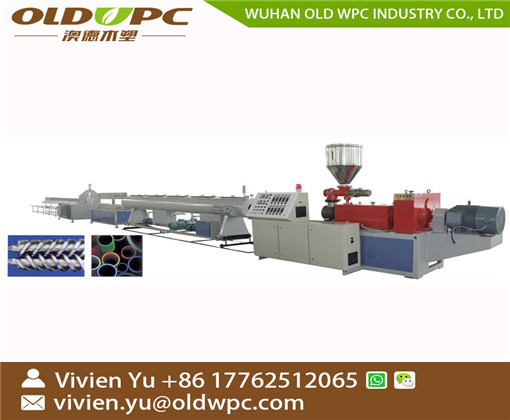

PVC single pipe (1 in 1) extrusion line is made of a 51 or 65 or 80 conical twin screw extruder, one set of 1 in 1 mould, one set of calibration table , haul-off & cutter (dust free) and stacker.The diameter of the best production tube isfrom16mm to 63mm or 75mm to 160mm, 200-450mm.
Main features: high capacity, low power consumption, low water gas consumption, low occupation, low noise, low dust, etc
type | pipe dia | extruder | max. output | max.line speed | machine length |
PVC-1-63 | 16-63mm | CTS51 | 180kg/h | 6m/min | 20m |
PVC-1-160 | 75-160mm | CTS65 | 250kg/h | 5m/min | 23m |
PVC-1-400 | 200-400mm | CTS80 | 450kg/h | 4m/min | 25m |
PVC-1-450 | 200-450mm | CTS92 | 650kg/h | 2m/min | 30m |
