Product Overview:

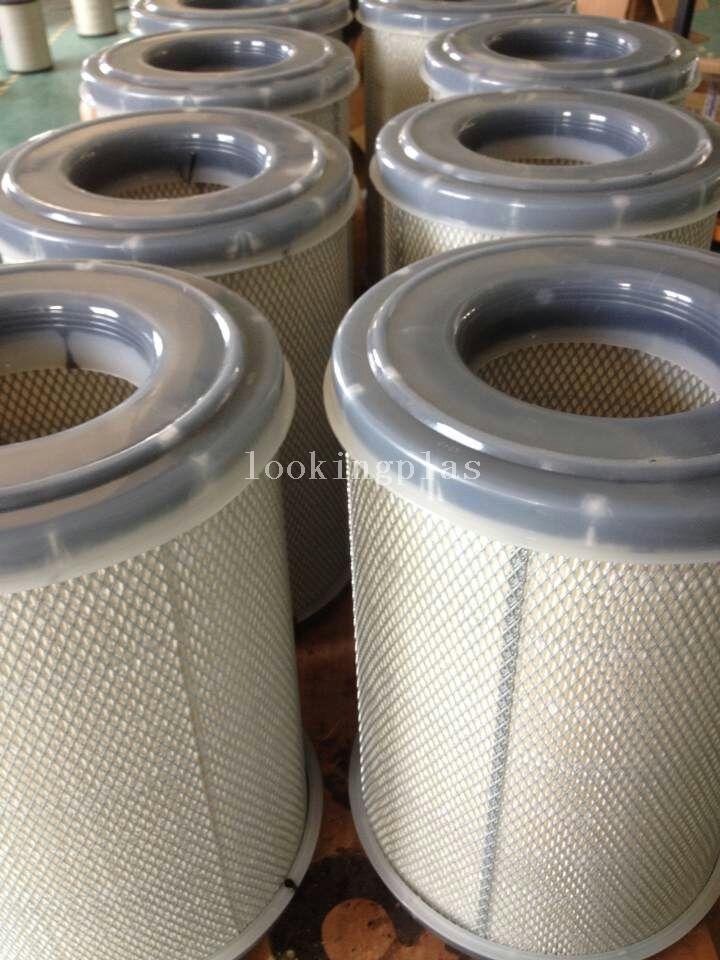

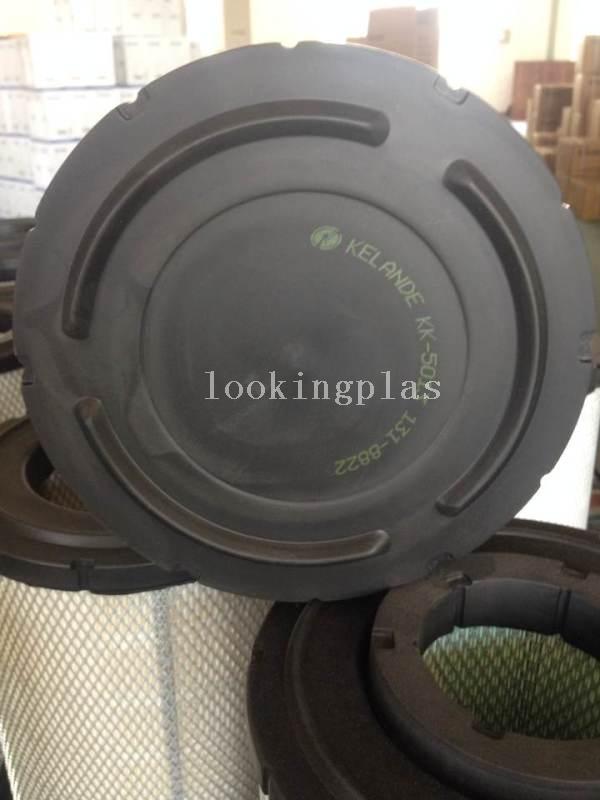

Air filter is one of three filters which are indispensable for internal combustion engines.With fast development of cars industry, taking polyether low density microporous elastomer as the air filter and cover is adopted excessively by car industry. The filter gasket casting machines manufactured by our company have the features of easy operation, convenient maintenance, high automation and stable performance .
Characteristics:
Operation controlled by computer
Automatic Casting and cleaning
Accurate metering and stable pressure
Two-dimensional worktables, fit for casting of square, round, abnormal and other irregular air filters and covers.
Technical Parameters:
| ITEM |
|
|
|
| Model No. | PU20-1 | PU20-2 | PU20-3 |
| Output | 4-12 g/sec | 8-30 g/sec | 17-60 g/sec |
| Max. machining dimension L*W | 400×300mm | 500×400mm |
|
| Round max diameter | 350mm | 500mm | 500mm |
| Total power | 10KW |
| Power supply | 380V |
| Compressed Air | ≥0.6MPa |
| Weight | 550kg |
| Rotated speed | 6000 r/min |
| Mix type | dynamic mix |
| Material bucket volume | 40L-150L |
| Mix scope | B:A=25-50:100 |
| Metering accuracy | ±0.5% |
