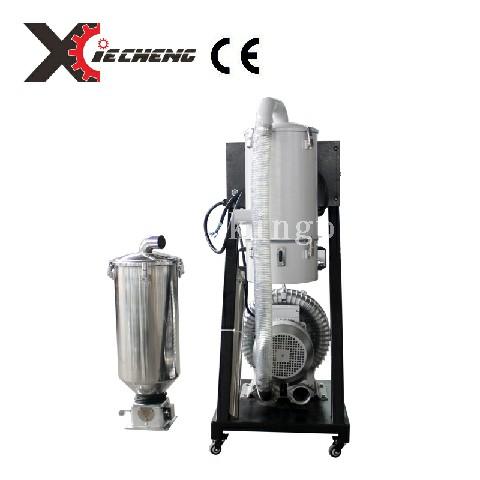

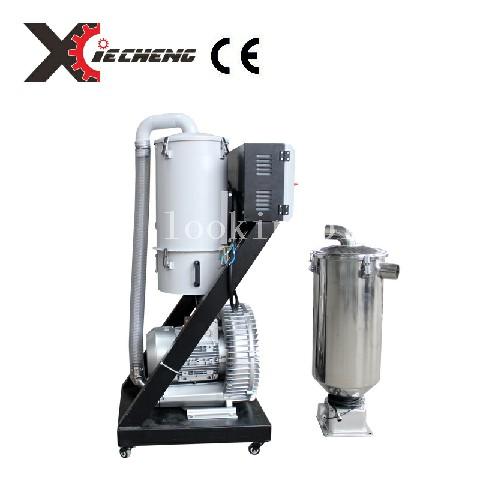

Vacuum hopper auto loader with 7.5HP
1. Specially designed for material of large quantity;
2. High power motor with alarm for overload an lack of material;
3. Small footprint, easy to operate;
4. With CE authentication.
It
conveys plastic granules to the injection moulding machine with ease.
It is easy to operate and its filter system makes it possible to be used
for a long time. An independent filter device facilitates dust removal
and noise reducing installations for silent operations.
The
machines are available in conveying capacity ranges of 300Kg/hr. Vacuum
Auto-Loader, has found a large number of users swear by the qualitative
parameters of this product.
For more details, welcome to visit our website: http://www.jmxiecheng.com/en/introduce.html
Specifications
| Model | XC-XF1.5HP | XC-XF3HP | XC-XF5HP | XC-XF7.5HP |
| Power(Hp) | 1.5 | 3 | 5 | 7.5 |
| Conveying capacity(kg/h) | 450 | 300~500 | 500~800 | 800~1000 |
| Loading distance(m) | 4 | 5 | 6 | 5 |
| Static wind pressure(mm/H2O) | 1800 | 2400 | 3000 | 3000 |
| Conveying tube inner dim(mm) | 51 | 51 | 63 | 63 |
| Attached hoses | φ51mm*4m*2 | φ51mm*10m*1 | φ63mm*15m*1 | φ63mm*5m*1 |
| Dimension of Main Unit(mm) | 370*420*1130 | 420*370*1130 | 580*600*1020 | 980*650*1200 |
