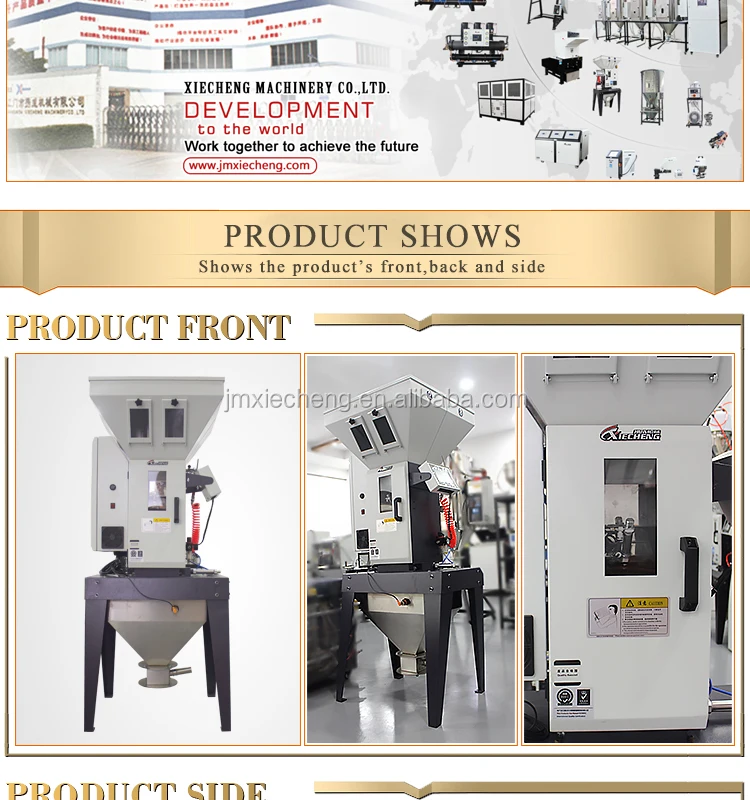

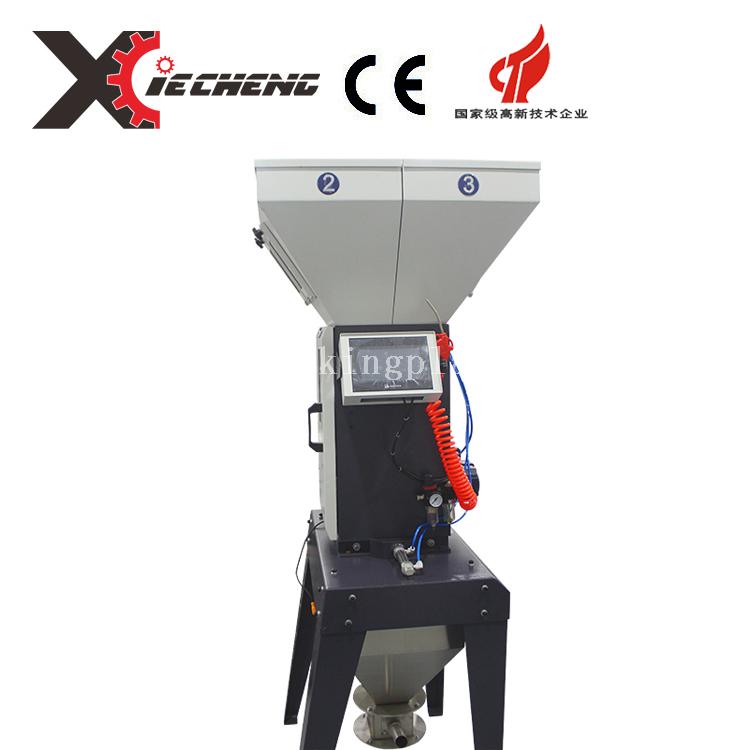

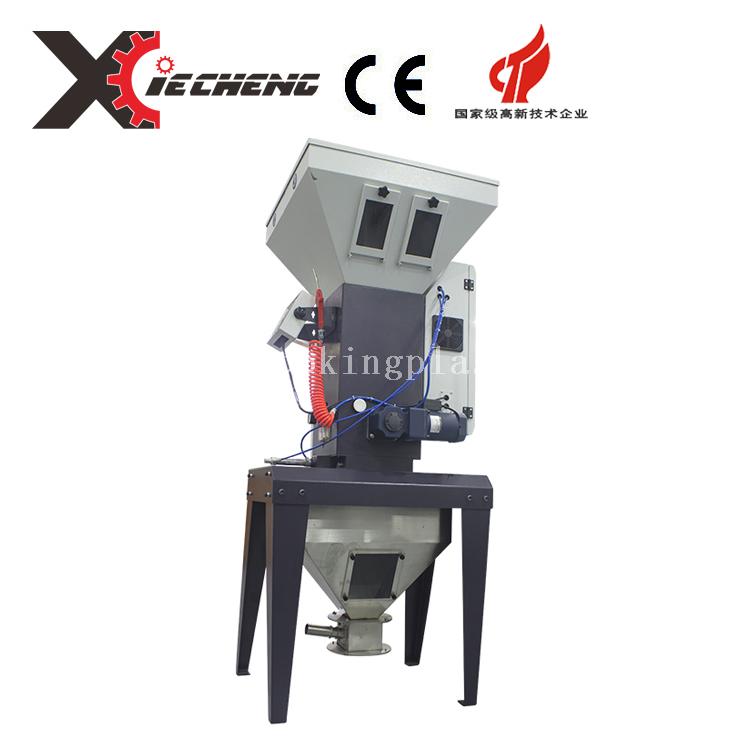

plastic granule automatic mixer gravimetric blender for 4 ingredients
XGB

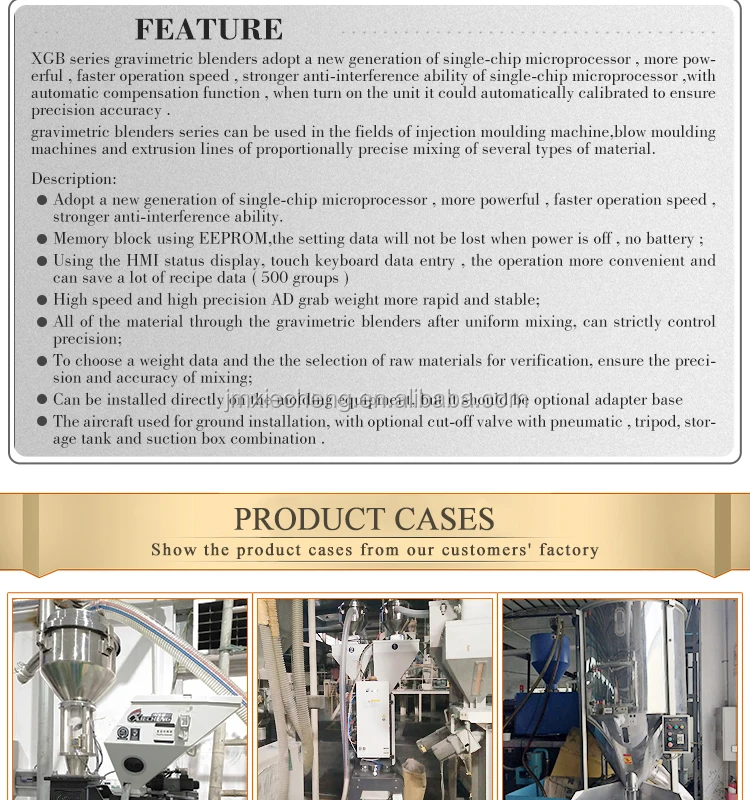

series gravimetric blenders adopt a new generation of single-chip
microprocessor , more powerful , faster operation speed , stronger
anti-interference ability of single-chip microprocessor ,with automatic
compensation function , when turn on the unit it could automatically
calibrated to ensure precision accuracy .
gravimetric
blenders series can be used in the fields of injection moulding
machine,blow moulding machines and extrusion lines of proportionally
precise mixing of several types of material.
Description:
1,
adopt a new generation of single-chip microprocessor , more powerful ,
faster operation speed , stronger anti-interference ability.
2, Memory block using EEPROM,the setting data will not be lost when power is off , no battery ;
3,Using

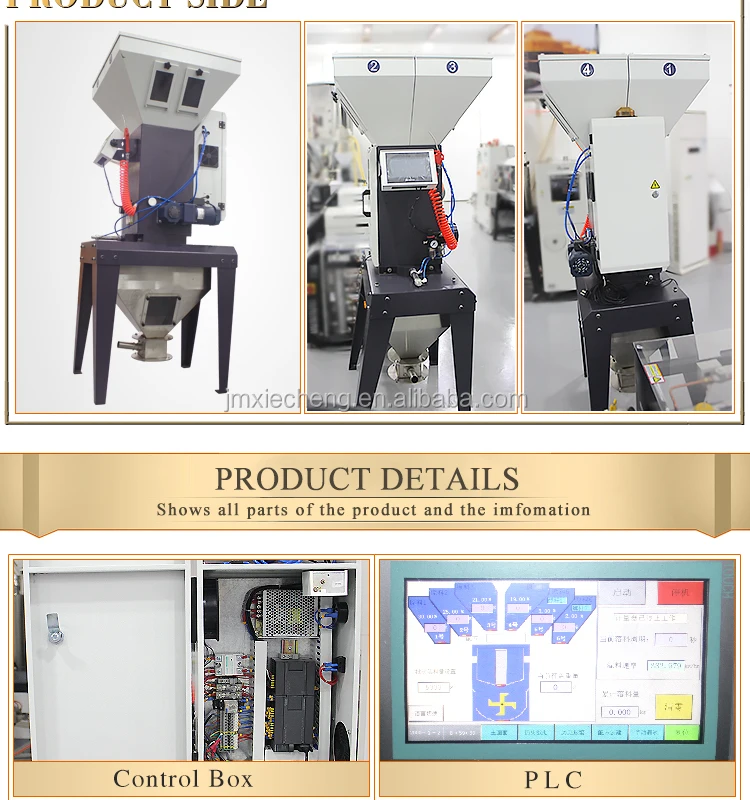

the HMI status display, touch keyboard data entry , the operation more
convenient and can save a lot of recipe data ( 500 groups )
4,High speed and high precision AD grab weight more rapid and stable;
5,All of the material through the gravimetric blenders after uniform mixing, can strictly control precision;
6,To choose a weight data and the the selection of raw materials for verification, ensure the precision and accuracy of mixing;
7,Can be installed directly on the molding equipment, but it should be optional adapter base
8,The
aircraft used for ground installation, with optional cut-off valve with
pneumatic , tripod, storage tank and suction box combination .

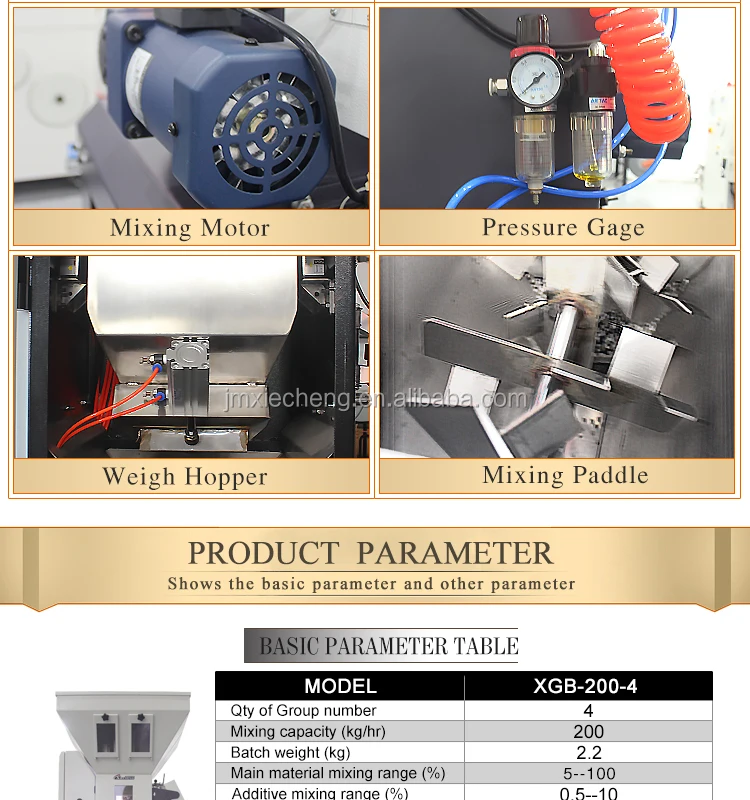

Specification
| Model | XGB-40- | XGB-80- |
| 4 | 4-1R | 4-2R | 4-3R | 3 | 3-1R | 3-2R | 2 | 2-1R | 4 | 4-1R | 4-2R | 4-3R | 3 | 3-1R | 3-2R | 2 | 2-1R |
| Group number | 4 | 3 | 2 | 4 | 3 | 2 |
| Knife metering quantity | 4 | 3 | 2 | 1 | 3 | 2 | 1 | 2 | 1 | 4 | 3 | 2 | 1 | 3 | 2 | 1 | 2 | 1 |
| Screw metering quantity | – | 3 | 2 | 1 | – | 2 | 1 | – | 1 | – | 3 | 2 | 1 | – | 2 | 1 | – | 1 |
| Maxmum batch quantity (kg) | 0.6 | 1.5 |
| Compress Air (kg/m²) | 5–6 | 5–6 |
| Mixing motor power (kw) | 0.09 | 0.2 |
| Maximum output (kg/hr) | 40 | 40 | 35 | 30 | 50 | 50 | 45 | 60 | 55 | 80 | 80 | 65 | 50 | 90 | 90 | 70 | 140 | 120 |
| Machine voltage specification | 1Φ,230V,50Hz | 1Φ,230V,50Hz |
| Model | XGB-200- | XGB-600- |
| 4 | 4-1R | 4-2R | 4-3R | 3 | 3-1R | 3-2R | 2 | 2-1R | 4 | 4-1R | 4-2R | 4-3R | 3 | 3-1R | 3-2R | 2 | 2-1R |
| Group number | 4 | 3 | 2 | 4 | 3 | 2 |
| Knife metering quantity | 4 | 3 | 2 | 1 | 3 | 2 | 1 | 2 | 1 | 4 | 3 | 2 | 1 | 3 | 2 | 1 | 2 | 1 |
| Screw metering quantity | – | 3 | 2 | 1 | – | 2 | 1 | – | 1 | – | 3 | 2 | 1 | – | 2 | 1 | – | 1 |
| Maxmum batch quantity (kg) | 2.8 | 8 |
| Compress Air (kg/m²) | 5–6 | 5–6 |
| Mixing motor power (kw) | 0.2 | 0.37 |
| Maximum output (kg/hr) | 200 | 200 | 180 | 160 | 220 | 220 | 160 | 350 | 240 | 600 | 600 | 520 | 500 | 650 | 650 | 500 | 1000 | 700 |
| Machine voltage specification | 1Φ,230V,50Hz | 1Φ,230V,50Hz
|
....
