Automatic Complete small PET Bottle Natural Juice filling capping machine High temperature sterilization hot filling
Product Description
Application:
1.The series equipment is used in hot filling and sealing of green tea, black tea, wulong tea and fruit juice drink.
2.The machine integrates washing, filling, capping together. The design is scientific and reasonable. Its appearance is beautiful. Its operation and maintenance is convenient.
3.The automation is high. It is good equipment for choosing hot drink filling machine.
4.The machine is adopt block bottle-neck hanging work state design,and be adopt filling valve rise-drop design; It's be satisfy for 95°C hereinafter hot filling technology demand; It's adpot person-machine interface touch-screen, PLC,transducer etc advanced control technology.
5.It's osculant the drink material parts are adopt the SUS304 stainless steel, The machine main motor, reducer, mostly axletree, pressurize parts and electricity ware element, gas drive element etc are adopt famous international manufacturer products.
Main Technical Data:
Model | RCGF12-12-6 | RCGF16-16-6 | RCGF18-18-6 | RCGF24-24-8 | RCGF32-32-8 | RCGF40-40-10 |
Production Capability(b/h)(500ml) | 3000 | 4000 | 5000 | 8000- 10000 | 10000-12000 | 13000- 15000 |
Applicable Bottle Type | (Bottle Diameter)Ø50- Ø100mm; (Height)150-320mm;(Volume)330-1500ml |
Applicable Cap Shape | (Plastic Screw Cap) |
Gas Source Pressure(Mpa) | 0.6 |
Gas Consumption(m³/min) | 0.2 | 0.2 | 0.4 | 0.4 | 0.5 | 0.55 |
Total Power(kw) | 4.6 | 4.6 | 5.4 | 6.4 | 8.07 | 9.56 |
Total Weight(kg) | 2500 | 3200 | 3800 | 5200 | 6500 | 8000 |

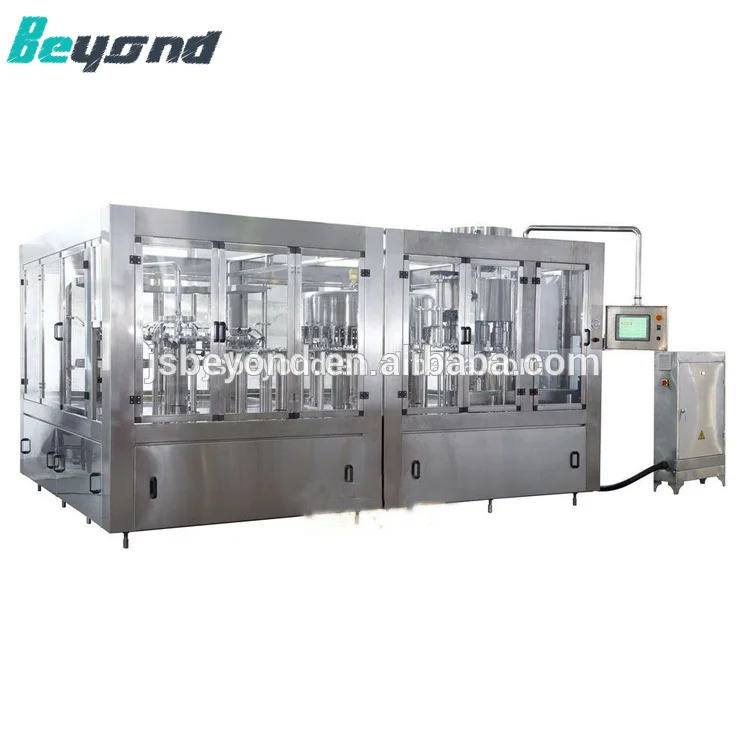

Photo:
Related Products
Our company's products are varied,following are our Hot Products!Click it!
Company Information
ZHANGJIAGANG BEYOND MACHINERY CO., LTD. is a group company located in Sanxing Industrial Park, Zhangjiagang City, Jiangsu Province, China.
For beverage machine, our main products including:
*The capacity of 2000-- 30000 BPH for juice and tea hot filling producing line.
*The capacity of 2000 -- 30000 BPH for mineral water and purified water producing line.
*The capacity of 2000 -- 30000 BPH for carbonated beverage and cold filling producing line.
*The capacity of 1000 – 8000 BPH for vinegar and alcohol and oil producing line.
*The capacity of 100 -- 2000 BPH for 1 and 3 and 5 gallon barrel producing line.
*The capacity of 2000 -- 10000 BPH for soybean milk and peanut milk and other plants protein drink producing line.
*2~20T/H water treatment equipment(mineral water and pure water).
*PET perform inject and blowing-stretching machine.
Relevant equipments: Bottle unscrambler/Full bottle overturn sterilizer/Concentrating equipment/Plate and tube UHT device/CIP system/Labeling machine/Auto film shrinking packing machine.
We carry a strict quality management system in accordance with ISO9001 requirements. We have established a complete processing line including design and manufacture and sale and after sale service. Our products are well sold around the world.
Please be free to contact us for more information and we are ready for making business relations with you in the near future.
FAQ
Q:What are you main products?
A:Zhangjiagang Beyond Machinery Co., Ltd. is a 12-year-old manufacturer specializing in the production of beverage filling machinery and equipment. We have been certificated by the famous cercification authority.
The products include: beverage filling machiner,hot filling production line, Pure water filling machine, pure water production equipment, oil filling machine; beer can(bottle) filling machine;milk filling production line, 5 gallon filling production line , carbonated soft drink production line , big bottle water filling production line , three-in-one filling machine, beverage equipment, etc.
Similiar equipments contain water treatment plant ,PET bottle blowing machine,bottle unscramber machine,labeling machine,packing machine,sterilizer,date printer,etc.
We can help you to start a new company in beverage production line .we make all of our customers be satisfied with the machine and our service.Any question about this machine or our factory ,please contact us ,sincerely serve for you .
Q:How can I install my machine when it arrives?
A:We will send the engineers to install and test the machines and have training lessons abroad, but the Visa fee, round tickets, accommodation, eating, and the allowance of 80USD per day per person will be on customer's side.
Or the customer can send the engineer to our company to complete the inspection of the goods, as well as the installation and training lessons ,but the Visa fee, round tickets, accommodation, eating, and the allowance will be paid by customers .
Q:How can l get some samples?
A:We have no sample.we will send you more pictures and video about this machine,and welcome to visit our factory to see the machine running in the factory.
Q:How about the quality of your products.
A:Our company guarantees that the products provided are brand new, unused, with the latest design and suitable materials, and comply with the quality, specification and performance of the contract in all respects.
Q:What's the delivery time?
A:7-45 days after the T/T deposit or L/C.(The premise is to receive customer’s samples and deposit).
Q:What about Product’s material and configuration use?
A:304 stainless steel, the machine frame material is iron. According to customer requirements, 316 stainless steel is available , complete machine stainless steel, and customers demand specified configuration.
