PET bottle water filling machine
General description

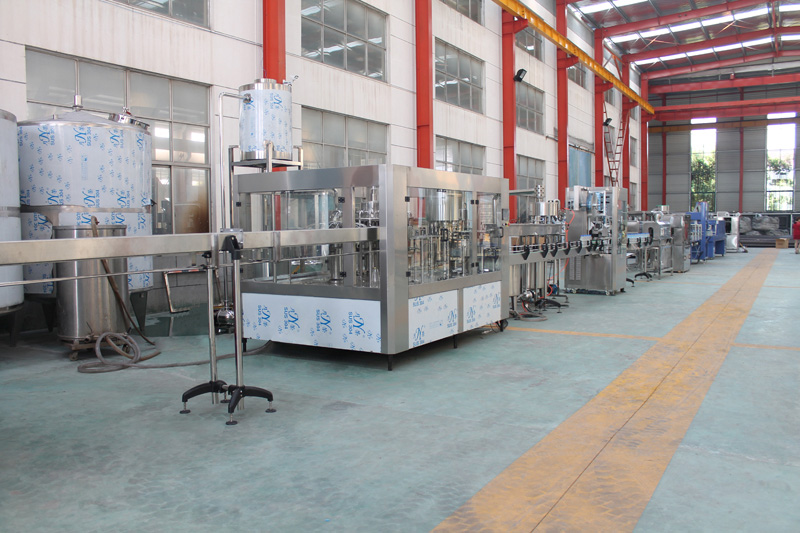

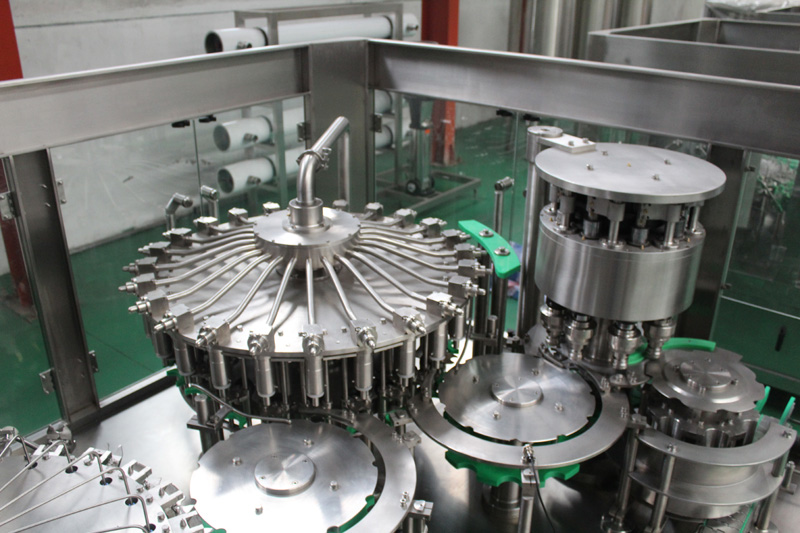

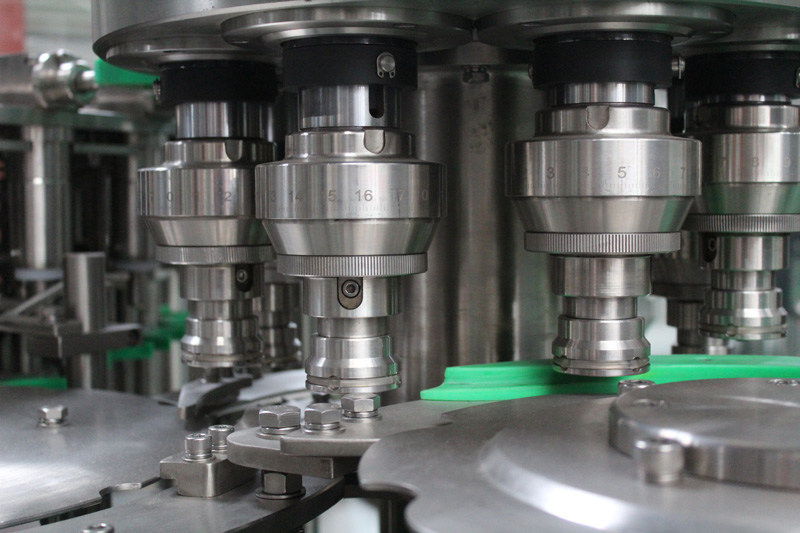

PET Water Filling Equipment: The series of products are the integrated rinsing, filling and capping machine, mainly suitable for producing the bottled mineral water, pure water, fruit juice, and wine and so on. CGN series mineral water filling machine are integrated mono-block rinser/filler/capper are suitable for mineral water and purified water bottling. The speed can be from 3000 BPH 36, 000 BPH (refer to 500 ml PET bottles). Gravity filling and magnetic constant torque capping technology are utilized.
Main features
Rinser
This machine adopts rotary washing method, mainly used for water new bottle rinsing purpose, and then sent the bottles to filling part.

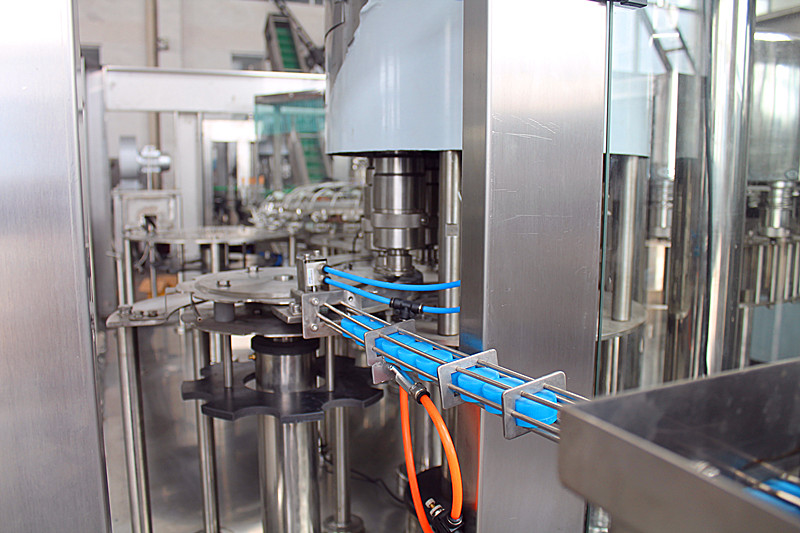

PET bottles enter the machine by distributing bottle star wheel, and making the bottle mouth adown with clamp pincers and overturning device by grip the bottles mouth. After sanitary water rinse and drain, automatically turn to the bottle up, bottle after a star wheel conveyor to the filling machine. Mainly parts of equipment structure, washing media material, external protect frame are high-quality stainless steel, open-gear transmission.
Into-water pipes has pressure meter. Washing machine has water defrosting tray for recycling washing water. Washing water capacity per bottle is 105ml/s
Technical parameters
Model
(CGN) 16-12-6 18-18-6 24-24-8 32-32-10 40-40-12 50-50-15 60-60-15 72-72-18 80-80-20
Production capacity (600ml)
(bph) 3000 6000 10000 14000 18000 24000 30000 36000 40000
Filling accuracy ≤ ± 5mm
PET bottle size (mm) Bottle diameter φ 50-φ 92 Height 150-320
Cap
Shape Plastic cap
Rinsing with water pressure (Mpa) 0.2-0.25
Wash bottles water consumption (kg/h) 800 1600 2500 3500 4000 4500 6000 7500 8000
Air pressure (Mpa) 0.4
Air consumption (m3/min) (0.6Mpa) 0.2 0.2 0.25 0.3 0.3 0.3 0.4 0.5 0.5
Motor power (kw) 2.57 3.37 4.37 5.87 5.87 7.87 11.37 15.37 15.37
Weight (kg) 3500 4500 6000 7000 8000 9500 13000 15000 16000
Dimension (L*W*H) (mm) 2200× 1600× 2700 2500× 2000× 2700 2800× 2300× 2700 4000× 2450× 2850 4400× 2800× 2850 5350× 3400× 2850 5000× 5000× 3000 7100× 6250× 3000 7700× 6750× 3000
Main composition
Description Supplier
PLC Mitsubishi, Siemens
Touch screen Mitsubishi, Siemens, PROFACE
Frequency converter Mitsubishi, Siemens, Danfoss
Air switch Schneider
Breaker Siemens
Contactor Siemens
Photoelectric switch Omron, Keyence, P+F
Approach switch Truck
Main bearing NTN
Lubrication bearing IGUS
Sealings Sealtech
Pneumatic components Camozzi
