PET Bottle Crushing & Washing Line
According to the final usage of PET flakes, PET recycling and washing system divides into 4 categories:
1. Bottle to bottle grade, PET bottles recycling and washing line
2. Yarn/filament grade, PET bottles recycling and washing line
3. PSF grade, PET bottles recycling and washing line
4. Regular grade, such as strapping, brusher making, etc., PET bottles recycling and washing line
Features:
1. Recycled material: Total impurity content ≤320PPM; Moisture content≤2%
2. Production Capacity: 300-1000Kg/h ( But if lower than 500Kg/h, there will be no label remover machine, as the lowest capacity for label remover is 500Kg/h.).
3. Note: We can design the machines exactly according to Customers' requirements. If want to know the details for this machine, just feel free to contact us, send us your inquiry.
Post-consumer PET bottles are doubtless among the most important components of the recycling market.Recycled PET may be used in a wide variety of final applications, with very interesting and remunerable financial returns for the recycling companies.
As the quality of the collected PET bottles varies significantly from country to country, and even within the same country, and as their conditions can be very bad, it is necessary to be continuously updated on the technologies and technical solutions of PET recycling,in order to correctly process the most difficult and contaminated materials and reach the best final quality.
QINGCHENYU Machinery,thanks to its worldwide experience in the field of PET bottle washing line and recycling line, can provide its customers with proper technical solutions and state-of-the art recycling technologies, delivering a response tailored to the frequently changing needs of its customers and of the market.

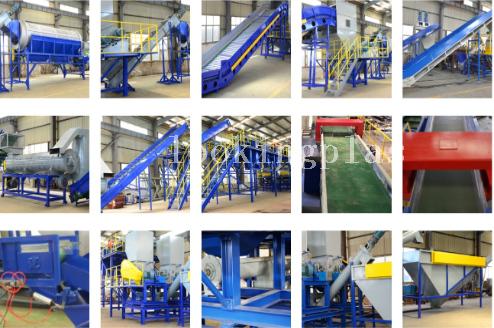

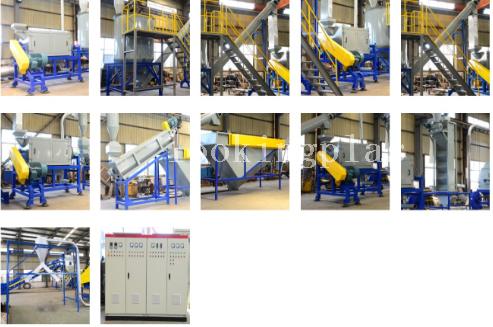

| No. | Name | Qty. |
| 1 | Metal chain conveyor (sink into the ground) | 1 |
| 2 | De-baler | 1 |
| 3 | Double screw loader(with silo) | 1 |
| 4 | Trommel | 1 |
| 5 | Belt conveyor | 1 |
| 6 | Label remover | 1 |
| 7 | Belt conveyor | 1 |
| 8 | Steel table | 1 |
| 9 | Manual sorting table | 2 |
| 10 | Metal detector + automatic separation device | 2 |
| 11 | Crusher | 2 |
| 12 | Horizontal screw conveyor | 1 |
| 13 | Screw loader | 1 |
| 14 | Floating washer ( with sliding ladder) | 1 |
| 15 | High speed de-watering machine | 1 |
| 16 | Steam washer (Including working platform) | 1 |
| 17 | Screw loader | 1 |
| 18 | High speed de-watering machine | 1 |
| 19 | Steam washer (Including working platform) | 1 |
| 20 | Screw loader | 1 |
| 21 | High speed de-watering machine | 1 |
| 22 | High speed friction washer | 1 |
| 23 | Floating washer | 1 |
| 24 | Floating washer | 1 |
| 25 | Centrifugal dewatering machine | 1 |
| 26 | Zig-zag label blower | 1 |
| 27 | Silo | 1 |
| 28 | Electric cabinet | 2 |
Spare parts list
| Item | Name | Quantity | Price(USD) |
| 1 | Bearing for belt conveyor | 6pcs | FREE |
| 2 | Tungsten steel blade of label remover | 15pcs |
| 3 | Belt of label remover | 1 piece |
| 4 | Belt of crusher | 1 piece |
| 5 | Crusher screen | 1piece |
| 6 | Screw for crusher blade press | 50pcs |
| 7 | Chain for screw feeder | 1piece |
| 8 | High speed friction wash belt | 1pcs |
| 9 | High speed de-watering machine belt |
|
| 10 | Contactors which is less than 15am | 2pcs |
| 11 | Relay which is less than 15am | 2pcs |
| 12 | Maintenance tool | 1set
|
