Application:
High efficiency PPR, PERT, PB pipes are widely used in the uptown apartment and village cables protection, hot water supplying, house heating.

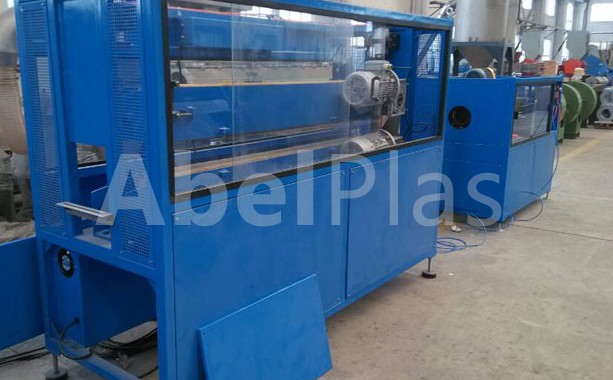

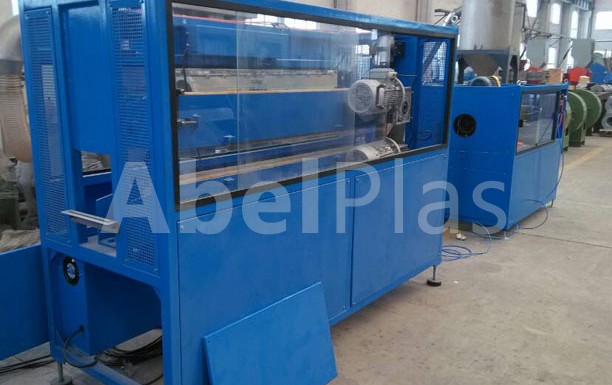

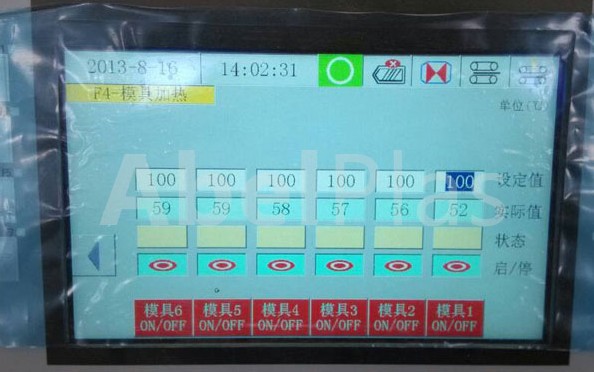

This production line adopts high efficiency single screw extruder, equipped with the Siemens PLC controlling system.
It can ensure the whole line automatic controlling of high capacity, stable extruding with the suitable changing of different units could realize the production job of PP-R, PE-RT, PB pipe.
Main Technical Parameter:
Model | Pipe Diameter Range(MM) | Extruder | Max Capacity(kg/h) | Power(kw) |
PPR63 | 20mm-63mm | SJ65/33 | 150 | 125 |
PPR110 | 20mm-110mm | SJ75/33 | 220 | 210 |
PPR160 | 50mm-160mm | SJ75/33 | 220 | 210 |
PPR63(double pipe) | 20mm-63mm | SJ75/33 | 220 | 160
|
