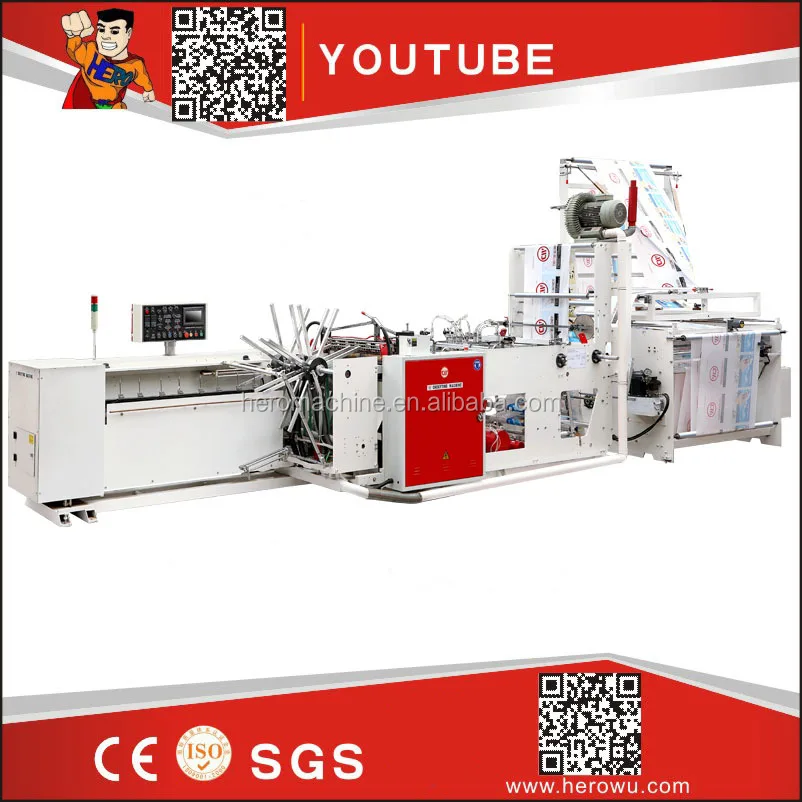

HERO BRAND Shopping Plastic Bag Making Machine Price

We already sold to these country,if you are in this COUNTRY,you can go to my customer factory to check our machine
America:America,Canada,Mexico,Argentina,Brazil,Chile,Ecuador,Paraguay,Colombia,Peru
Asia:Korea,Malaysia,India,Thailand,Bangladeshi,Philippines,Pakistan,Turkmenistan,Azerbaijan,Armenia,Indonesia
Middle East:Iran,Saudi Arabia,Syrian,Jordan,Lebanon,Palestine,Kosovo
European:Russia,Ukraine,Portugal,Italy,Belarus,Poland,England,Bulgaria,Greece,Albania,Estonia,Lithuania,Sweden,Latvia
Africa:Algeria,Nigeria,Egypt,Tunisia,Libya,Sudan,South Africa,Kenya,Morocco,
Australia ETC

Youtube Video website: http://www.youtube.com/user/HEROPLASTICMACHINE

We Have lots of kind plastic bag making machine,

The following is sample picture:

Common unwinding

1. Unwinding adopt common loading , max diameter of raw rolling material is φ600mm

2. Adopt magnetic powder tension control. Manual adjust the tension.

3. Unwinding shaft is heavy-chain plug axle

4. Unwinding with EPC

Top-folding continuously sealing device.

1. Top-folding continuously sealing, the width size of bag not be limited,

2. Inside heating wire sealing, which suitfor full colours of bag.

3. Adopt import heat wire, steady warming, hard sealing

4. Double adhesive tape device for side sealing bag

5. The continuous sealing device is suitable to thickness of one layer film ≤0.06m/layer

Top folding and round bottom gusset device:

1.14mm high hardness steel plate top folding and round bottom guset

2. Special guide plate and roller ,which offer less friction fold

3. With flat press roller

4. More thin round disc bottom gusset

5. U style mould bottom molding

Soft loop handle bag device

1. Double layer unwinder

2. The whole type steel plate base, and special support bag structure.

3. High quality oval sealing knife from up and down

4. Hydraulic skew angle feeding soft loop

5. 90 degree turnabout gear rotary soft loop

6. Special oblique drag style rotary soft loop

7. Micro-motor driver soft loop handle go forward and back off

8. Centralize style air control system

Patch handle bag device

1. Pneumatic control feeding

2. Turnabout cylinder control patch

3. With flying knife cutting fast

4. Special pattern sealing mould

5. Micro-motor driver patch go forward and back off

6. Base mould of patch device adopt whole steel plate

Heat sealing handle punch

1. High hardness gear steel smooth pillar

2. Air outside waster film blower hopper

3. The whole style rotary 180 degree

4. High hardness alloy aluminium puncher base plate

5. Hot handle puncher 20X90m

6. Stroke of puncher :25mm X 2

7. Temperature of puncher 0-300 degree

Photocell of printing and preheating :

1. Printing image tracking adopts photocell from SICK FROM GERMANY

2. The photocell of priting together with high technical computer ,

3. The pre-sealing knife is designed specially of bottom four layers film, high speed produce bag

4. Double sides heating, double cylinder driven, strong for gusing, and strong for sealing .

Side sealing parts:

1. side sealing knife principal axis transmission belt cylinder lifting and down.

2. Side sealing knife with water cycle cooling system.

3. Side sealing knife adopt best of breed material, high temperature heating ametabolic.

4. Side sealing knife with concealed style heating tube, temperature steady

5. Turnover heavy side sealing knife, humanism structure design, turn fast, easy to cleaning.

Convey vollect device:

1. Collect table adopt automatic collecting bag feeding (intermission model and continuum model)

2. When the bag reach to a certainty quantity, collect table will move automatically, and continuo producing.

3. Collect table is driven by Micro-motor reducing servo

Control parts:

1. The main control panel real-display touch screen with Taiwan eview screen

2. Main motor adopt 1.5kw reducer(with braket), driven by the 1.5 kw inverter used YASKAWA FROM JAPAN

4. Driver control program of the whole machine by PLC-panasonic-JAPAN control.

5. Back feeding adopt traction is driven by inverter from JAPAN-YASKAWA

6. Bag feeding is driven by 3 kw servo motor from JAPAN-YASKAW

7. All of pneumatic parts and air cylinders of whole machine all from Shanko-Taiwan

8.. ALL heating adopot AC contactor

9.. Adopt dual intelligent temperature controller

10. The bag making of whole machine operate from inner of machine

Technical data:

Model : ZD800

Bag style: soft loop handle bag,

poly draw handle bag,

patch handle bag

top folden die cut bag,

Orientation: from right to left

Width size of unwinding: 800mm( double )

Diameter of unwinding : 600mm(max )

Length size of bag making: 250-750mm(if want bigger size that should order)

Width size of bag making : 250-600mm

Top folden: 50-75mm

Bottom folden : 30-60mm

Thickness of film : HDPE 0.03-0.06mm

LDPE 0.04-0.08mm

Length size of loop handle tape: 360mm

Thickness of loop handle tape: 0.08-0.25mm

Width size of draw rope tape : 25mm*2(double layer)

Thickness of draw rope tape: 0.04-0.15mm

Width size of patch bag: 150mm

Thickness of patch bag: 0.11-0.15mm*2(double layers)

Speed of bag making:

soft loop handle bag 60 pcs/min

Poly draw handle bag 70 pcs/min

Patch handle bag 60 pcs/min

Die cut handle bag 75 pcs/min

Total power: about 13KW

Working noise : about 90db

Outside of machine : 7800X3200X1850mm

Weight of machine : 3500kg

Air compressor : 7HP

Spare parts follow machine:

1.A set of tools (a toolbox, a 10 # monkey wrench, a set of inside hexagonal wrench, two screwdrivers, a Vector. 8-10,12-14,7-19 leatherhead wrench each have one)

2.Trachea 4, 6,8 each three-meter, each have two4, 6, 8 tracheal tie-in.

3. High-temperature hot Teflon cloth 2 meters, a roll of high temperature rubberized fabric.

4. each heating tube two(heat cutting knife, soft loop handle, preheating,sticking)

5. Small type Proximity sensors two.

6. Small type magnetic contactor four

7. thermocouple 3 pcs.

8. Switch and knob each two.

9. Knife two boxes.

10. Solid state relay two.

11. One Instruction

12. A Instruction of correction , a Instruction of invertor,

13. Level foot plate 16pcs.

14.Power supply copper tie-in 4 pcs
