PVC Ceiling Panel Extrusion Machine
Product description:
PVC ceiling panel extrusion machine is used to produce PVC ceiling panel (board), PVC decoration door panel, change mould, it can produce PVC profile.
1. Application:
This machine is used to make PVC ceiling, PVC door, window profile, decoration panel and so on.
2. Machine processing steps:

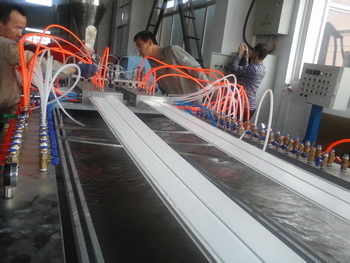

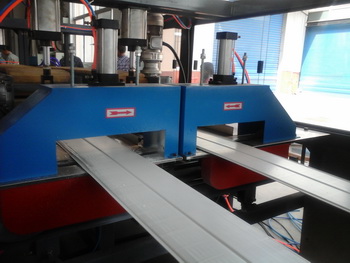

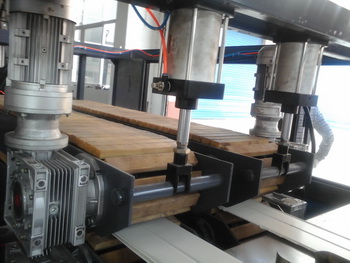

Spiral feeder-Mixer-Spring loader-Conical twin screw extruder-Mould-Calibrating and cooling table-Haul off and cutter-Stacker—hot stamping/printing machine
3. Technical Parameter:
Main Material | PVC & Calcium |
PVC Ratio | 35%---70% |
Thickness | 4.5mm, 5.5mm, 6mm, 6.5mm, 7mm, 7.5mm,8mm, 9mm, 10mm, 12mm |
Width | 180mm,200mm,250mm, 300mm |
Length | As per customer’s requirements |
Colors & Patterns | Diversified color and pattern |
Surface Treatment | High Glossy Printing/Transfer Printing |
Products
Application
Die
Drawing
As to printer for ceiling panel ,there are usually two kinds of printer:
one is High glossy double colour pvc panel printer,which include: printing, coating , varnishing, heating ,drying .
Production speed : 15-35m/min
Width : 600mm
Another is hot stamping process:
The hot stamping process : 1.choose stamping film with different Decorative Patterns ,such as wooden texture , figures 2. Use machine to heating ceiling panel , and print decorative patterns on surface of ceiling panel .
1.PERFORMANCE&USE
This machine is used in the thermo printing of various kinds of exquisite patterns on PVC indoor wall-skirting board, plastic door, low-foaming board,pressed multi-ply board,ane fibre board etc.
2Major Features
The machine uses static elimination,cleaning, glue coating, pneumatic pressuring and heat-resistant silicon roller thermoprinting.lt features reliable and stable operation,low noise,free,speed regulation and easy operation.
3Technology Parameter
blanking width | 300mm |
blanking speed | 1-10m/min |
blanking thickness | 2-40mm |
total power | 5.5kw |
weight | 1200kg |
visual size(L×W×H) | 4000×1200×1900mm |
The comparsion for two kind of printers for your reference:
1.High glossy double color printing line:color printing line → printing panels pattern directly → varnishing →heating and drying→ end products
2.Solvent low temp Hot stamping machine:pattern stamps → hot stamping machine → transfer panel patterns to panel → end products
3.Comparison:
Item | Machine cost | Printing cost | Shine effect | Clean | Coloring |
High glossy double color printing line | High 35000-45000USD | Low | Better | Easy to clean | Needs an experienced worker |
Solvent low temp hot stamping machine
| Low 6500-7900USD | High(needs pattern stamps) | Not as good as color printing line | Not easy | Not need |
