Features and functions

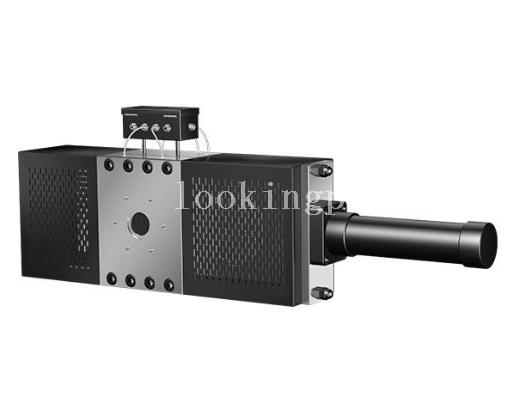

This filter screen changer is a filte-rinfl device for new materials and one back materials. Thetime of changing filterscreen is very short Besides,the op-eration of changinfl js simpie,and never lend to stop the eq-uipment.However,it has a impact on high-end productswhenchanging the filter sc-reen,or even scrapped a lot of products. Because it is simple for manufacturing, cost cheap and neverleak material,the equipment gets a lot of users.
Technical parameters |
ITEMS | SUITABLE OUTPUT(kg/h) | DIMENSIONS | FILTER SIZE | SCREEN CHANGER WEIGHT(kg) | HEATING POWER |
L1(mm) | L2(mm) | L3(mm) | DIAMETER(mm) | AREA(cm²) | Voltage(V) | Total power(KW) |
LN-SSP-150 | 300-500 | 230 | 150 | 990 | Φ150 | 176 | 280 | 220/380 | 6500/8600 |
LN-SSP-200 | 600-1200 | 280 | 180 | 1155 | Φ200 | 314 | 370 | 220/380 | 8500/10700 |
LN-SSP-250 | 800-2000 | 300 | 225 | 1260 | Φ250 | 490 | 450 | 220/380 | 9500/11700 |
LN-SSP-300 | 1000-2500 | 380 | 300 | 1400 | Φ300 | 706 | 600 | 220/380 | 13000/18000 |
