PVC Cable Trunk Production Line
Product Processing Flow:
Raw material+Additive → Mixing → Granules → Conical twin screw extruder → Profile extrusion mould → Cooling molding die → Vacuum calibrating bath → Belt haul off → Cutter → Tilting stacker → Finished product inspecting and packing
Features of PVC Cable Trunk Extrusion Line:
1. Normally PVC Cable Trunk Production Line uses SJSZ-51/105 or 65/132 Conical Twin Screw Extruder to produce double trunk or single trunk,and the specification refers to client's requirement.
2. This extrusion line also can manufacture other customized shapes of PVC profiles.
3. If change to single screw extruder, this line can make PE, PP, ABS profile.
Technical Parameters:
Model | Product dimension (w×h)mm | Extruder model | output(kg/h) | Max speed (m/min) | Install power (kw) | Main motor power(KW) | Length of line(m) |
SJYF-180 | 180×60 | SJSZ51/105 | 80-120 | 6 | 55 | 22 | 23 |
SJYF-240 | 240×120 | SJSZ65/132 | 140-180 | 4 | 76 | 37 | 27 |
The Machine Unit:
Name | Quantity |
Automatic loader | 1 set |
SJZ51, SJZ65 conical twin screw extruder | 1 set |

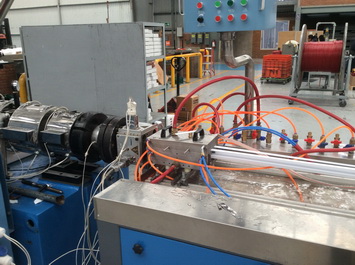

Mould and calibrating | 1 set |
Vacuum calibrating table | 1 set |
Haul off machine | 1 set |
Printer | 1 set |

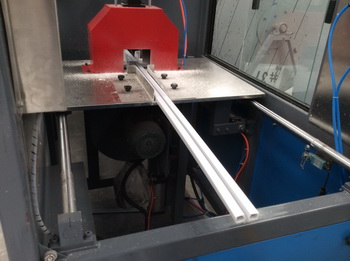

Synchro cutter | 1 set |
Tipping stacker | 1 set |
Other Necessary Equipment:
Name | Quantity |
SRL-Z type of hot/cooling mixer | 1 set |
crusher | 1 set |
Products
Application

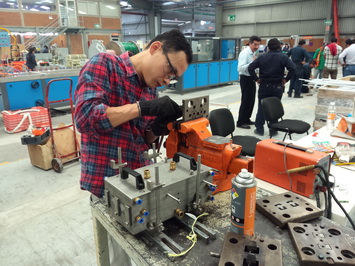

Die
Drawing
PRODUCT | PRODUCT SPECIFICATIONS | IDENTICAL IMAGE | Packing Type | UNITS (PER PACK) |
T
R
U
N
K
I
N
G
S | 16 x 16mm x 2m |
| Bundle | 20 |
16 x 16mm x 3m | Bundle | 20 |
16 x 25mm x 3m | Bundle | 20 |
16 x 40mm x 3m | Bundle | 20 |
16 x 40mm x 3m Twin | Bundle | 20 |
25 x 40mm x 3m | Bundle | 10 |
25 x 40mm x 3m Twin | Bundle | 10 |
40 x 40mm x 3m | Bundle | 10 |
40 x 100mm x 3m | Bundle | 4 |
40 x 100mm x 3m Twin | Bundle | 4 |
Company Profile
ABEL
was established in 2006 ,is specialized in research,manufacture and
marketing of plastic extrusion machine ,mixer and mixing plant
,granulating machine .ABEL is located in zhangjiagang city (near
shanghai ),jiangsu province,china.
With
comprehensive experience, creative and innovative emotion,ABEL
develops high-quality products for the market. Highly skilled artisan
together with modern processing methods ensure that ABEL has stable and
high performance products.
We provide below machines and plants to domestic and international market:
•Extrusion line for profile/pipe
•Mixer and mixing plants for pvc powder
•Screening ,conveying ,packing system for plastic granules
•plastic granulating lines
•Auxiliary machines
•Many
leading companies in different industries have cooperated with us
,such as shengqili group(listed company) ,ALBIS PLASTIC GMBW ,TRUPER
group mexico,Colormax group ,Green recycle lebanon
Our
Mission :Help customers to gain profits and assist customers to sucess.
Our development comes from the clients’ satisfaction.
Our
aim :to help at least 500 customers to process and produce better
products , to effectively use the plastics and to improve people's
living environment.
