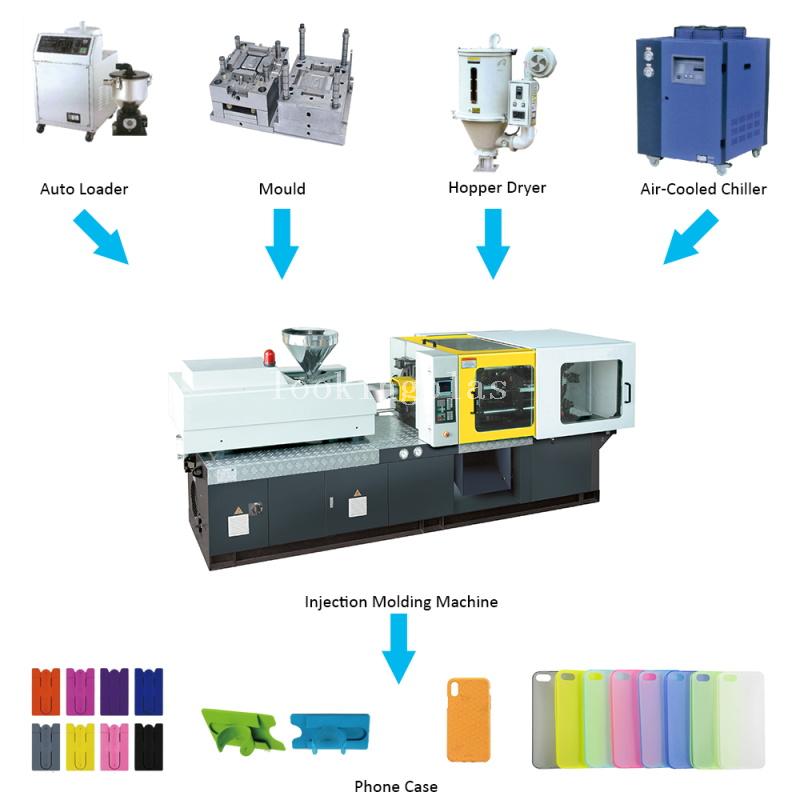

Shenzhou Plastic Phone Case Injection Molding Making Machine 938 Favorites

Product Categories: From 200T to 300T Injection Machine
Packaging Details:	Trademark:
Certification:
Payment Terms：
FOB:	HS Code:
Loading Port：Shanghai

Zhang Jia Gang SHEN ZHOU Machinery Co., Ltd.
Company type： Manufacturer	Credit：
Main products：Injection molding machine; PET blow molding machine; injection-blow molding machine; extrusion blow molding machine; plastic mould; downstream equipment.

Get Quotation

Contact Supplier

To：	Chen
Subject：
Message：	You can also enter 300 characters

Message has been sent successfully.

Post Buying Request

*Subject:
*Matching Rules:	Categories Keywords
*Inquiry Type:
*Keywords:	+ max five keywords
	Added:
	Note:you can add at least one keywod and most five keywords
*Categories:	Add Delete
*Detailed Description:
	Note: Please write your requirement in detail
Attachments：	+ Note: Attachments will help you get accurate solutions Note: Attachments can help you get accurate solution from suppliers
Max quotations want to receive：
	I agree to share my business card with quoted suppliers

Submit Inquiry

No matched supplier

Public souring

Your inquiry has been submitted successfully but 0 supplier matched at present, you will get quotations from Public Sourcing.

Close

Your inquiry has submited successfully and suppliers have been matched by LookingPlas,You will get the quotations as soon as possible.

Close

You had already registered,no need join again.

Registered successfully.

Sorry only Buyer can register the activities.

INJECTION UNIT
ITEM	UNIT	VALUE
SCREW DIAMETER	mm	55	60	65
SCREW L/D RATIO	L/D	22.9	21	19.4
Theoretical Shot Volume	cm^3	665	791	929
SHOW WEIGHT(PS)	g	605	720	845
INJECTION PRESSURE	Mpa	210	176	150
THEORETICAL INJECTION RATE(PS)	g/s	176.5	210	245
PLASTICISING CAPACITY	g/s	26.4	32.5	40
SCREW TORQUE	N.m	2000
MAX.SCREW ROTATE SPEED	r/min	150
INJECTION STROKE	mm	280
CLAMPING UNIT
ITEM	UNIT	VALUE
MAX.CLAMPING FORCE	KN	2400
MAX.OPENING STROKER	mm	530
SPACE BETWEEN TIE BARS	mm	555×555
MOULD HEIGHT	mm	200~570
MAX.DAYLIGHT	mm	1100
EJECTOR FORCE	kn	61.5
EJECTOR STROKE	mm	135
EJECTOR QUANTITY	pc	9
OTHER
ITEM	UNIT	VALUE
PUMP MOTOR POWER	KW	22
PUMP PRESSURE	Mpa	16
HEATING POWER	KW	18.5
HEATING ZONE		5
SIZE	m	6.2×1.6×2.1
NET WEIGHT	t	8
OIL TANK CAPACITY	L	440
INTERNATIONAL DESIGNATION		2400-1390
