Features:

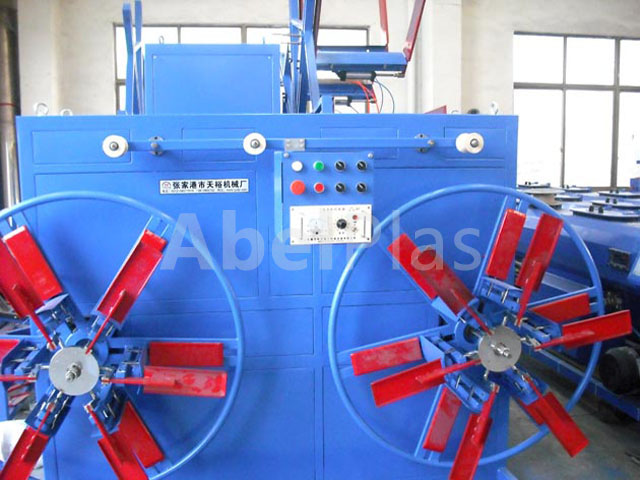

The machine is mainly used in coiling and packing of aluminum-plastic compound pipe,cross-linking compound pipe and other plastic soft pipes.It adopts automatically coil,adjusting coil speed and coil method.It has two disk forcontinuous coil.It adopts pneumatic method.The wheel rib of the coil up wheel adopts pneumaticopening and closing.It is equipped with aray creel stand to automatically coil displacement.It reaches coil up orderly.The machine structure is compact.Its automatization is high.Its appearance is beautiful and its operation is convenient.
Parameters:
Model | SPS700 |
Coil diameter | Φ700mm |
Coil speed | 0.8-8m/min |
Coil width | 500mm |
Coil pipe specification | Φ16-63mm |
Air pressure | 0.6MPa |
Dimension | 4350*2100*2315mm |
Weight | 1200kg
|
