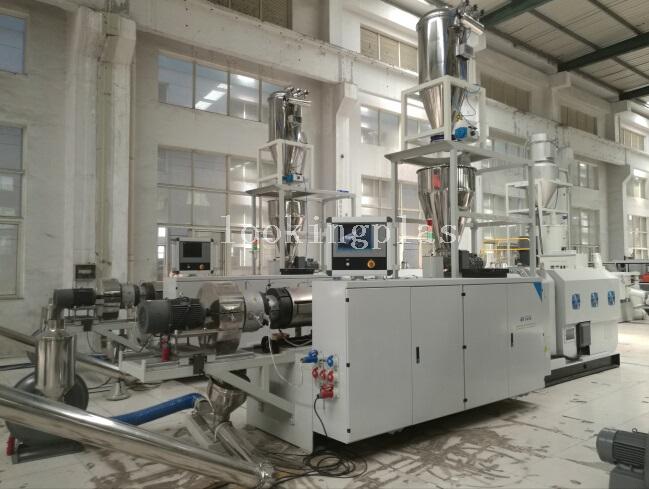

PVC compounding granulating line
This machine is mainly used to make PVC granules for electrical cables, pipe fittings etc. With proper design, it can also make soft PVC granules, CPVC granules.

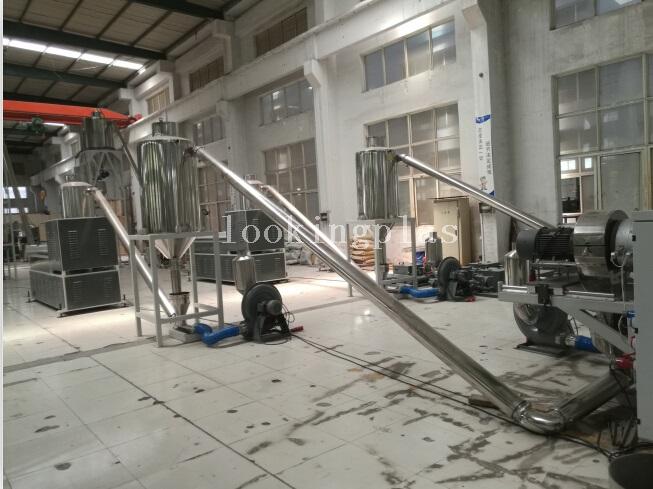

The working flow of PVC granulatign line is PVC powder -Plastic mixer(optional)- Plastic extruder- extrusion mould-Pelletizer air cooling system- vibrating sieve(optional)- Storage Bin.
Features:
1. Conical double-screw extruder, which is designed for process PVC powder with high capacity
2. Pelletizing style: Hot-cutting on mould face, even cutting ensures good shape.
3. The wind sending & gathering and vibration separate type cool system of assistance machine adopted have high automation degree and production efficiency.
Technical parameters
| Model | SJSZ51 | SJSZ65 | SJSZ80 | SJSZ92 |
| Screw(mm) | 51-105 | 65-132 | 80-156 | 92-188 |
| Granule(mm) | 3-10 | 3-10 | 3-10 | 3-10 |
| Motor Power(kw) | 30 | 37 | 55 | 110 |
| Output(kg/h) | 100-120 | 220-260 | 320-450 | 650-800
|
