Brand: Sunbun
Founded: 2002 Year

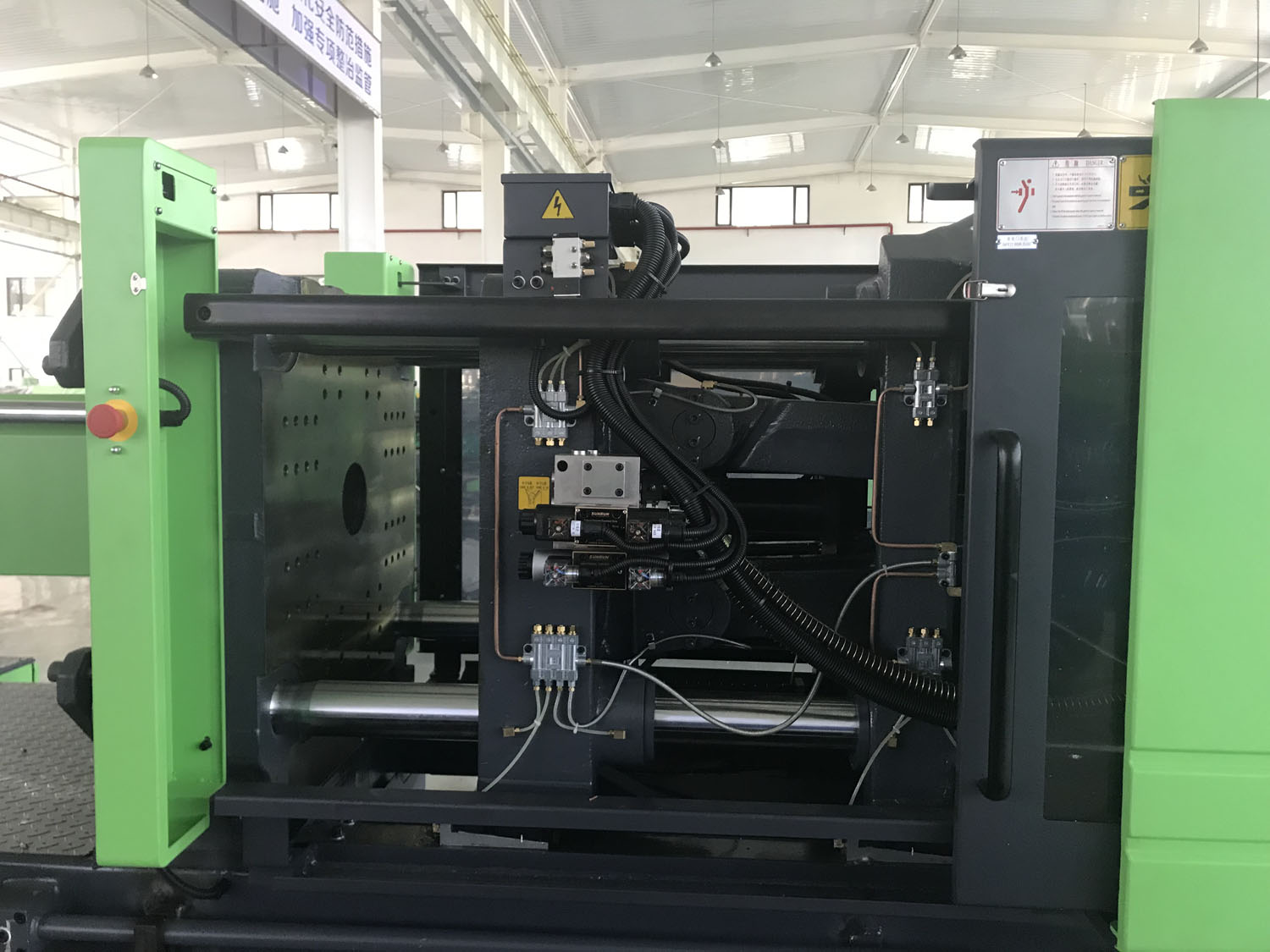

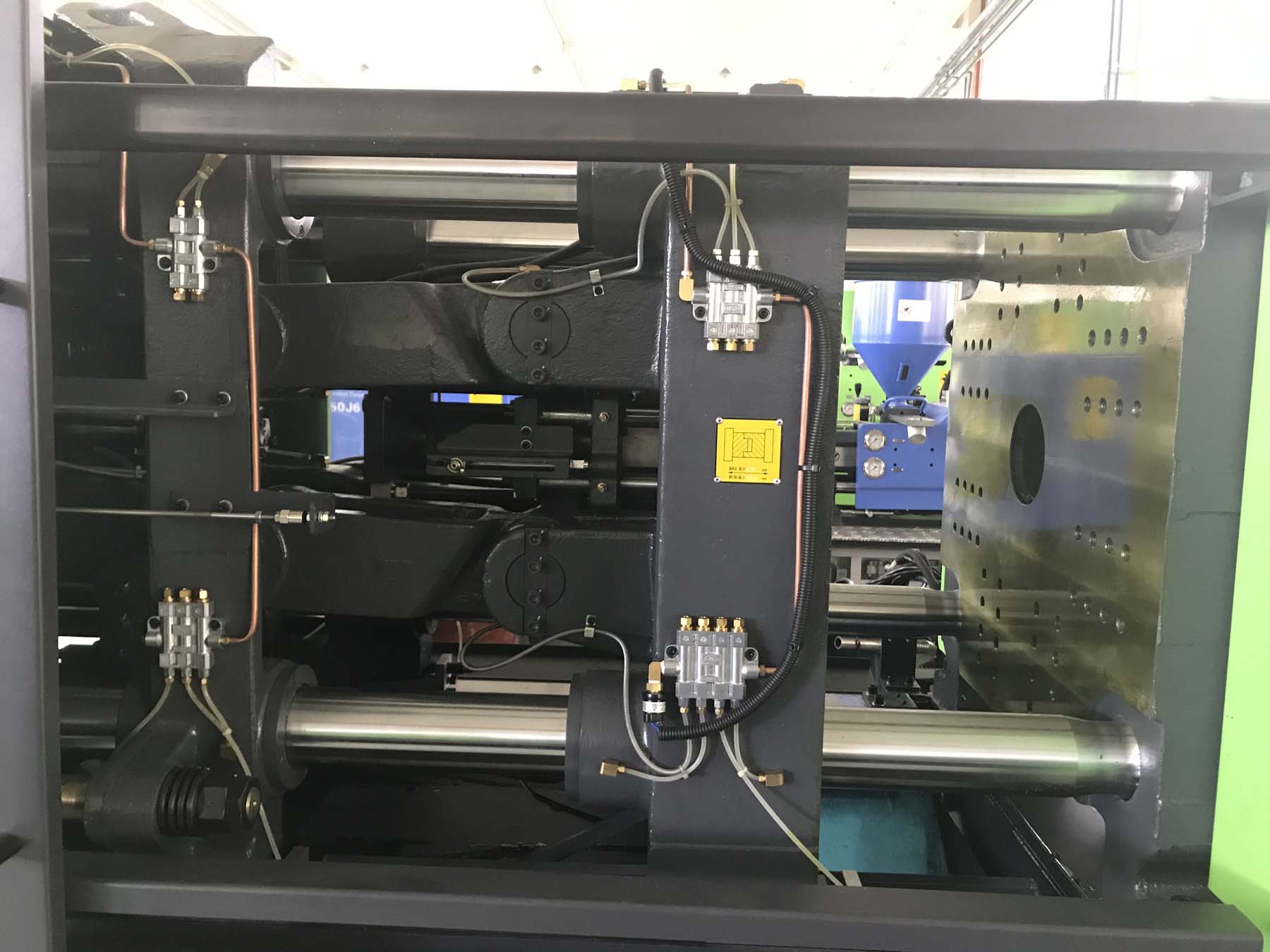

Structure: Central locking stucture
Central clamping sturcture (China only 2 factory )
Production: 2000 set 2018 years
Tonnage: 140T-2800T
Series: SK Series High speed high precision machine
Equipment:Dossan (kr) 50+ set
DMG 3 set
Mazak center 5 set
Nakamura-tome 3 sets
.........
China clinet : Huawei, ZTE, Haier , Hisense , DELL , Kindly , LOVEL , ZOWEE .....
Advantage of Central locking sturcture (sales points)
1, 100% clampping force use ratio.10%-20% higher than tradtional one
2, Less fins on the finished products
3, 2%-6% raw material saving on the production (deeper cavity more, save more material)
4, effective production for the mold.Mold board and pull rod
5, Open stroke 10%-20% longer than tradtional one
6, Less deformation after cooling
Shortl spacking .......
1, Bigger clampping force , Use smaller machine make bigger productes
2, Bigger Open stroke , Very suit for deep cavity product

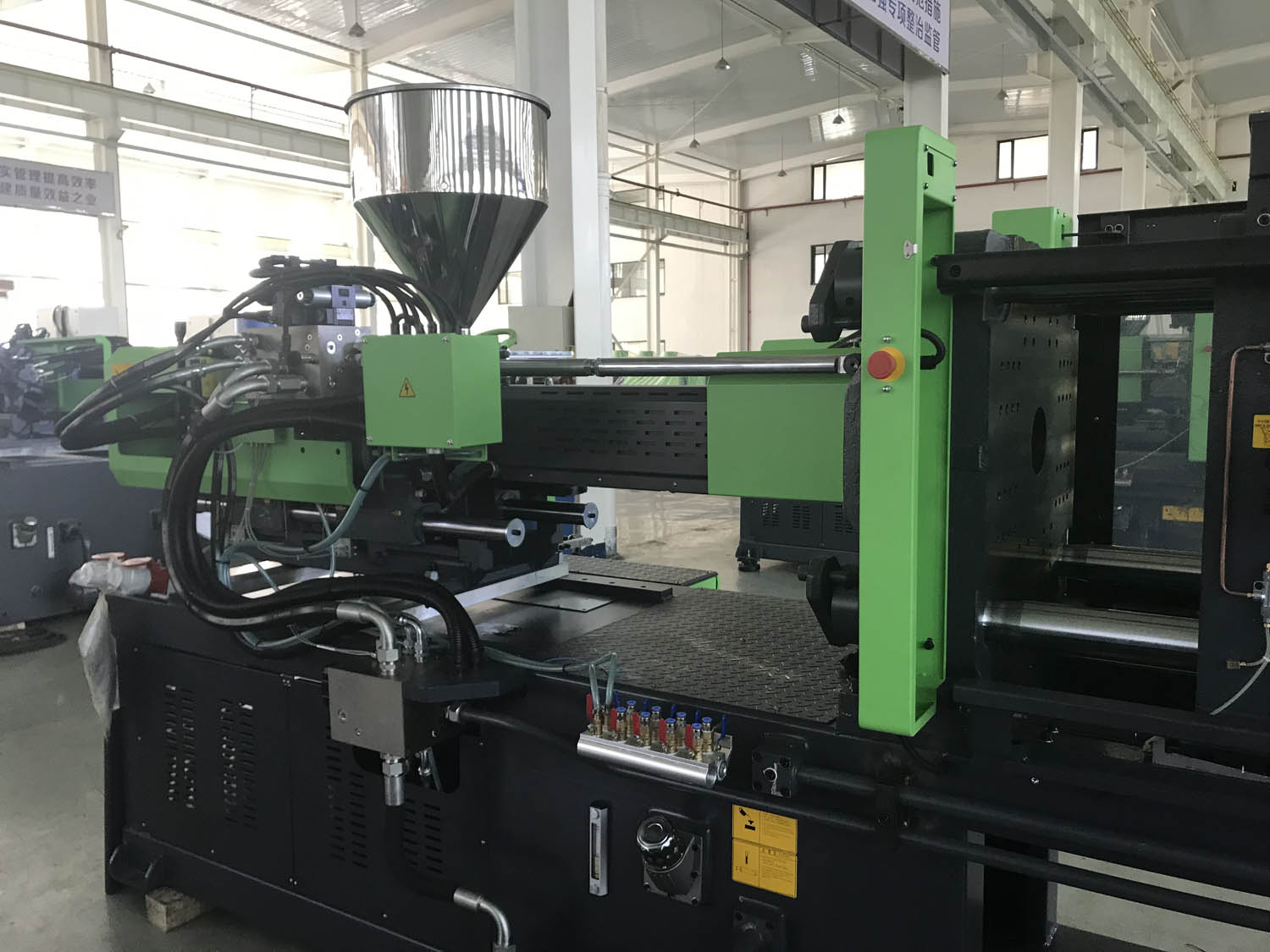

Inject type | Unit | SK180/C600 |
Screw type |
| A | B | C |
Screw dia | Mm | 40 | 45 | 50 |
Screw dia ratio | L/D | 22 | 22 | 20 |
Injection volume | Cm3 | 276 | 350 | 432 |
Injection volume (ps) | G | 251 | 318 | 393 |
Max injection rate to air | Cm3/s | 126 | 159 | 196 |
Injection pressure | Mpa | 215 | 169 | 137 |
Injection stroke | Mm | 220 |
Max injection speed | Mm/s | 111 |
Screw max speed | R/min | 210 |
|
Clamping force | Kn | 1600 |
Open stroke | mm | 490 |
Bar distance | Mmxmm | 520x470 |
Max mold | Mm | 545 |
Min mold | Mm | 200 |
Ejector stroke | Mm | 150 |
Ejector force forward | Kn | 45 |
Ejector force backard | Kn | 30 |
Thimble qty | Pcs | 1+4 |
|
System pressure | Mpa | 16 |
Motor power | Kw | 18.5 |
Heater power | Kw | 9.95/10.95 |
Tem control zone qty | Pcs | 1+4 |
Bucket capacity | Kg | 25 |
Oil tank capacity | L | 230 |
Size | M | 5.5x1.5x1.9 |
Weight | T | 5.6T |
