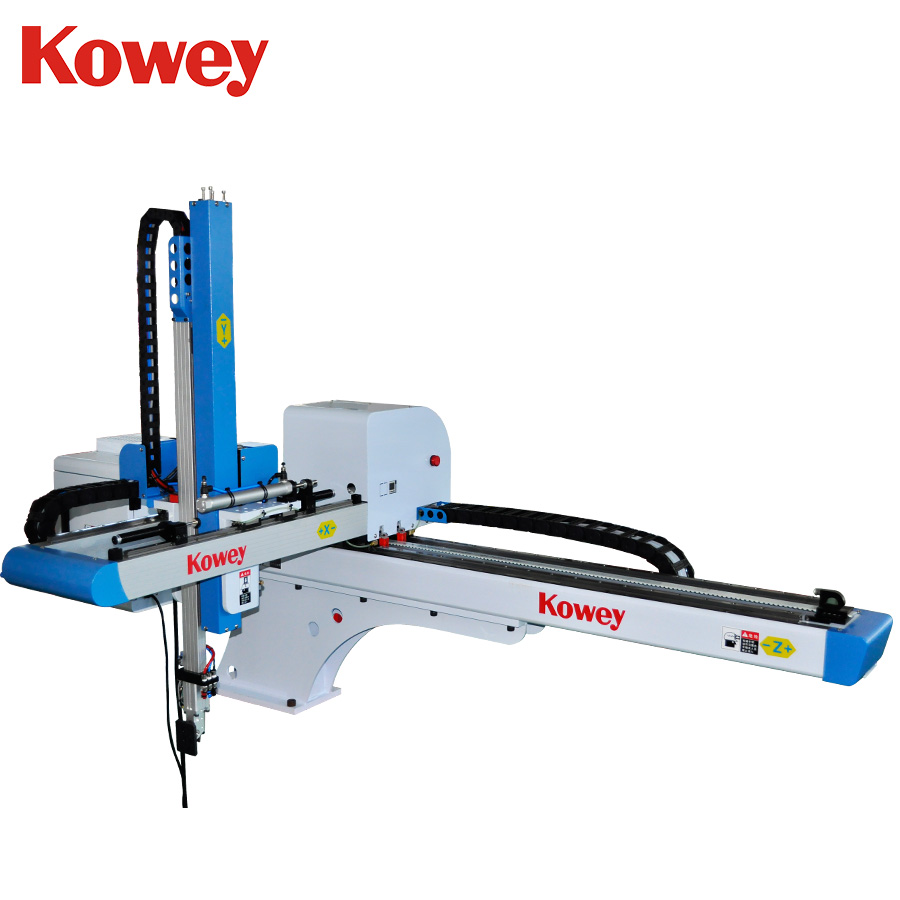

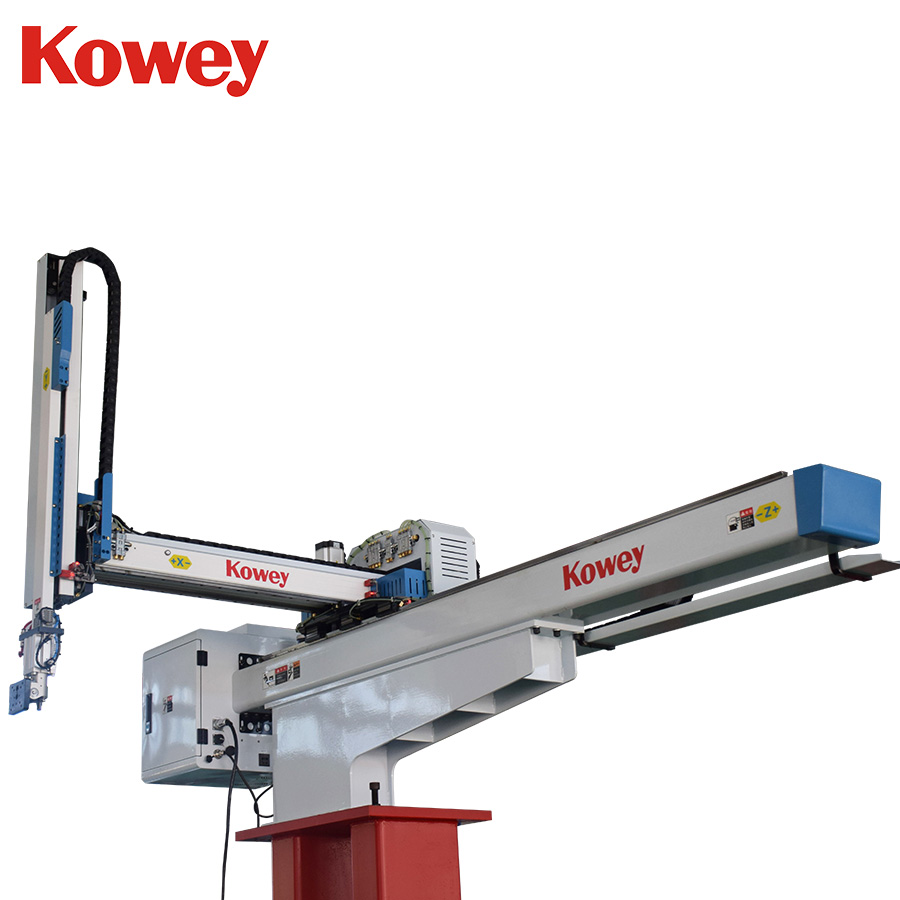

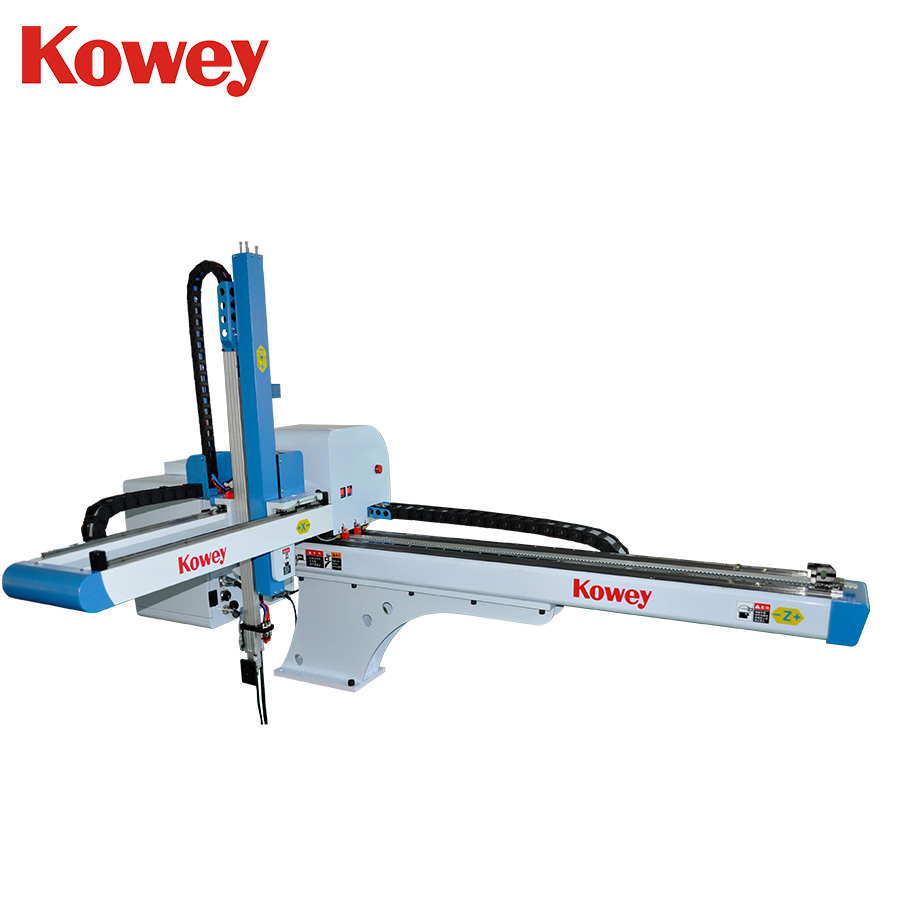

Kowey Economic AC Servo Traversing Robot

Kowey series traversing robot arm is applicable to all types of horizontal injection machine ranges of 150T-450T for take-out products and sprues. Vertical arm is telescopic type, with product arm and runner arm, for two plate or three plate mold products take out. Traverse axis driven by AC servo motor. After installed this robot, the productivity will be increased 10-30%, reduce defective rate, ensure safety of operators, reduce manpower and accurately control the output to reduce waste.

1.With the high repeated accuracy,it can meet the taking-out requirements for the sophisticated products.

2.With the high compatibility ,it can meet the taking-out requirements for the different products.

3.With the high stability,it can meet the requirement of long time continuously production.

4.With the human- friendly design,it is easy to use.

5..We have total changed the original production style which needs high pressure air to low the parts out and counting manually.

6.With our optimized design,it has the advantages of the high speed,efficiency,stability,and it can fulfil the requirement for automatic taking-out.

7.Dry cycle time is 1.8s,in mold time is 0.4s.

8.Panasonic servo motor with Shimpo reducer are used for traverse and vertical stroke.

9.Germany IGUS control electrical appliances.

10.High inertia ensures high-speed and stable operation of the machine.

11.30 million times of bending test can ensure the stability and longer life of the robot.

12.Germany IGUS toline.

13.Guide rails for traverse ,crosswise vertical are THK brand.

14.Smooth inner surface can effectively protect the cable side of the slide module to make chain life longer.

15.Reducing vibration,robot can run at high speed and stably.
