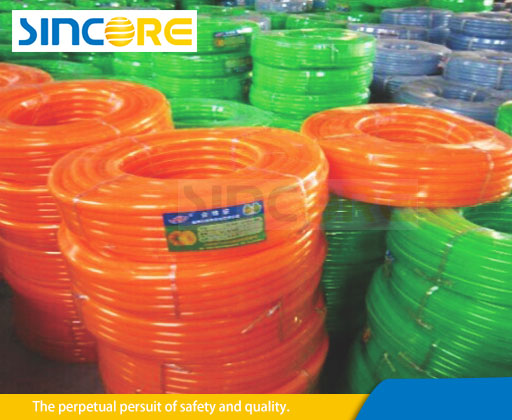

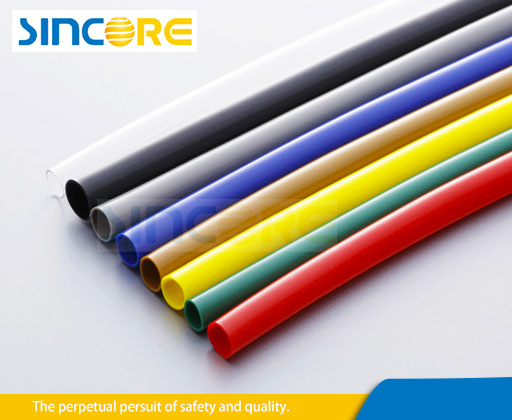

The soft tube/profile extrusion line is applied for TPU/TPE/PP/PE/PC/ABS/PVC precise size extrusion soft hoses or profiles. The finished soft hoses and profiles are widely used in pharmacy, industrial hoses, electronics packing etc.
>Equipment components:

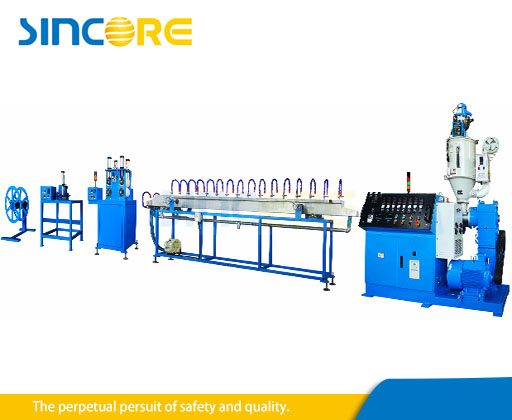

The extrusion is composed of single screw extruder, mould, cooling tank, precision high speed belt hauler, precision diameter measuring unit ,high speed servo control precision cutter and optional winder as per required
>>应用领域:
该软制品挤出生产线用于TPU/TPE/PP/PE/PC/ABS等软制品的挤出,例如医疗及工业领域软管,电子产品包装及其他领域型材类。
>>设备组成:
该系列设备由单螺杆挤出主机、挤出模具、真空成型冷却机、精密高速皮带牵引、精密测径仪,精密高速伺服切断机,以及根据需要选配收卷机等。
参数表格请参考 软制品管道型材挤出线excel 参数表
主机 Extruder | SJ45/28 | SJ55/28 | SJ65/28 | SJ75/28 | SJ90/28 |
主电机功率Main motor power(kw) | 11kw | 15kw | 18.5kw | 22kw | 37kw |
总功率(kw)Total power | 28kw | 32kw | 36kw | 42kw | 55kw |
备注:以上规格参数如有变更,恕不另行通知 Remark: Specifications and standard equipment are subject to change without notification |
