1T/h two cascade double stage recycle plastic PE film extruder granulator machine with underwater pelletizer
We cherish Safety, Quality, High capacity!
Over 240 sets of ACS pelletizing machines running all over the world!
For offer and technical details pls contact me

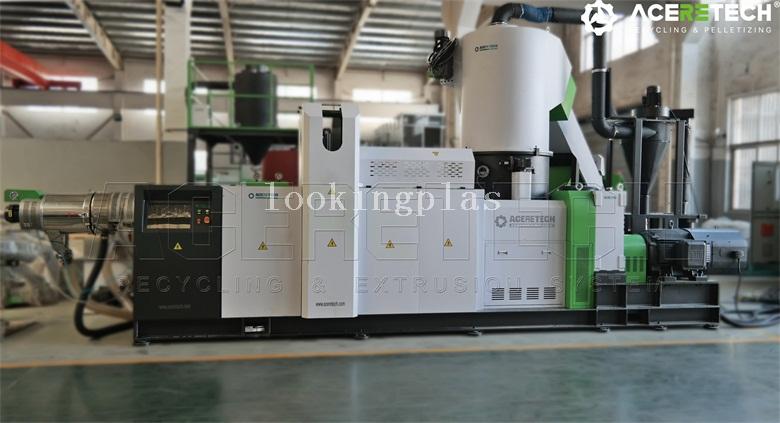

ACS series of Plastic granulating machine with integrated compactor.
Feeding unit:
Plastic materials such as film, filament, raffia, bags, non-woven are conveyed into the compactor by belt conveyor/ Hauling roller. Speed adjusted by inverter.

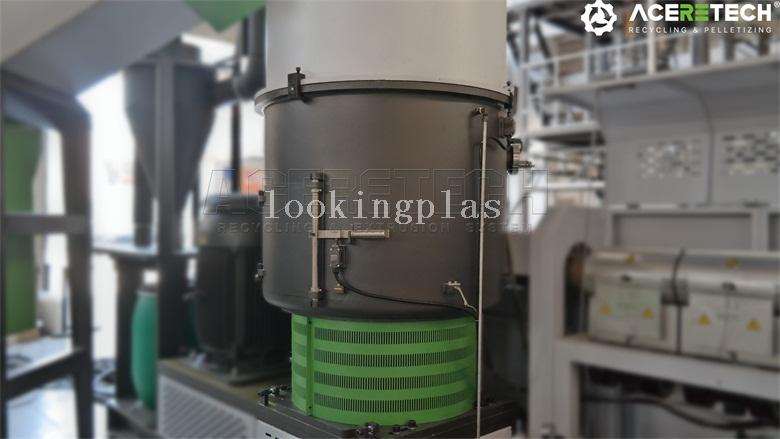

Compactor:

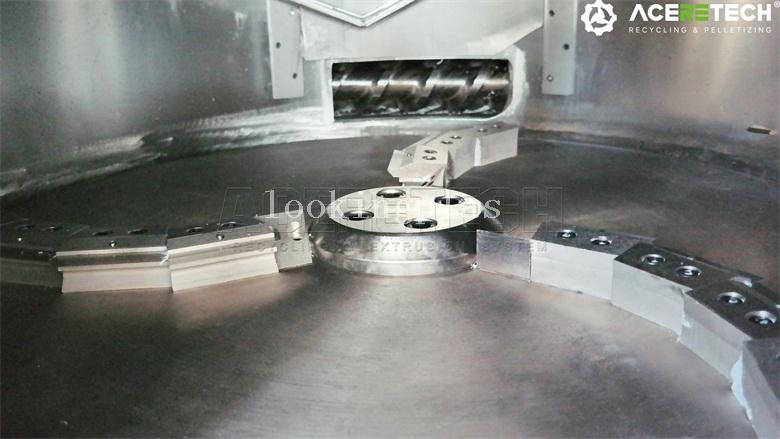

The rotary blades at the bottom of the compactor and fixed blades on the wall cut plastic material into small flakes. Friction heat dries and pre-heats the flakes and makes them shrink. Arc-shaped plates guide the material down to be cut. Shrunken flakes are fed into the extruder under the centrifugal force of knife disk.
Precise temperature controlled by PLC modular. Interconnection between compactor current and feeding speed.
Some options for promoting pre-treatment effect for not clean materials.
Single-screw extruder:
Bi-metal screw, 2 years guarantee.
AC motor WEG, global guarantee.
High-torque gear box with German FAG bearing.
Ceramic/Infrared heaters with air cooling.
Vacuum degassing system.
Filter:
Plate, Piston, Self-cleaning types of filters.
Nitrided screen plates, much tougher.

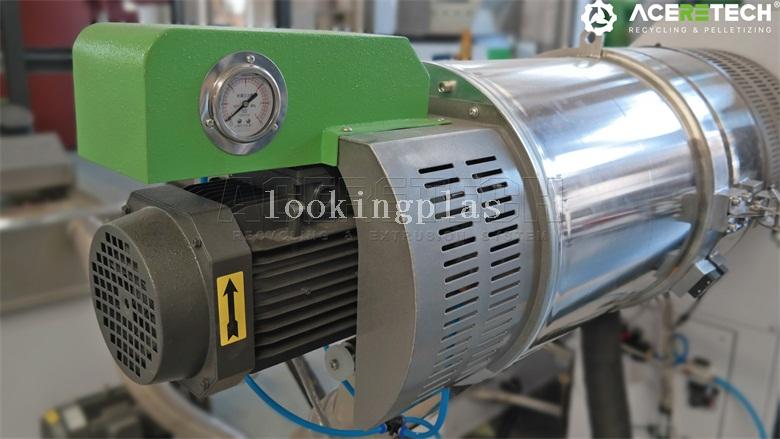

Water-ring pelletizer:
Die: Cutting blades' speed is automatically adjusted according to melt pressure on the die to ensure even granules. Cutting blades are pushed and fit completely to the die Pneumatically.
Dewatering vibrasieve:
Special design for effective drying, and water circulation and temperature controlling.
Horizontal centrifugal dryer:
Energy saving. 0.6% surface moisture on the pellets. Tested in our own lab.
Silo:
Low noise, with soundproof cotton.
Quantitative weighing system for option.
Strand pelletizer, Underwater pelletizer for option.
Electrical control cabinet:
Top brands of electrical elements: Shneider, ABB, with global guarantee.
Siemens PLC, 5 years experience of automatic control.
On-line monitoring running machine on your cellphone.
Technical backup such as updating programs.
Spare parts in stock.
