Double piston continuous screen changer/melt filter for plastic extruder
GM-DP-R series
This GM-DP-R series Double piston continuous screen changer/melt filter for plastic extruder is consist of
Characteristics of GM-DP-R series Double piston continuous screen changer/melt filter for plastic extruder
Two round removable breaker plates on each bearing piston
"Continuous type" means operation of screen change without machine halt or disruption of melt flow.
Fit for almost all kinds of polymers
It works well under the high pressure 400bar(40Mpa) not impact the high performance.
The filtration screen area covers from 56cm² to 520cm², depending on the size, fit for output range from 30kg/h to 1800kg/h.

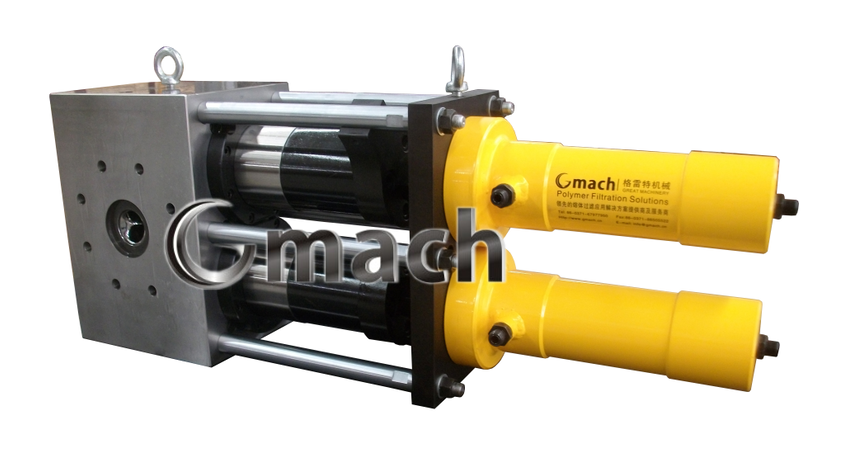

Product show
Double piston continuous screen changer/melt filter for plastic extruder
Benifits of this kind of Double piston continuous screen changer/melt filter for plastic extruder
continuous operation
Leak-free mold of operation
Customized design adapters
optional choice of installation ways
Simply controll by a easy operated control handle
Reasonable price and proved technology
Main application fields
Cast film (Bubble pack/ Medical/Food Wrap)
Sheet (Foam/Strapping/Plastic cardboard)
Coating (Hot melt adhesive)
Pipe ( Corrugated/Gas Pipe) and profile
Compounding (Master batch/filler)
Wire and cable extrusion
Tubing (Medical/Industrial/Irrigation)
Fibers ( Monofilament/non-woven fabrics)
Pelletizing (strands and water-ring pelletizing)
Recycling of most polymers
Application show
Double piston continuous screen changer/melt filter for plastic extruder
Types
Type
|
ScreenD&A
| Overall &dimension (mm) |
Heating power
(KW))
|
Output
(kg/h)
|
| Dia(mm) | Filtration area(cm²) | L | W | H | L1 |
|
|
GM-DP-R-80 | 60 | 28x2 | 180 | 170 | 280 | 700 | 2.4/3.2 | 30-180 |
GM-DP-R-100 | 80 | 50x2 | 220 | 200 | 320 | 810 | 3.5/4.7 | 80-280 |
GM-DP-R-120 | 100 | 78x2 | 250 | 220 | 360 | 970 | 5.0/7.2 | 220-480 |
GM-DP-R-155 | 130 | 113x2 | 320 | 270 | 450 | 1100 | 8.2/11.1 | 300-700 |
GM-DP-R-170 | 145 | 165x2 | 370 | 310 | 480 | 1320 | 9.4/12.7 | 400-1100 |
GM-DP-R-195 | 165 | 214x2 | 400 | 380 | 550 | 1470 | 10.2/13.8 | 650-1500 |
GM-DP-R-220 | 180 | 254x2 | 440 | 410 | 590 | 1620 | 13/17.5 | 800-1800 |
Remark:The output rates depend on the individual extrusion process parameters. |
Packaging
Inner packing: bubble wrap film protection
outer packing:wooden case
Commissioning
We provide the operation manual for customers to gudie to install the screen changer, and at the requirement of user, salers should send technician to install and commissioning the die at site of Buyers, expenses of the trip should be borne by Buyers.
After-sales service
12 months with proper operation by user, all the spare parts shall be replaced free of charge under guarantee period, fee for transportation and packing will be borne by users.
