| SJSZ65 conical twin-screw extruder |
Material of screw and barrel | 38CrMoALA |
Brand of screw and barrel | Made by Zhejiang Guangyou |
Heat treatment hardness | Nitriding treatment depth of barrel: 0.5-0.7mm, hardness (HV) 740-1100. Inner surface roughness Ra≤0.8um |
Screw diameter (mm) | 65/132 |
Rotating speed of screw | 1-36 rpm |
Power of main motor/feeder motor | 37KW/0.75KW |
Manufacturer of main motor/feeder motor | Siemens / Shanghai Honest |
Extrusion capacity | 80-250kg/h (according to material fomulation) |
Cooling mode of screw | Distilled water cooling inside the screw |
Number of electric heating zone | 4 heating zones for barrel, 1 heating zone for conflence part |
Connecting mode of extruder and die | Flange connecting |
Main motor /feeder motor inverter | Made by INVT |
Temperature controller | Made by OMRON |
Electric contactor | Made by Siemens |
Gearbox | horizontal type gearbox, made in Jiangyin. Hard surface helical teeth, material: 20CrMoTi, with carburization and grind treatment; Material of gear in distribution box: 38CrMoALA, nitrogen treated. Material of shaft: 40Cr |
Cooling mode of electric heating zone | Air blast cooling, blower motor: 0.55KW×2, 0.25KW×1 |
Electric heater of extruder barrel | cast aluminum heater with stainless steel shell, heating power: 24KW |
Power of automatic loader | 0.75KW, spiral loader (optional) |
| Both synchronized and separated adjustment are available for main motor speed and feeder speed. Auto emergency stop is equipped against over current. |

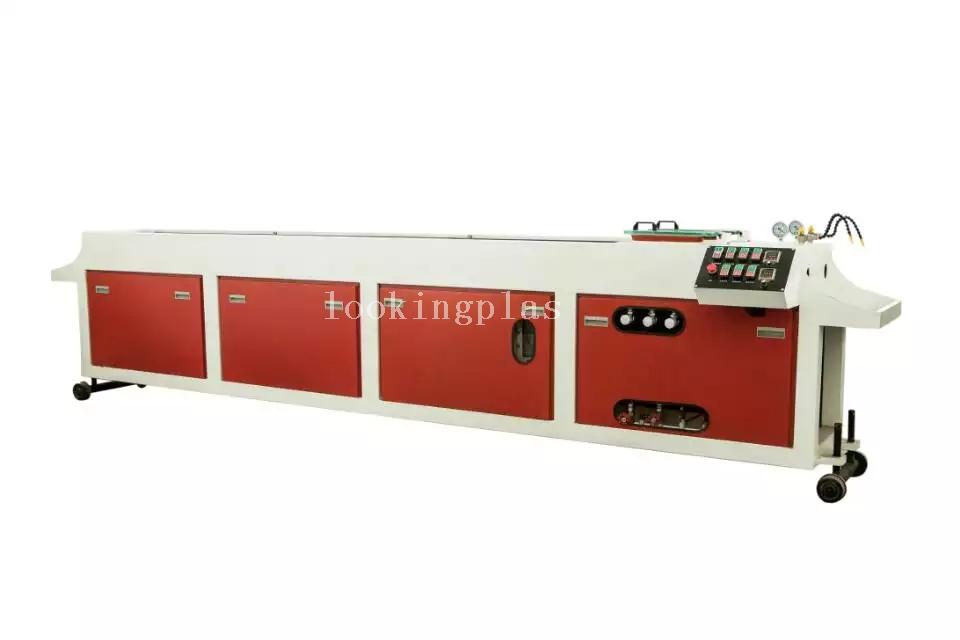

| ZDG40 vacuum calibration tank |
Pipe range of calibration | Ф16mm-Ф40mm |
Power of vacuum pump | 3KW×1 |
Air suction capacity of vacuum pump | 120m3/h |
Length of vacuum tank | 4000 mm |
Power of water pump | 1.5KW×1 |
Material of water tank | stainless steel |
Traveling device motor power | 0.37KW |
Central height | 1000mm |
|
|

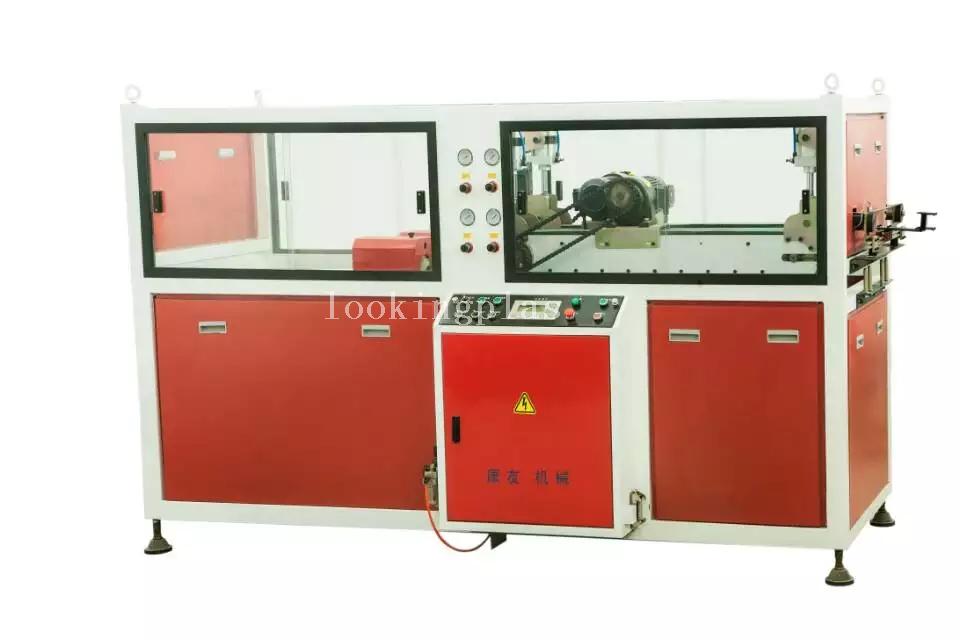

| QY40 double haul-off & cutter |
Pipe hauling range | Ф16mm-Ф40mm |
Max hauling power | 1.5T |
Max hauling speed | 15 m/min |
Width of rubber pad | 100 mm |
length of caterpillar | 1200mm |
Motor power | 0.75KW |
Motor inverter | Made by INVT |
Max clamping force | 2600N |
Cutting mode | By saw blade |
Max cutting diameter | φ63 mm |
Drive motor power | 2.2KW×2, made by Siemens Beide |
Consumption of compressed air | 1100L /hour |
Compressed air pressure | 0.6-0.7 Mpa |
Pneumatic components | Made by Shanghai Xinyi |
|
|
| Stacker |
Working range | φ16mm –φ40mm |
Working length | 4000mm |
Power source of stacker | cylinder power |
Air pressure required | 0.4-0.6 Mpa |
|
|

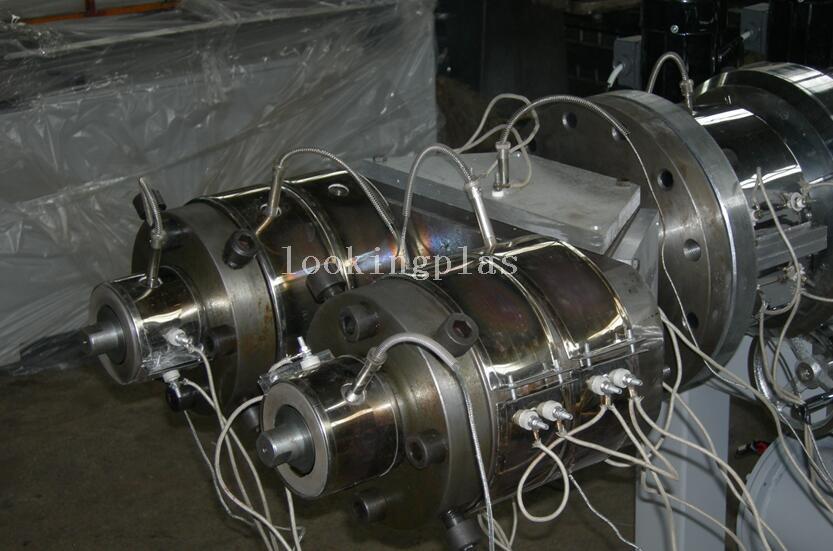

| Pipe mould (16mm-40mm) |
|
|
Other information |
Power supply | 380V, 3 phaze, 50Hz |
