Typical Features of 3 Color Automatic Flat Bed Screen Printing Machine HY-R324

• High precision mechanical rotary indexer (24 stations)

• OMRON PLC controlled with touch screen

• Mechanically synchronized print heads for precise printing results

• Automatic loading and unloading system

• Quick and easy set-up and change-overs

• Motor controlled optical pre-registration device

• Adjustable squeegee angle and height

• Up to 110 x 90mm (4.33” x 3.54”) print area

• HANOVIA brand UV Curing units (US Made)

• Equipped with interlocking safety doors

• Printing speeds up to 45ppm

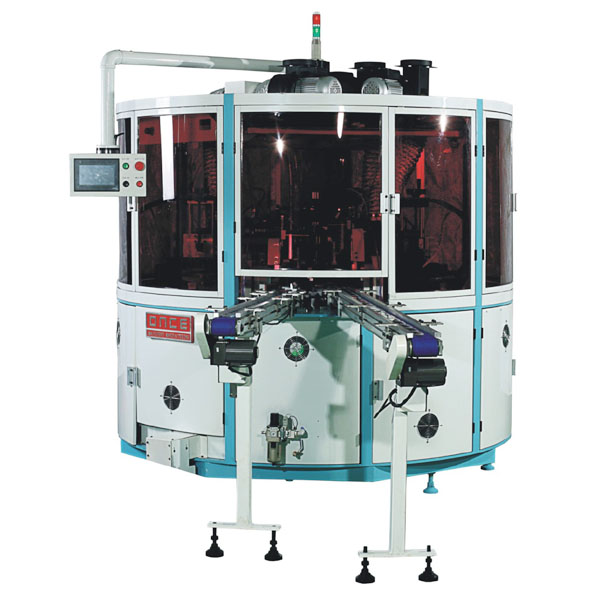

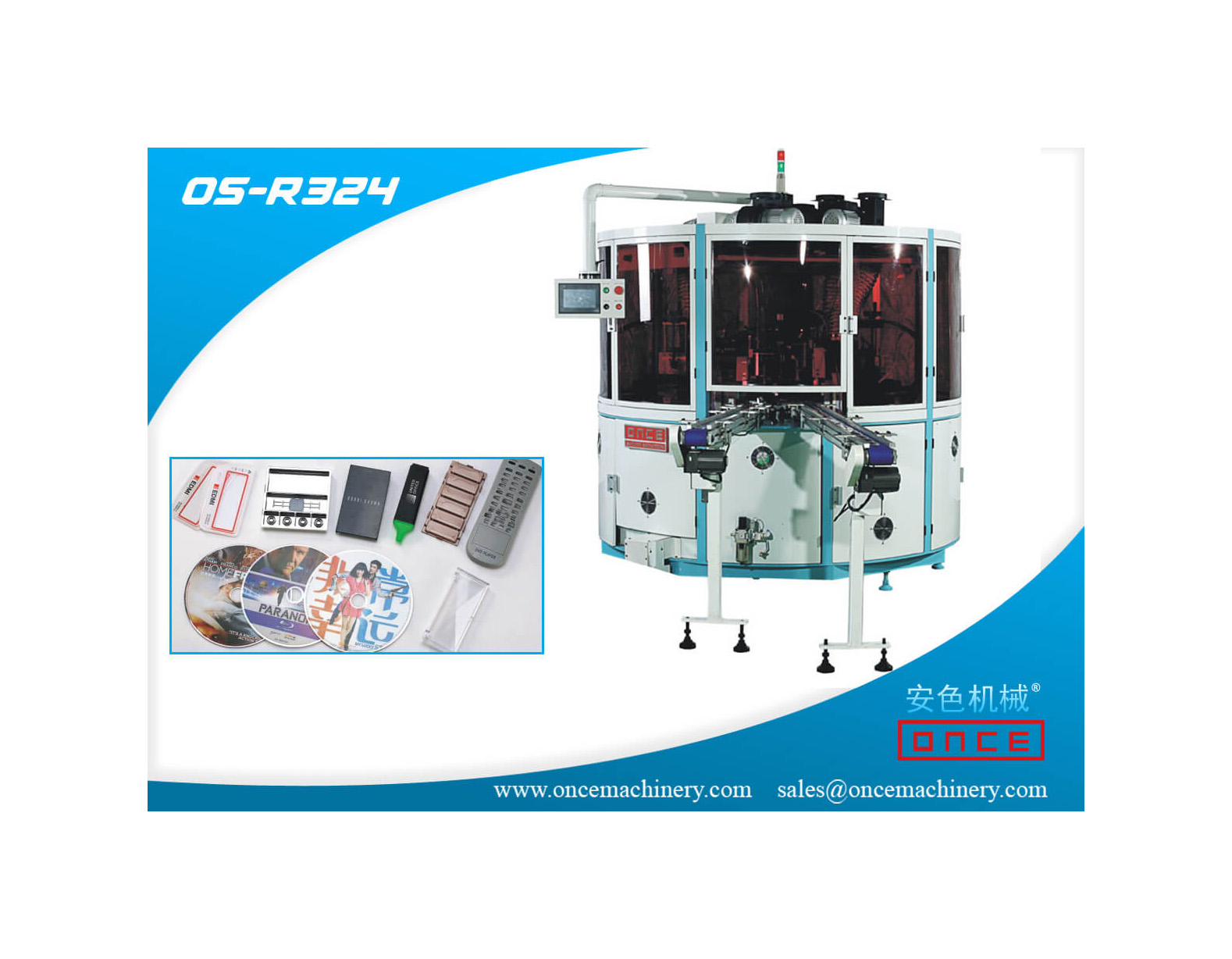

HY-R324 is a fully automatic UV screen printing machine designed for flat surfaces that offers increased productivity and unrivalled value, available print dressing cases, stationery rulers, flat pens, etc. Our HY-R324 is driven by a SANKYO rotary positioning drive system and features a SITI main drive motor with a barrel cam.

The UV screen printing inks are automatically cured with high powered UV lamps positioned after each printing station. After loading of the flat objects there is a pre-flame treating station and de-ionizing / cleaning station (optional) to ensure quality printing results with fewer defects.

Main Specifications of 3 Color Automatic Flat Bed Screen Printing Machine HY-R324

Notes: Specifications are subject to change without further notification, please contact with Huayu Automation before ordering.
