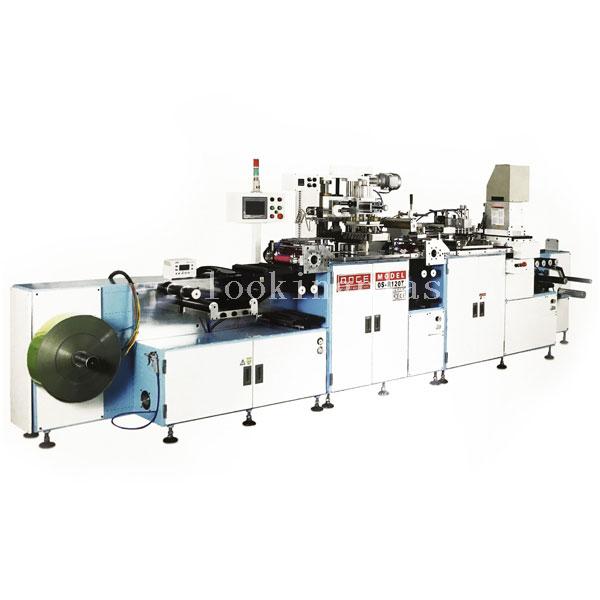

HY-R120T, HY-R320T: Automatic Roll to Roll Screen Printing and Hot Stamping Machine 892 Favorites

Product Categories: Silk Screen Printing Machine
Packaging Details:	Trademark:
Certification:
Payment Terms：
FOB:	HS Code:
Loading Port：Dongguan

Dongguan Huayu Automation Technology Co., Ltd.
Company type： Manufacturer	Credit：
Main products：Screen Printing Machine, Hot Stamping Machine, Labeling Machine, Heat Transfer Machine

Get Quotation

Contact Supplier

To：	Ethel Liu
Subject：
Message：	You can also enter 300 characters

Message has been sent successfully.

Post Buying Request

*Subject:
*Matching Rules:	Categories Keywords
*Inquiry Type:
*Keywords:	+ max five keywords
	Added:
	Note:you can add at least one keywod and most five keywords
*Categories:	Add Delete
*Detailed Description:
	Note: Please write your requirement in detail
Attachments：	+ Note: Attachments will help you get accurate solutions Note: Attachments can help you get accurate solution from suppliers
Max quotations want to receive：
	I agree to share my business card with quoted suppliers

Submit Inquiry

No matched supplier

Public souring

Your inquiry has been submitted successfully but 0 supplier matched at present, you will get quotations from Public Sourcing.

Close

Your inquiry has submited successfully and suppliers have been matched by LookingPlas,You will get the quotations as soon as possible.

Close

You had already registered,no need join again.

Registered successfully.

Sorry only Buyer can register the activities.

Model NO.:	HY-R120T	HY-R320T
Print product size:	Width 280mm	Width 280mm
Max. print area:	L340 x W260 mm	L340 x W260 mm
Max. printing speed:	60 pcs/min	70 pcs/min
Drive:	Mechanical driven	Mechanical driven
Flame treating system:	1 unit	1 unit
Print head:	3 units	3 units
Stations:	24 stations	24 stations
UV system:	3 units electronic UV system, 3KW per each	3 units electronic UV system, 3KW per each
Deionizing device:	1 unit	1 unit
Motor:	ITALY SITI	ITALY SITI
Control system:	OMRON PLC & Touch Screen	OMRON PLC & Touch Screen
Pneumatic parts:	Japan SMC	Japan SMC
Electrical supply:	380V/480V 3phase 50Hz/60Hz	380V/480V 3phase 50Hz/60Hz
Air requirement:	5-7bar	5-7bar
Power consumption:	11 KW	33 KW
Machine dimension:	L5500 x W820 x H1600 mm	L8600 x W820 x H1600 mm
Weight:	2800 KG	4800 KG
