Single slide plate type hydraulic screen changer/melt filter for lastic extruder
1, the structure and working princple of this kind of Film blowing machine used hydraulic fast screen changing filter
This series of screen changer consists of main body, sliding plate, heater unit and
hydraulic unit with accumulator. It is driven by hydraulic system, and the sliding plate
carrying 2 pieces of breaker plates can move linearly in both directions to
achieve screen changing process smoothly
2,Features of this kind of screen changer
1) Compatible with various extrusion production for most polymers at high pressure, temperature, and production throughput.
2)With highly precise design, the screen has good abrasive resistance, good durability under high pressure,ensuring large effective filtration area and improving filtration performance.
3)It works well even under high temperature up to 300 and high pressure up to 50 MPa.
4)Screen changing process completed in a period ≤ 2 seconds with pressure accumulator.

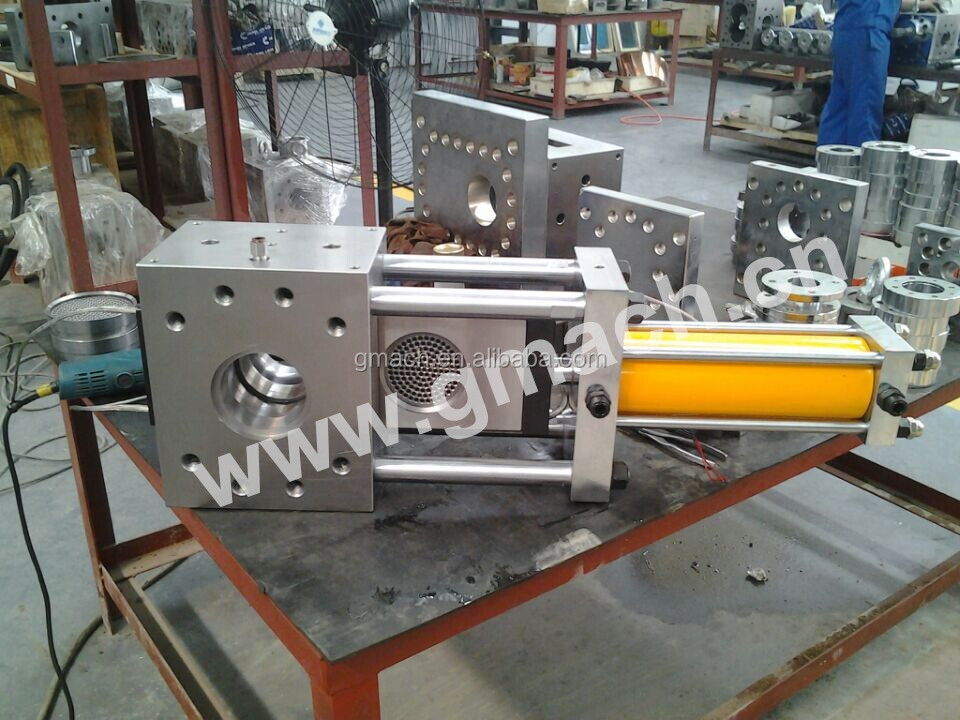

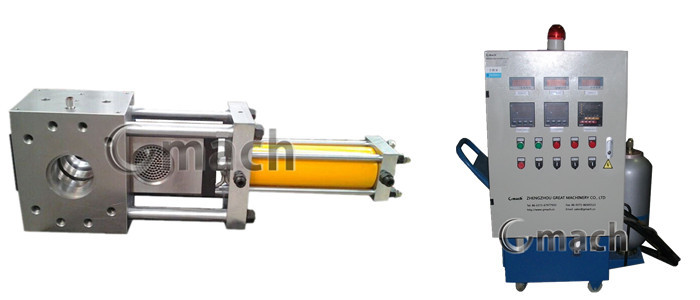

Product show
Single slide plate type hydraulic screen changer/melt filter for lastic extruder
Benifits of this kind of single slide plate type hydraulic screen changer
Fit for all kinds of polymers
Leak-free mold of operation
Flow channel geometry structure without any dead spots
Several sets of screen changer can be controlled by one set of hydraulic unit
Adapters are talior designed for customers
Variety ways of installation to full use of the limited space
Simply controll by a easy operated control handle
Reasonable price and proved technology
Main application fields
Film blowing machine and cast film extrusion machine(Bubble wrap film/ Medical/Food Wrap film)
Sheet (Foam/Strapping/Plastic cardboard)
Coating (Hot melt adhesive)
Pipe extrusion machine( Corrugated/Gas Pipe) and profile
Compounding (Master batch/filler)
Wire and cable extrusion
Tubing (Medical/Industrial/Irrigation)
Fibers ( Monofilament/non-woven fabrics)
Blow molding
Pelletizing (strands and water-ring peleetizing)
Recycling of most polymers

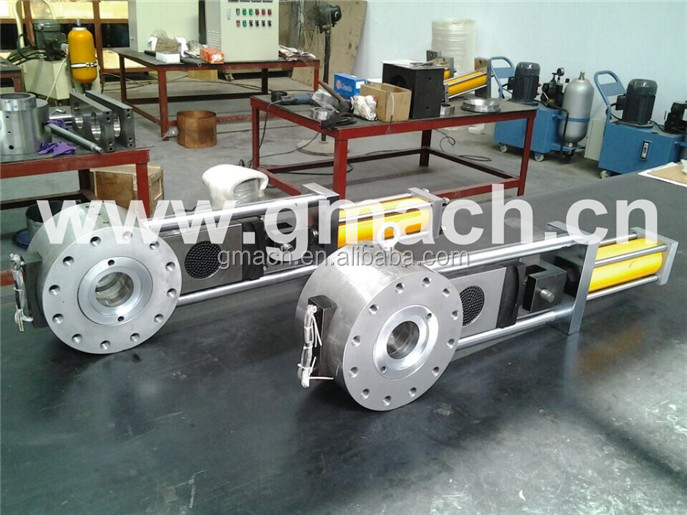

Application show
Single slide plate type hydraulic screen changer/melt filter for lastic extruder
Types
Type | Screen D&A
| Overall dimension(mm) | Heating power
(KW) | Output
(kg/h) |
Dia (mm) | Filtration area(cm²) | L | W | H | L1 |
GM-SSP-70 | Φ70 | 38 | 200 | 170 | 240 | 820 | 3.5/5.8 | 80-200 |
GM-SSP-100 | Φ100 | 78 | 220 | 185 | 280 | 930 | 4.5/6.8 | 150-350 |
GM-SSP-120 | Φ120 | 113 | 260 | 205 | 320 | 1010 | 5.2/7.2 | 220-350 |
GM-SSP-150 | Φ150 | 176 | 300 | 235 | 360 | 1140 | 6.5/8.5 | 350-800 |
GM-SSP-180 | Φ180 | 254 | 320 | 245 | 360 | 1200 | 7.6/9.5 | 550-1250 |
GM-SSP-200 | Φ200 | 314 | 360 | 280 | 420 | 1300 | 8.5/11 | 650-1500 |
GM-SSP-250 | Φ250 | 490 | 450 | 300 | 430 | 1520 | 9.5/12 | 800-2500 |
GM-SSP-300 | Φ300 | 706 | 520 | 380 | 500 | 1660 | 11.5/15.5 | 1200-3500 |
GM-SSP-320 | Φ320 | 803 | 560 | 400 | 560 | 1700 | 13/17.5 | 1500-4000 |
Remark:The output rates depend on the actual individual extrusion process parameters. |
