Description
1. The production line is mainly used to produce various sizes of PVC, UPVC and WPC window and door profiles/frame, rain gutter, corner angle. edge trim tile.
2. But it also can produce PVC cable trunking, ceiling panel, wall panel, window sill, door board, WPC decking, WPC flooring and other sorts of shaped profiles.
3. The width of finished products range from 100mm to 600mm.
4. It features large output, low noise, PLC control system, over current protective. Equipped with famous brand electrical components : Schneider , ABB, SIEMENS, FUJI etc.
Technical Data
Production Line | SJZ55/110+YF240 | SJZ65/132+YF240 |
Power Supply | 380V, 50Hz, 3-phase or customized | 380V, 50Hz, 3-phase or customized |
Extruder | SJZ55/110 | SJZ65/132 |
Screw Diameter | ¢55/110mm | ¢65/132mm |
Heating Power | 4 zones , total 14kw , 50-300°C | 4 zones , total 19kw , 50-300°C |
Main Motor Power | 22kw | 37kw |
Extruder Dimension | 3750*1500*2100mm | 4250*1500*2150mm |
Extruder Weight | 3000kg | 3500kg |
Output | 100-150kg/h | 150-200kg/h |
Max Product Width | 240mm | 240mm |

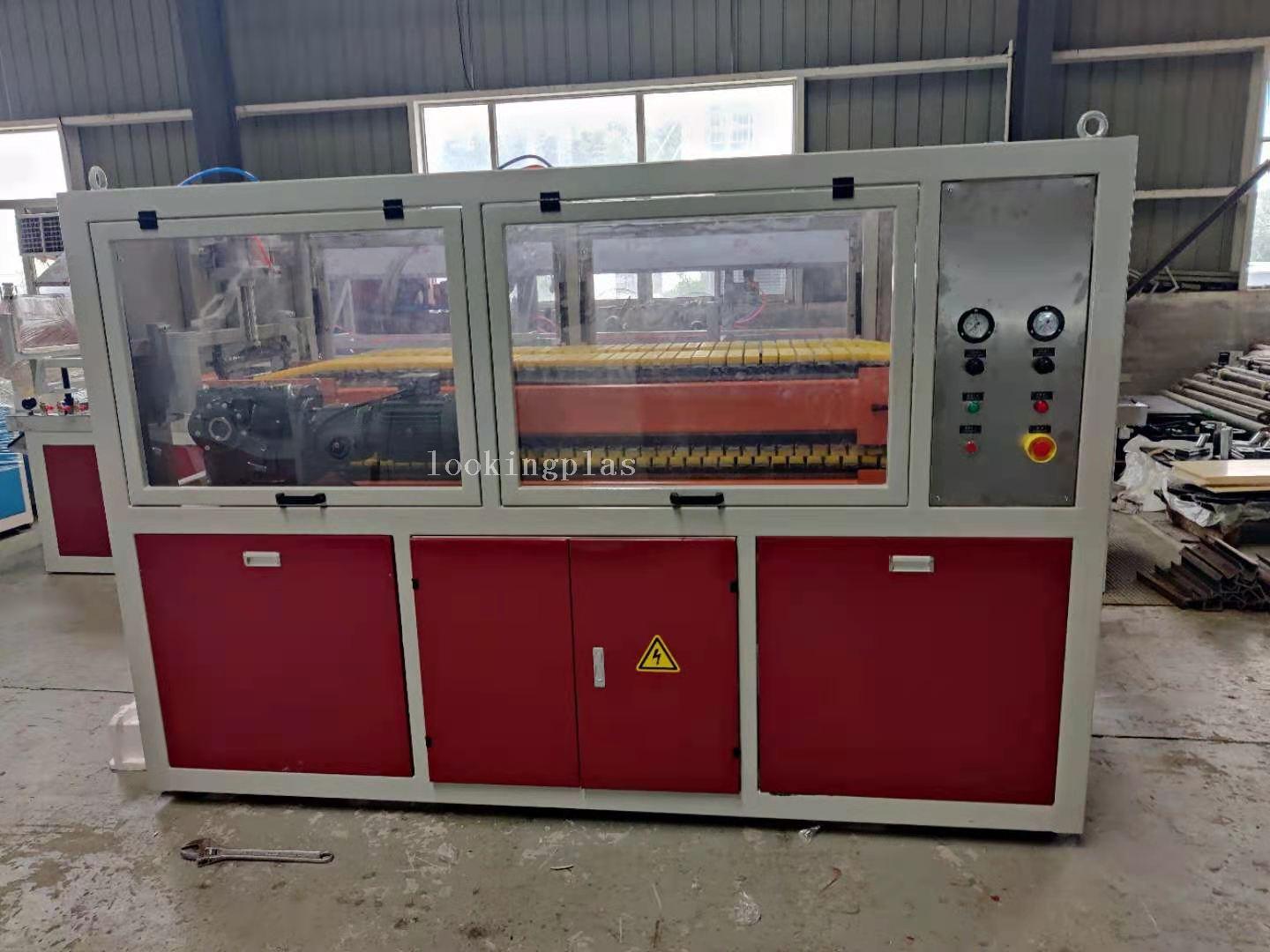

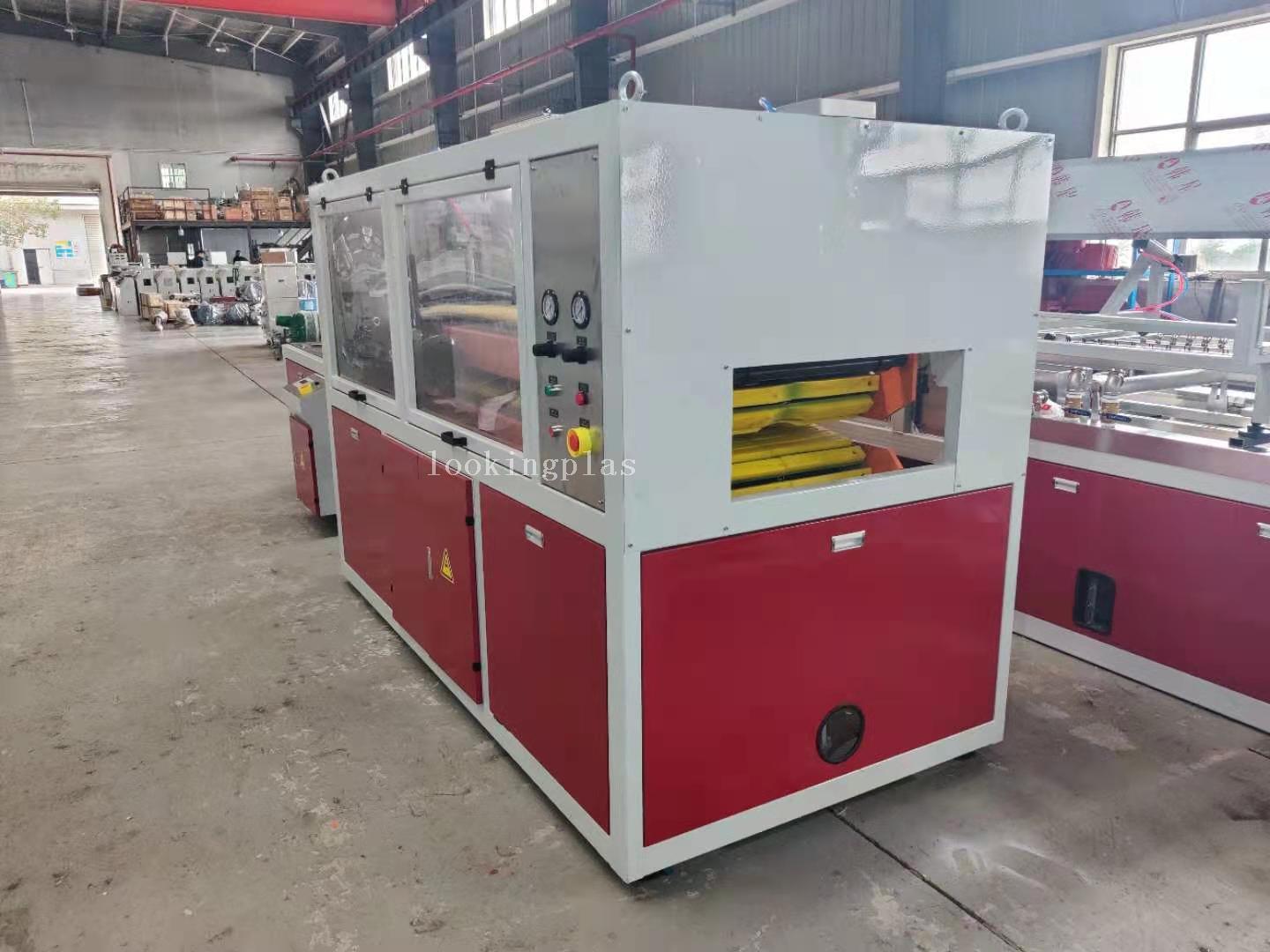

Detailed Images

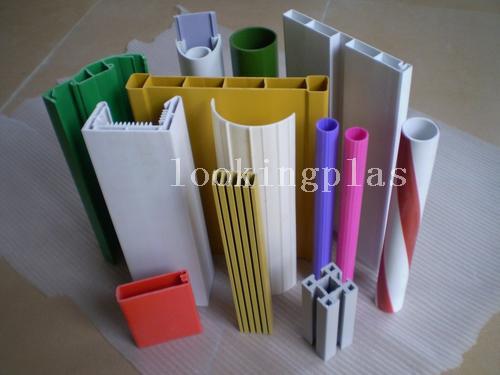

Finished Product

Machine Delivery
