Description
1. This production line mainly used to produce building templates, wide door panel, cabinet board, indoor and outdoor decorative material.
2. The output can up to 600kg to 1000kg every hour, product width 600-1250mm
3. PVC wood-plastic plate collects the advantages of wood and plastic. It not only has appearance of natural wood, but also has the advantage of plastic. Good processing performance, can be sawed and nailed, can be finished with woodworker tools.Its fixed force is clearly stronger than normal wood material. It has physical characteristics,such as resistance to compression, resistance to impact. And its durable function is clearly better than normal wood.Wood-plastic material and its products can be resistance strong acid and alkali, water proof, corrosion resistance, germ can't breed on it. It is not moth-eaten. And it can be aging resistance, static electricity resistance.
Technical parameter
Production Line | SJZ80/156+YF1000 | SJZ92/188+YF1000 |
Power Supply | 380V, 50Hz, 3-phase or customized | 380V, 50Hz, 3-phase or customized |
Extruder | SJZ80/156 | SJZ92/188 |
Screw Diameter | ¢80/156mm | ¢92/188mm |
Heating Power | 4 zones , total 36kw , 50-300°C | 5 zones , total 68kw , 50-300°C |
Main Motor Power | 55kw | 110kw |
Output | 250-400kg/h | 500-800kg/h |
Max Product Width | 800-1000mm | 1000-1250mm |
Extruder Weight | 5000kg | 8000kg |
Extruder Dimension | 4750*1550*2460mm | 5750*1650*2760mm |

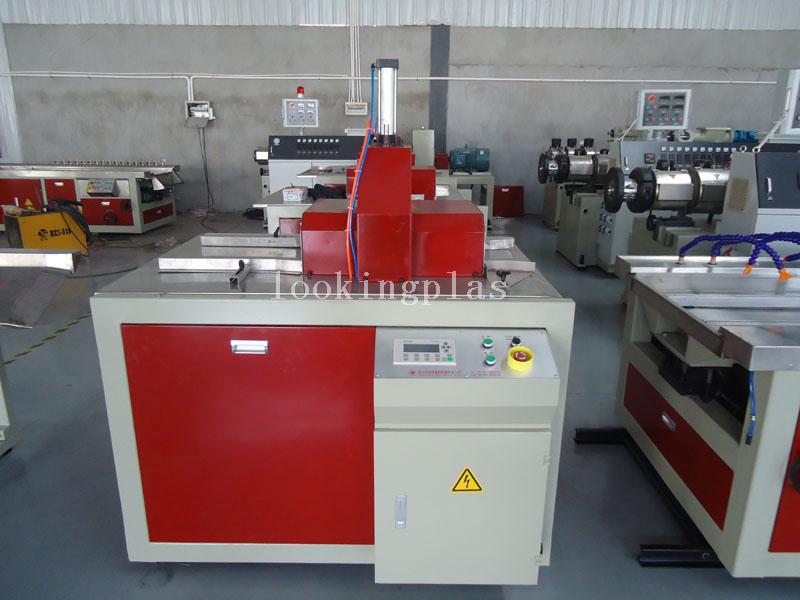

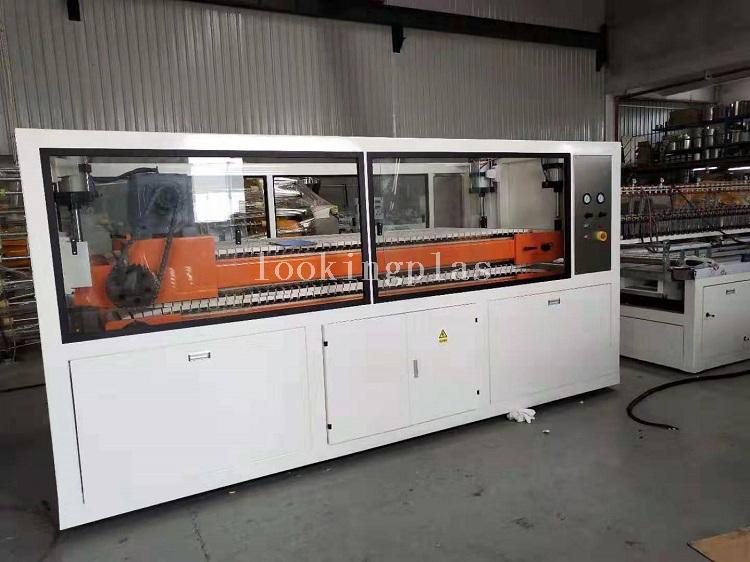

Detailed Images

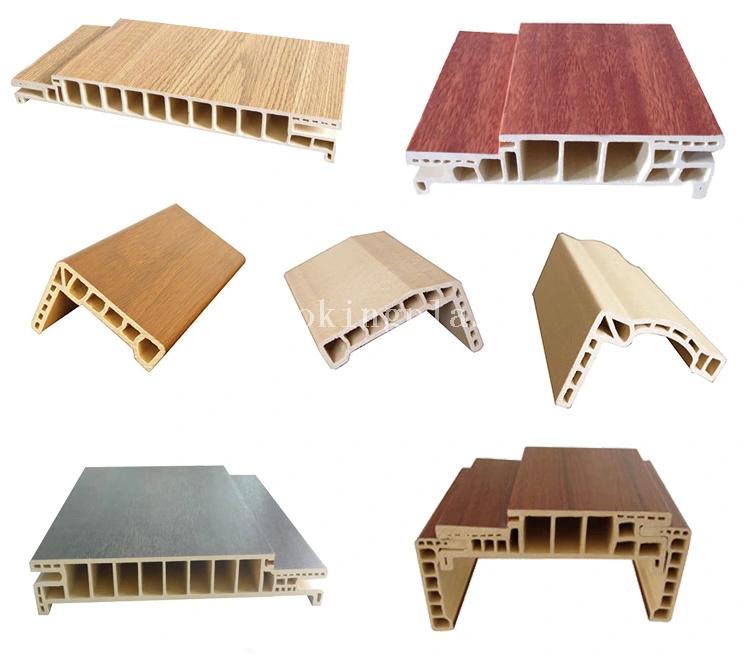

Finished Products

Container Loading
