Application area

PVC series plastic pipe production line can be widely used in the production of agricultural drainage pipe, construction drainage pipe, bellows, wire and cable casing, garden watering pipe, fiber reinforced hose, etc.

Production line

PVC pipe production line equipment mainly by: Twin-screws extruder, Die head, Vacuum calibration tank, Spray cooling tank, Haul-off, Cutter, Stacker(Belling machine), High-speed mixing unit machine, Feeder, and other auxiliary equipment.

Value advantage

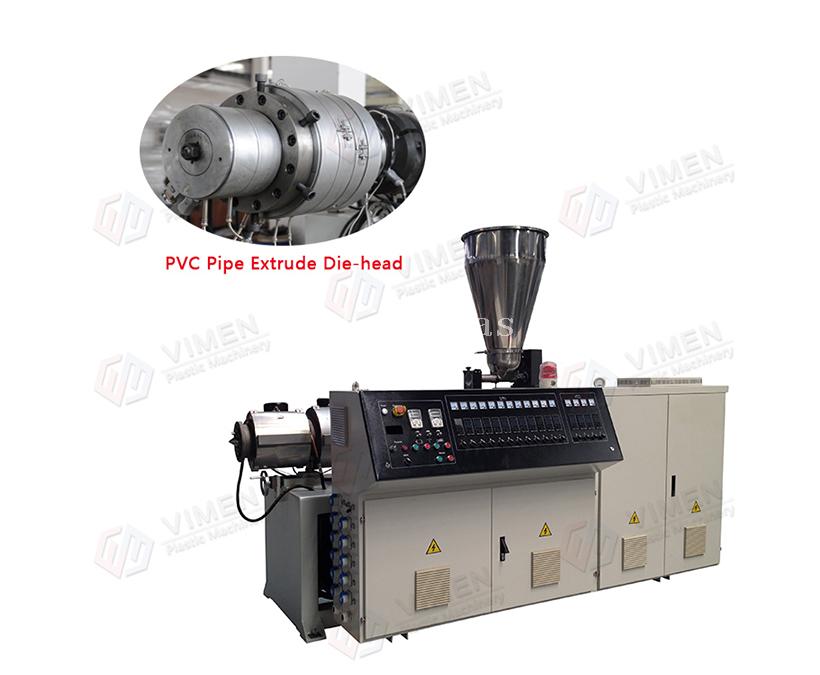

1. Conical twin screw extruder adopts high-speed extruding screw, feeding part adopts twin screw feeding machine, can effectively prevent the hopper outlet bridge phenomenon, ensure fast feeding, high extrusion output, low energy consumption.

2. The mold is introduced from Europe, the design is reasonable, equipped with high-speed sizing sleeve, and the molding effect is good.

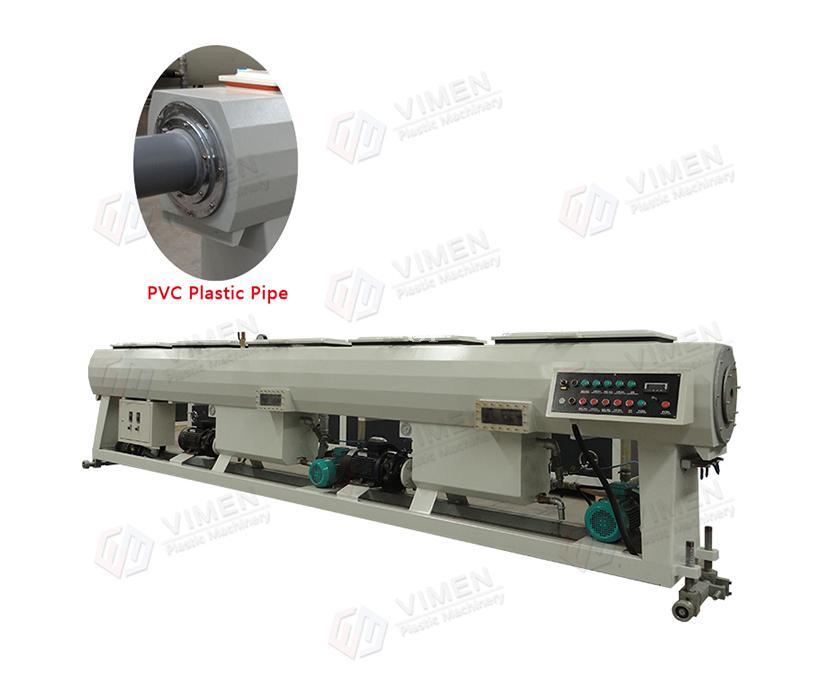

3. True empty box, spray box adopts advanced pipe wiring design and adjustable nozzle, cooling effect is better.Automatic control of water temperature and water level in the box, double volume filtration, gas-water separation device, centralized inlet and drainage design.

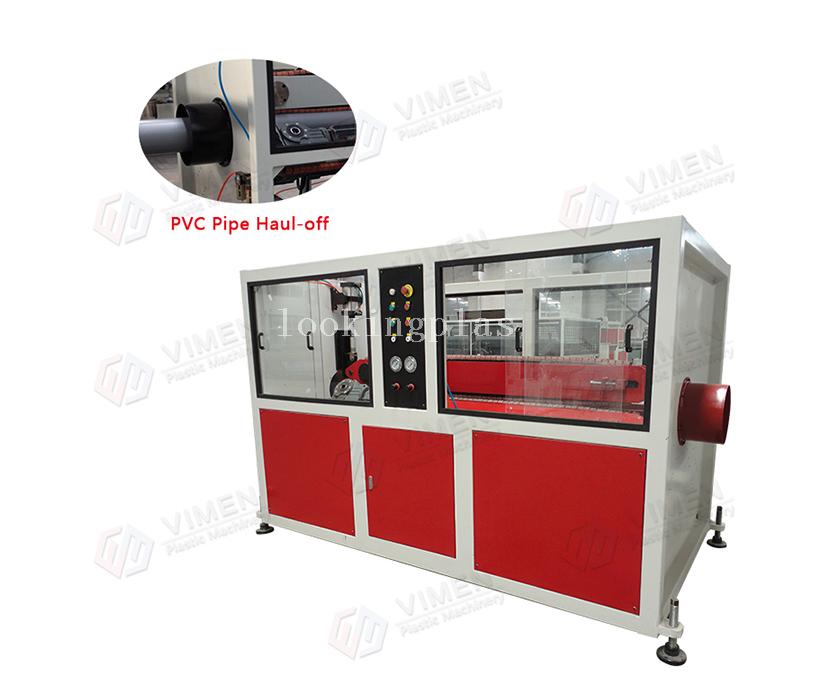

4. According to the different pipe diameter of the products, the tractor is equipped with two claws, three claws, four claws, six claws, eight claws, ten claws and other traction methods. The high quality rubber block is used for stable traction.

5. The cutting machine has three ways for customers to choose: blade shapeless cutting, turning tool dust-free cutting and saw blade saw-type cutting.

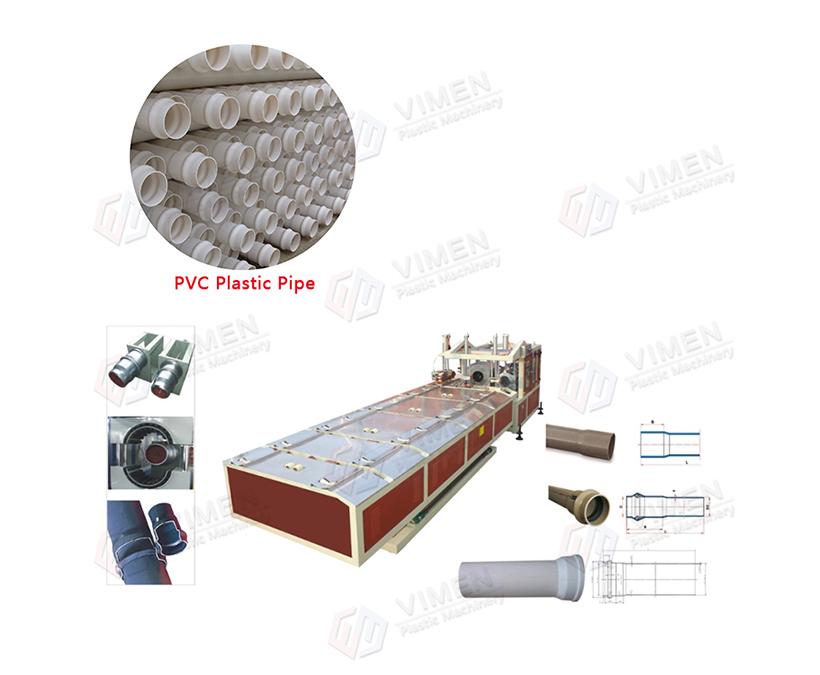

6. The belling machine can choose online flaring and offline flaring according to customer requirements.The following specifications can be expanded: U mouth (straight mouth), R mouth, rectangular mouth.

Technical parameter
