80×173 PVC (wood-plastic composites) Skinning foam board Production Line

Qingdao precision machine co.,ltd is a professional manufacturer of pvc plastic board extrusion line. The company is proud of these products: pvc wpc (wood plastic composit) crust foam board extrusion line, pvc crust foam board extrusion line, pvc wood plastic foam board extrusion line, pvc building board extrusion line and pvc free foam board extrusion line.With good quality and competitive price

PVC crust foam board is one kind of panel product which is used PVC resin, wood powder or (vegetable fibre) as the main materials, filled in Caco3, and added necessary lubrication, stabilize etc auxiliaries, after fully stirred heated and mixed, dispersed evenly by the high speed mixer, then heated and plasticized by the extruder and mould to form the panel.

It is widely used for building templates, industrial packing, furniture cabinet, outdoor landscapes material and indoor decoration and so on.

For the techinical protection,pls contact us directly for more information

Parameters and merits of PVC (wood-plastic composites) Skinning Expansion Plate Production Line

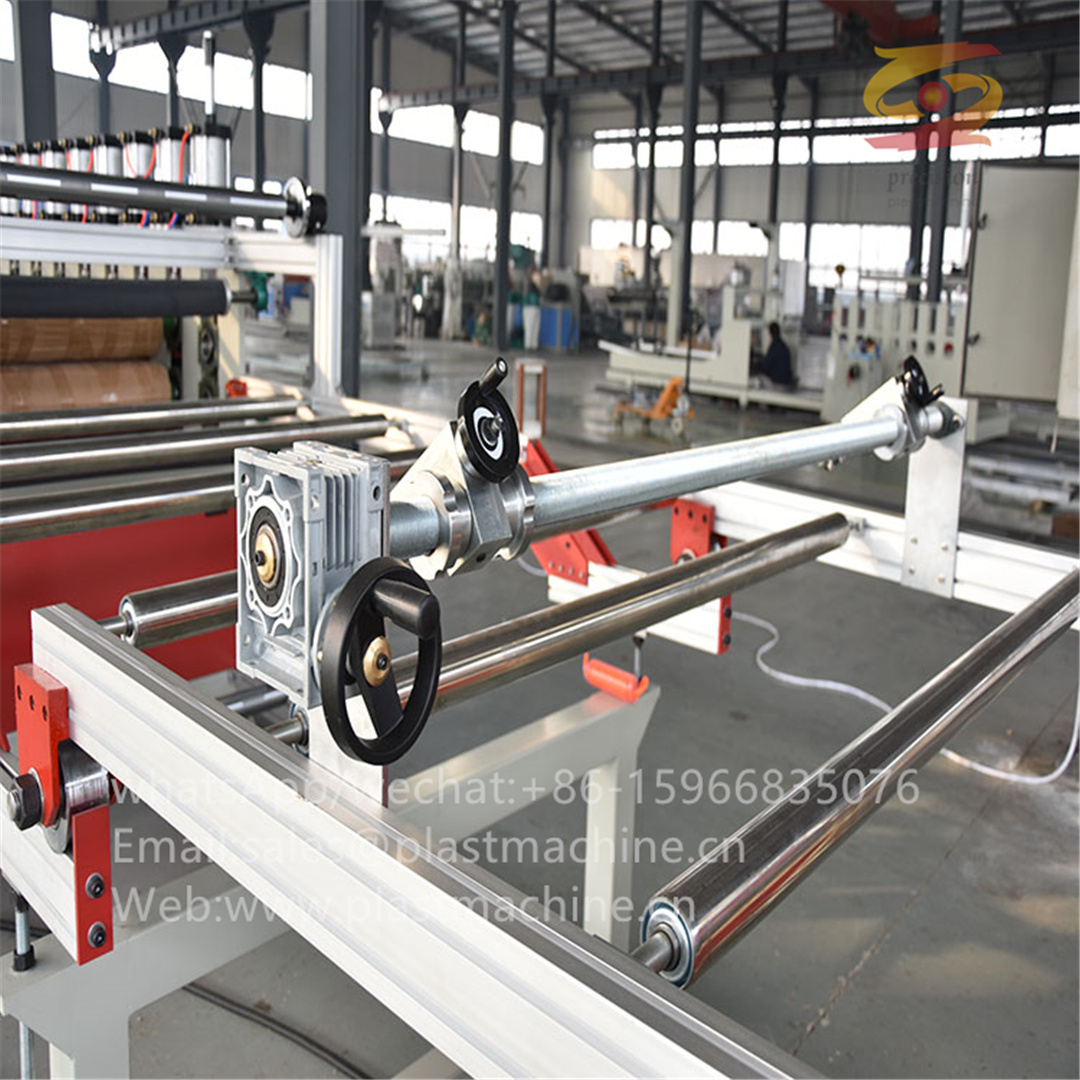

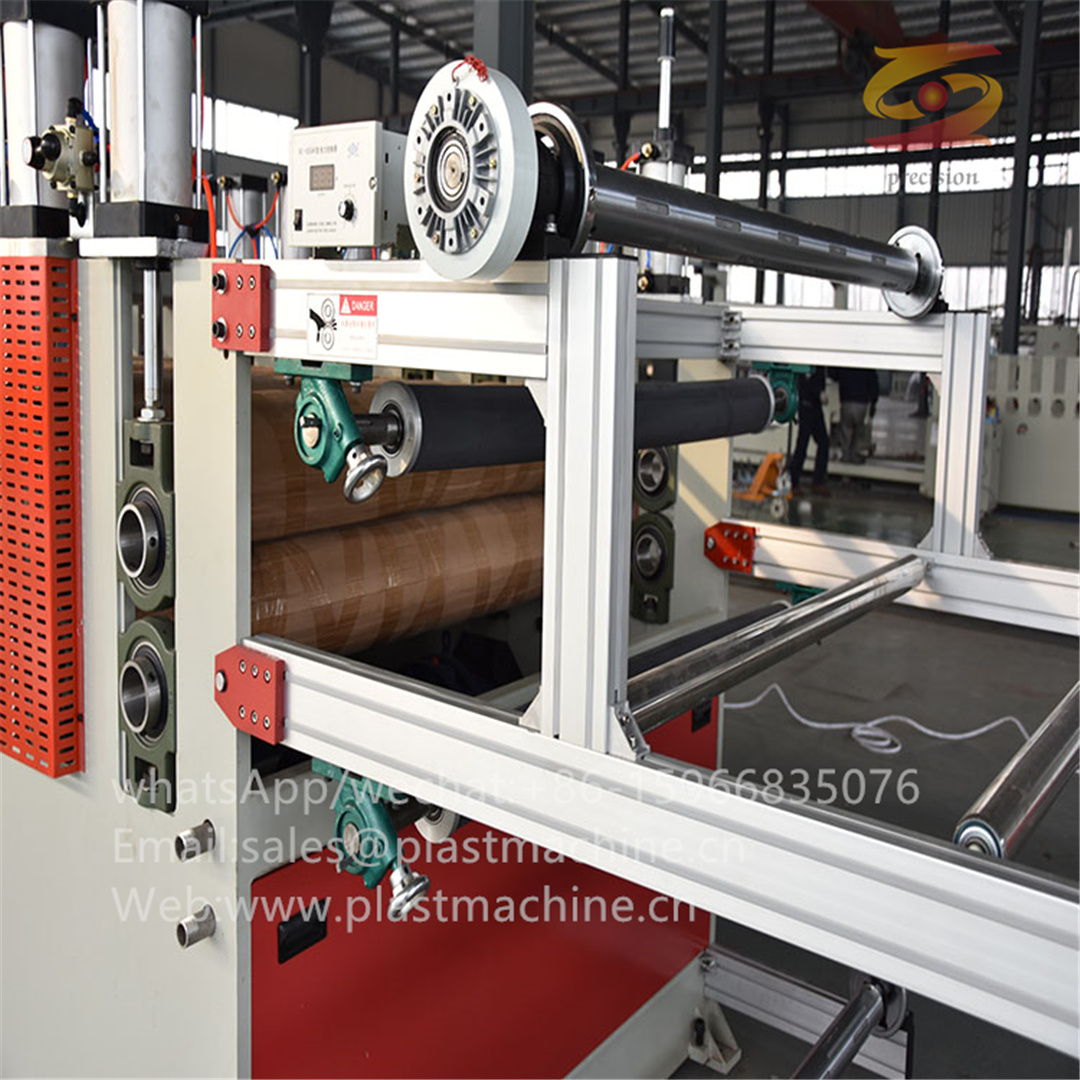

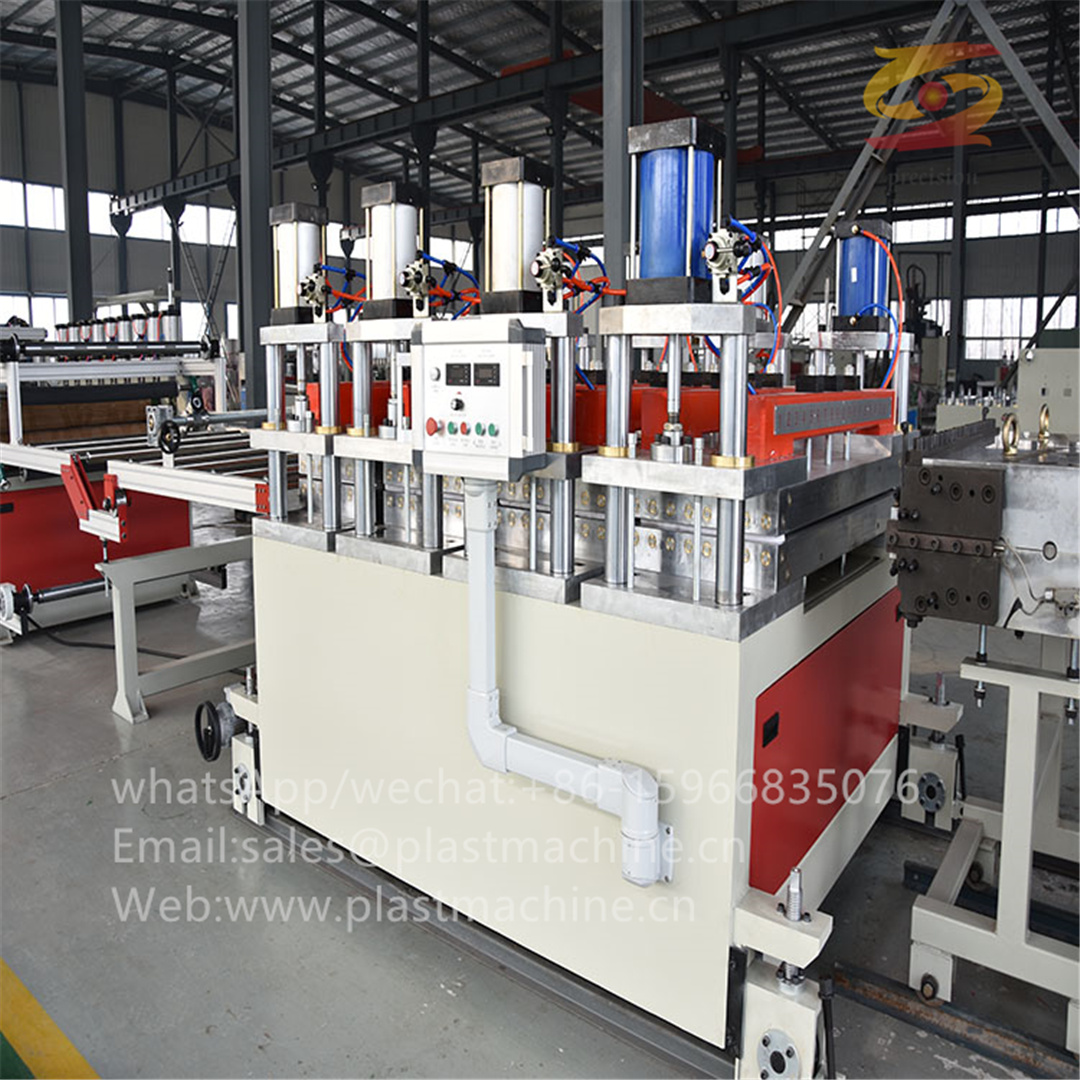

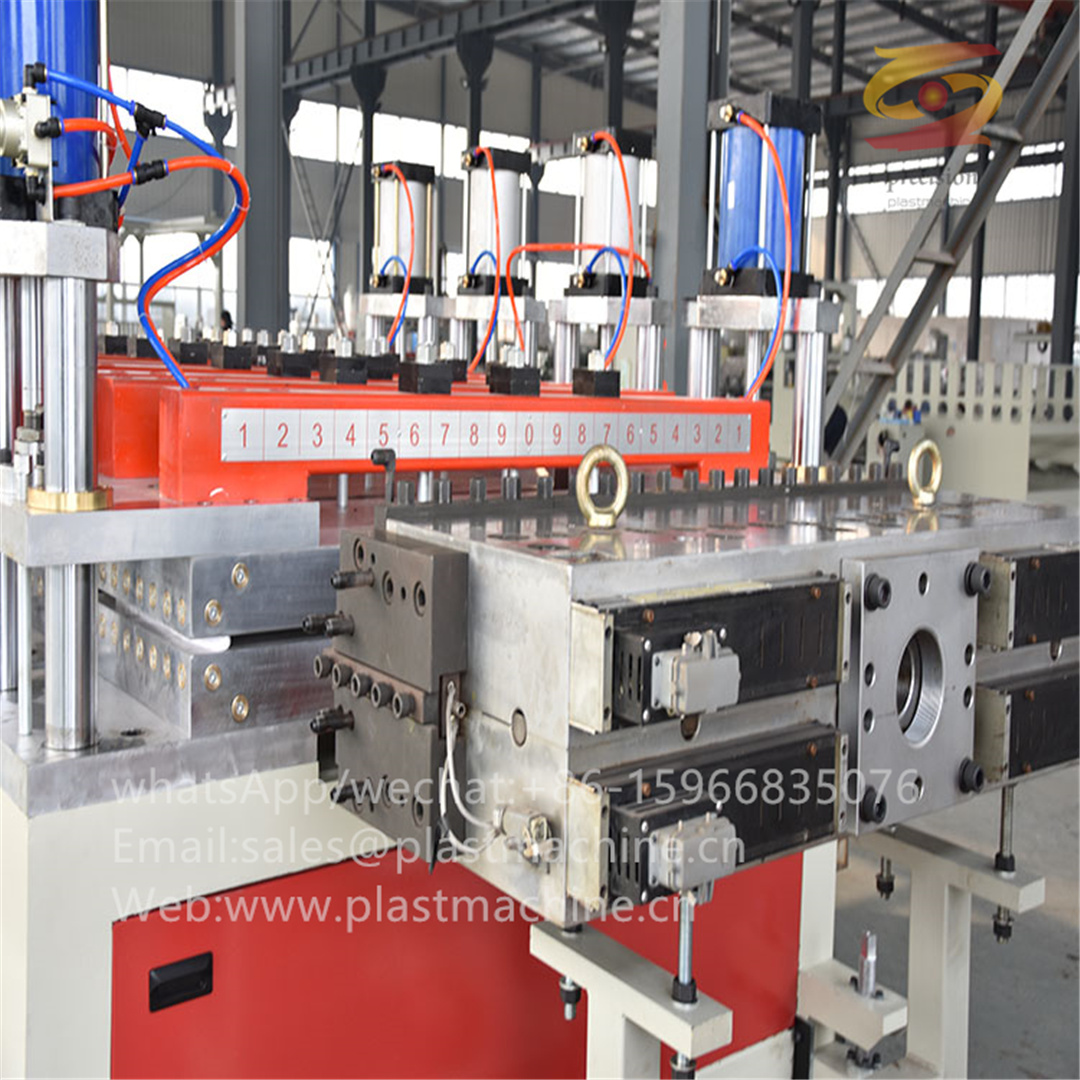

This production line composes of conical twin screw extruder, plate dies, forming table, hauler and cutter. The extruder adopts the specially designed screws, improving the integration and plasticizing between PVC and wood powders, and enhances the rigidity of products significantly. The products enjoy a promising future for applications.

Product width 1,220mm

Product thickness 3-30mm

Extruder model SJSZ-80×173

Maximum extrusion output600Kg/h

Main motor power 90KW

Dimension L × W × H =22m×2m×2.6m

Weight 26T

Installed capacity 165KW/h

Parameters
