AS25 Lab 3D filament Extruder 804 Favorites

Product Categories: Single Screw Extruder
Packaging Details:wooden case	Trademark:Aisa screw
Certification: Other,
Payment Terms： L/C, T/T, D/P, D/A, Western Union, Paypal, Money Gram , Other,
FOB: USD $	HS Code:
Loading Port：ningbo

NINGBOASIASCREWMACINERYCOLTD
Company type： Manufacturer	Credit：
Main products：screwbarrel/grearbxo/filament/

Get Quotation

Contact Supplier

To：	Cai
Subject：
Message：	You can also enter 300 characters

Message has been sent successfully.

Post Buying Request

*Subject:
*Matching Rules:	Categories Keywords
*Inquiry Type:
*Keywords:	+ max five keywords
	Added:
	Note:you can add at least one keywod and most five keywords
*Categories:	Add Delete
*Detailed Description:
	Note: Please write your requirement in detail
Attachments：	+ Note: Attachments will help you get accurate solutions Note: Attachments can help you get accurate solution from suppliers
Max quotations want to receive：
	I agree to share my business card with quoted suppliers

Submit Inquiry

No matched supplier

Public souring

Your inquiry has been submitted successfully but 0 supplier matched at present, you will get quotations from Public Sourcing.

Close

Your inquiry has submited successfully and suppliers have been matched by LookingPlas,You will get the quotations as soon as possible.

Close

You had already registered,no need join again.

Registered successfully.

Sorry only Buyer can register the activities.

序号 Model	项目名称 Item	参数描述 Parametric description
1	工作电压working voltage	220V
2	适用原料 Materlal	ABS,PLA,PETG etc
3	生产能力 Production Capacity	1 kg/h
4	冷却方式 Cooling mode	水冷 water-cooling
5	产品规格 Product specification	1.75mm, 2.85mm
6	偏差范围 Deviation Area	≤±0.05mm
7	装机功率 Installed Power	7 kw
8	设备尺寸 specification (LWH）	2.45m×0.6m × 1.7m

Item	Name	基本要求basic requirements
1	工作场地work place	场地平整site formation
2	场地面积area	> 4m* 0.6m * 1.7m
3	温度和湿度 temperature and humidity	温度≤40℃,湿度 ≤90% Temperature ≤40℃, humidity ≤90%
4	电线/电缆 Cables	客户需提供接入设备的电源端口 The customer shall provide a power port to access the device
5	进/排水 culvert system	客户需提供连接设备的进/排水端口 Customer needs to provide inlet/drain port to connect the equipment
6	齿轮箱润滑油 Gearbox oil	客户自备（需定期更换）Customer-owned (need to be replaced regularly)

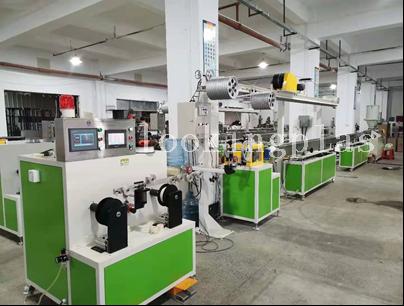

Item	Name	Quantity	Remark
1	SJ25/25 单螺杆挤出机 SJ25/25 single screw extruder	1
2	模具 Mould	2
3	冷却水槽 Cooling tank	1
4	激光测径仪 Laser dia-testing machine	1
5	硅胶辊牵引机 · Silicone rubber roller haul off	1
6	收卷机 Winding machine	1
7	随机配件 Random accessories	1

Model	SJ25/25
Materlal	ABS,PLA,PETG etc
