Extrusion Blow Molding Machine model

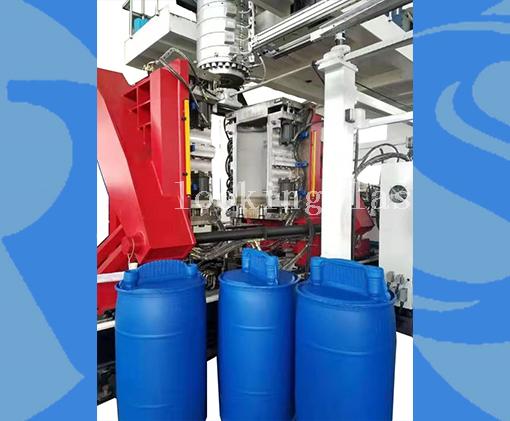

Target Product:Jerry can,drum
Max Conatiner Volume: 160Liters
Raw Material: PE, PP,ABS,HMWHDPE
Delivery time: 60 Days
Guarantee Time: One Year
Accumulator head system:Head mode: Single cylinder center-feeding accumulator die head
Electric system:Japan Mitsubishi PLC+ Japan Mitsubishi temperature control module+Taiwan Weinview Micro-computer
Clamping system:Fixed clamping sytem.Mold platen fixed on linear guide rails & ball bearing sliders to increase action smoothness and position precision.
The end positions & slow speed positions are controlled by electric transducer.
Pneumatic & water supply system:The necessary air pressure is 0.8~1.0 Mpa, air consumption is 0.8~1.0 M3/min.The necessary water pressure is 0.3 Mpa, water consumption is 85 L/min
Energy save system:This kind machine fixed China Yunsheng hydraulic servo motor system+Japan Sumittomo gear pump+Taiwan Delta hydraulic servo drive,low power consumption(it will save 10kilowatt/hour),low noise,low oil temperature,long lifetime,fast response and working more stable
Suitable Material | PE,PP,ABS,HMWHDPE |
Machine Size | 7.5*3.5*5.7m |
Machine Weight | 22Tons |
Voltage Suitable | Customer Specified |
Screw Diameter | 120mm |
L/D Ratio | 30:1 |
Extruder Heating Power | 32KW |
Number of Extruder Heating Zone | 5zone |
Extrusion Motor Power | 90KW |
Plasticizing Capacity | 320Kg/Hour |
Clamping Force | 680/1360KN |
Platen Size | 1400*1600mm |
Platen Opeing Stroke | 600-1400mm |
Max Mould Size | 1200*1900mm |
Acumulator capacity | 20Liter |
Head heating Power | 39KW |
Number of Head Heating Zone | 6Zone |
Max Die-pin Diameter | 500mm |
Total Power | 206KW |
Average Energy Consumption | 95KW |
Air Pressure | 1.0Mpa |
Air Consumption | 1.0m3/min |
Cooling Water Needed | 180L/min |
Loading Reference | 40'HC*2 |

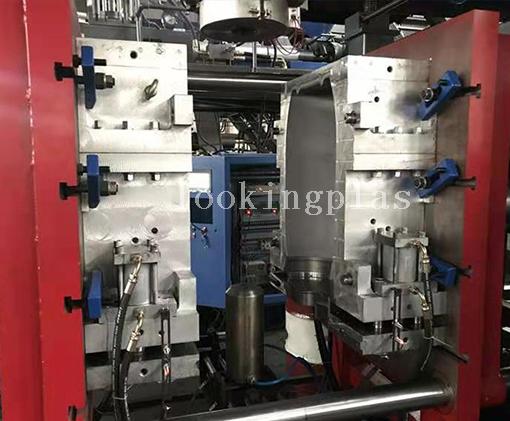

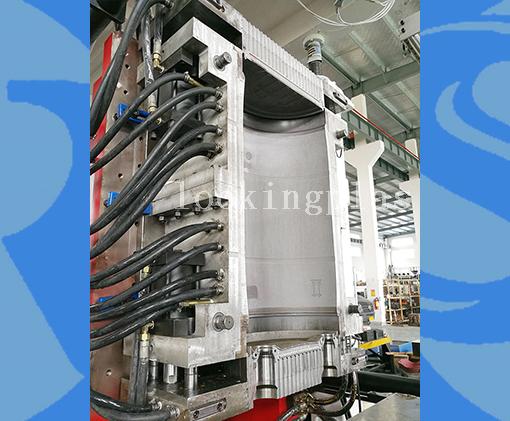

Double ring drum blow Mold design:
We have our own mould workshop, professional mould design department and large-scale samples room, Support for customized services.Welcome to our factory to visit the samples room.Also,you can select our samples to manufacture moulds.
Drum blow molding machine filter system:
The built-in fittings have precision multi-stage filtration system can be effectively to remove impurities in material.No other impurities are found on the surface after blow molding.

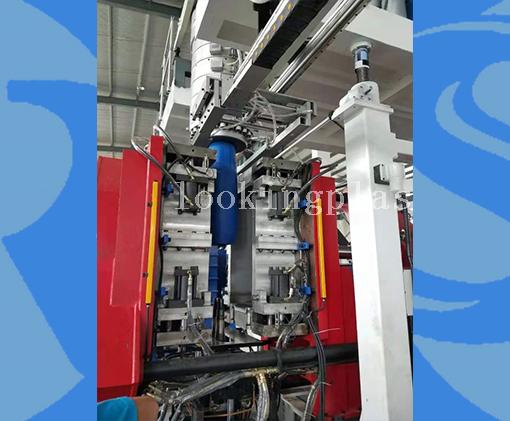

Extrusion system of drum blow molding machine:
Raw material can be uniformly extruded through our wall thickness control, the effect of product will be more better after finish blow molding.
About debugging of blow molding machine:
We will debugging the machine according to the buyer's requirements about product at debugging stage .After the buyer confirms the samples, will enter the delivery stage
Our engineers can go overseas for debug-ging,buyer can also dispatch engineers to our factory to learn the operation
