This series of blow molding machine is applicable for PE etc raw material,and capacity between 10L and 50L.It is widely used in plastic mannequin head production, and medium-sized plastic hollow products.
This type of blow molding machine adopts two pull-rod type closing-mold device by rack and pinion system.The large setting platen is suitable for various sizes of molds.
Basic Specification of mannequin head blow molding machine:
(1)Accumulate die head
(2)Robort arm(optional)
(3)Multi-layer(optional)
(4)MOOG 100 points parison controller
(5)Servo system
Working condition of mannequin head blow molding machine:
Power Supply: 380v/50hz/3ph(customized)
Water cooling:15HP water chiller
Air compressor:0.6Mpa
Plastic mannequin accumulator head extrusion blow molding machine parameter:
1. Screw& Barrel: High quality nitriding steel 38CrMoAlA for long working life.large L/D ratio design,ensure material equally processed, extruder stably.
Die –head:First-in First-out(FIFO),center-feeder/customized design.
2. Drive mode: inverter + hard gear surface decelerator,lower consumption,low noise,balanced and stable screw rotation.
3.Temperature controller:PID&PWM heating model,accurate control
4.Clamping system: Four tie rod clamping,guide rails positioning accurate,YUKEN hydraulic system.
5.PLC and HMI: Adopt PLC to control the action program of the whole machine; adopt HMI for communication, parameter setting, modification and picture display;
6.Electric Parts:SCHNEIDER Brand,high reliability,long working life.
Category | Item | Unit | Parameters |
Basic Specification | Raw material | ------- | HMWHDPE/HDPE |
Max container capacity | L | 100 |
Weight | T | 17T |
Dimension(L×W×H) | m | 5.5x2.9x4.2 |
Extrusion Unit | Diameter of screw | mm | 100 |
L/D of screw | ------ | 30:1 |
Plasticizing capacity | Kg/hour | 100 |
Barrel screw material | / | 38CRMOALA |
Extrusion Driving power | Kw | 45 |
Extruder Heating power | Kw | 21 |
Die Head | Accumulator capacity | L | 10 |
Heating zones | piece | 4 |
Power of die heating | kw | 18.5 |
Head material | / | 38CRMOALA |
Clamping Force | Mould thickness | mm | 600 |
Platen opening stroke | mm | 1300 |
Max mould size | mm | 800x1200 |
Clamping force | KN | 500 |
Power | Max drive | kw | 22 |
Total Power | Kw | 100 |
Average consumption | Kw | 55 |
Pressure of air source | Mpa | 0.8 |
Air consumption | m3/min | 1.2 |

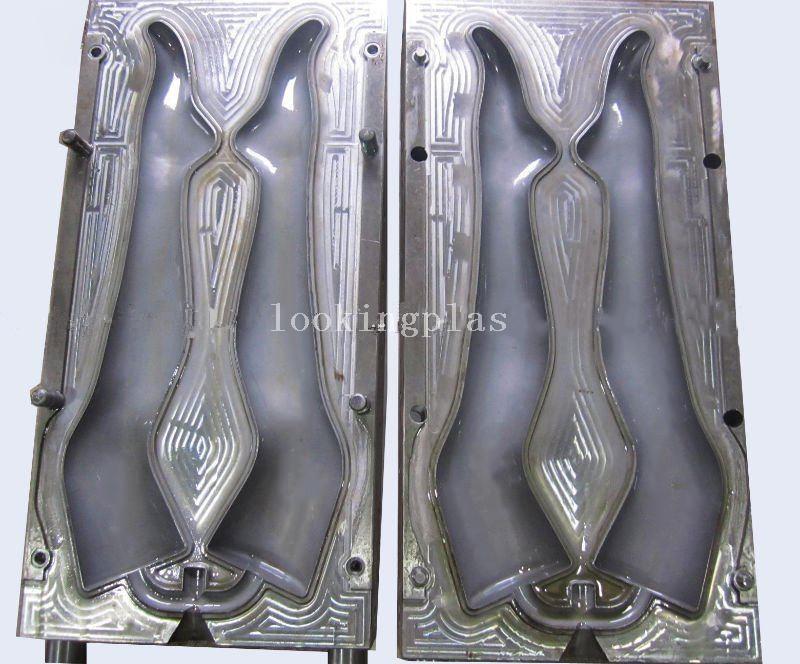

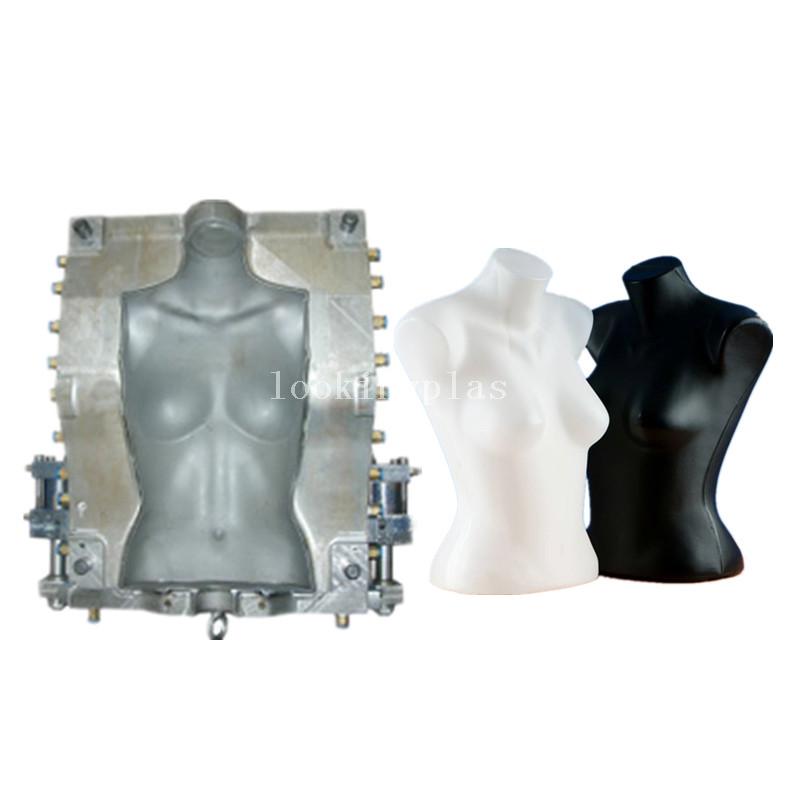

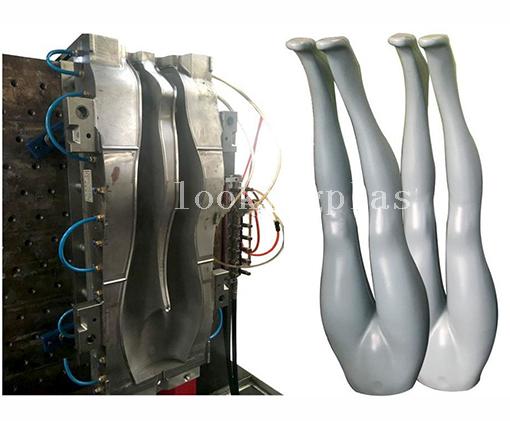

Plastic mannequin blow mold:
