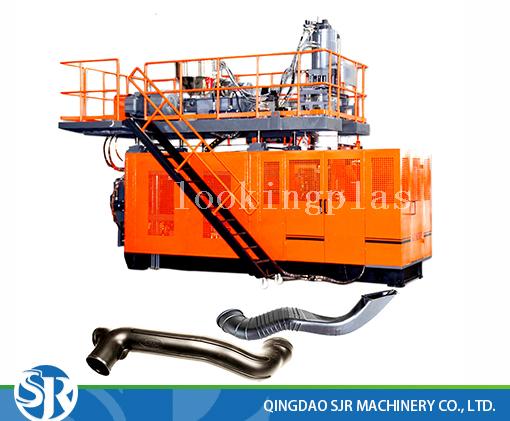

automobile HDPE intake pipe air duct blowing molding machine,air duct extrusion blow molding machine,Car Air Filter Hose blow molding machine, Air Vent Duct hose blow molding machine, Air Intake Hose blow molding Making Machine,car air intake cold pipe ducting blow molding machine,Car parts three-dimension plastic hose curved pipes making blow-molding machine
Performance and advantages of car air duct pipe blow molding machine:
-Suitable for producing different Car shaped pipe fittings products, like the automotive oil filler pipe, air ducts pipe and others.
-Finished product less or without scrap for strong strength.
-Adopt high output extrusion system, accumulating die head.
Target Material | HDPE/PP |
Machine Size | 5.4x2.5x3.9 m |
Machine Weight | 13.2 Tons |
Voltage Suitable | Customer Specified |
Screw Diameter | 90 mm |
L/D Ratio | 24:1 |
Barrel Heating Power | 21.4 KW |
Extrusion Motor Power | 37 KW |
Plasticizing Capacity | 140 KG |
Clamping Unit Structure | Diagonal 2 Tie Bars Central Clamping |
Platen Size | 900x950 mm |
Opening Stroke | 450~1050 mm |
Clamping Force | 360 KN |
Max Mould Size | 700x1250 mm |
Accumu-head Volume | 5.0 L |
Max Ejection Weight | 3.75 KG |
Max Die Diameter | 350 mm |
Head Heating Power | 21.3 KW |
Total Power | 106 KW |
Average Energy Consumption | 33.5 KW |
Compressed Air Needed | 0.8Mpa / 1.2m3 |
Cooling Water Needed | 5.5 m3/H |
Loading Reference | 40’HQ |

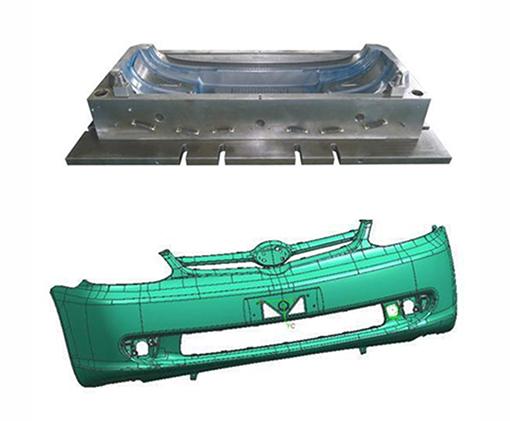

Car parts blow molding products picture:
