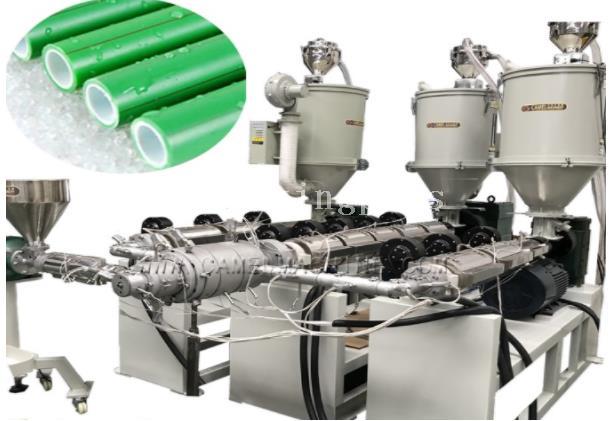

PPR Glass Fiber Reinforced Pipe Machine Brief Description:

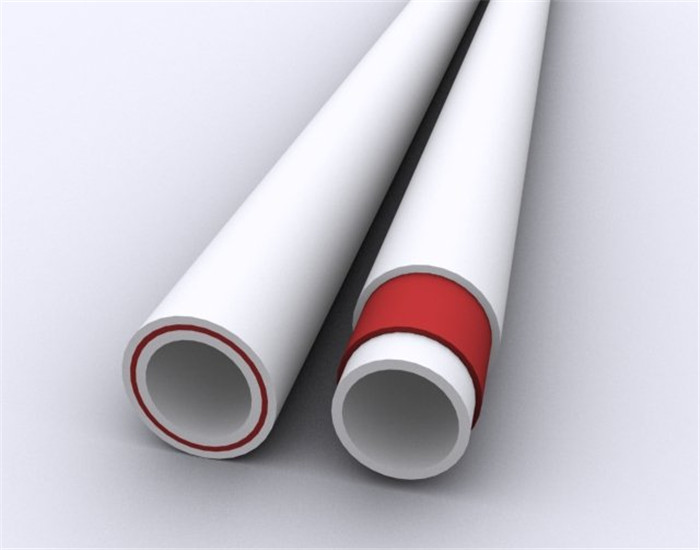

PPR Glass Fiber Reinforced Pipe Machine for production of three-layer pipes reinforced with fiberglass. "Fiber PPR" PPR-GF (Glass Fiber) is a mixture of polypropylene randomly copolymer and glass-filled polypropylene.
Field of application: Pipes for pressure water supply. (For hot or cold water supply, for heating)
Pipe diameters: F16-63mm F75-110mm
Pressure up to 25 atm. At 40 ° C.
Operating temperature - up to 95 ºС.
Unfazed bundle;
Absence of swellings and blisters;
Fully compatible with polypropylene and combined fittings.
High speed of installation, as there is no need for sweeping.
Low coefficient of linear thermal expansion with respect to PPR pipes (by 75%).
Technical specifications:
1. Recyclable material: Polypropylene, fiberglass.
2. Diameters of the produced pipe: 20, 25, 32. 40. 50. 63, 75, 90, 110 mm.
3. The ratio of the layers (PP / glass fiber / PP): 40% -20% -40%
4. Productivity: 1.6-15m / min
5. The maximum productivity: 250kg\h
6. Installed power: 150kw
7. Line dimensions: 35,000 * 1400 * 2750(mm)
Sale, commissioning, warranty and post-warranty service.


PPR Glass Fiber Reinforced Pipe Machine Main technical parameter
Model | Pipe range(mm) | Haul-off speed(m/min) | Total length(m) | Output capacity(kg/h) | Total power(KW) |
SJSZ63 | 20-63 | 1.2-12 | 35 | 100-150 | 140 |
SJSZ110 | 75-110 | 0.8-8 | 40 | 150-180 | 180 |
SJSZ160 | 75-160 | 0.35-3.5 | 52 | 150-240 | 200 |

PPR Glass Fiber Reinforced Pipe Machine Inquiry:
