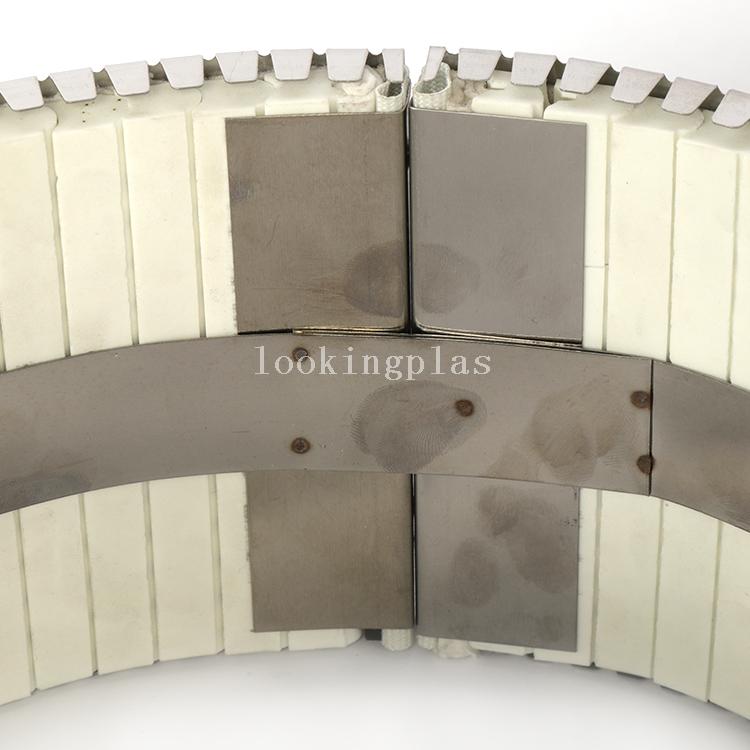

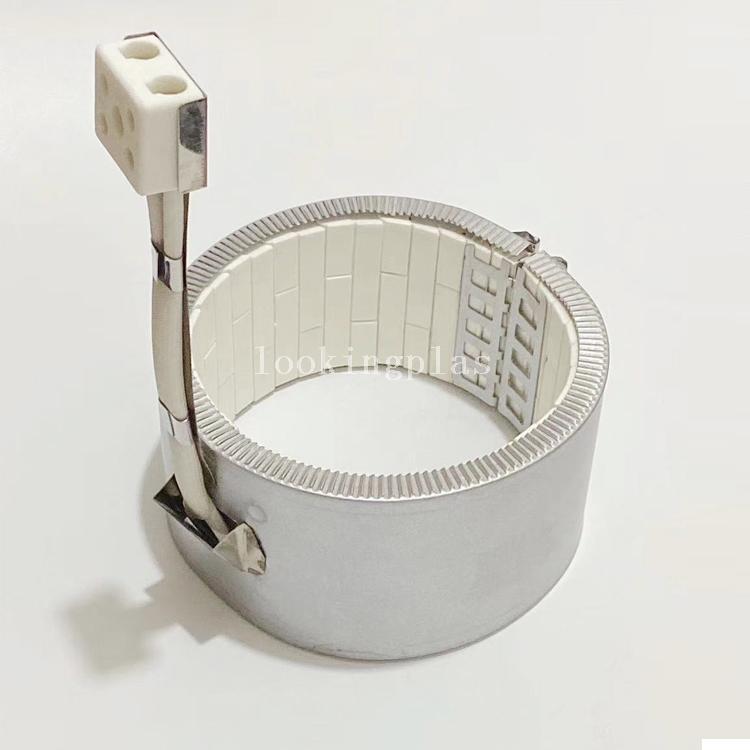

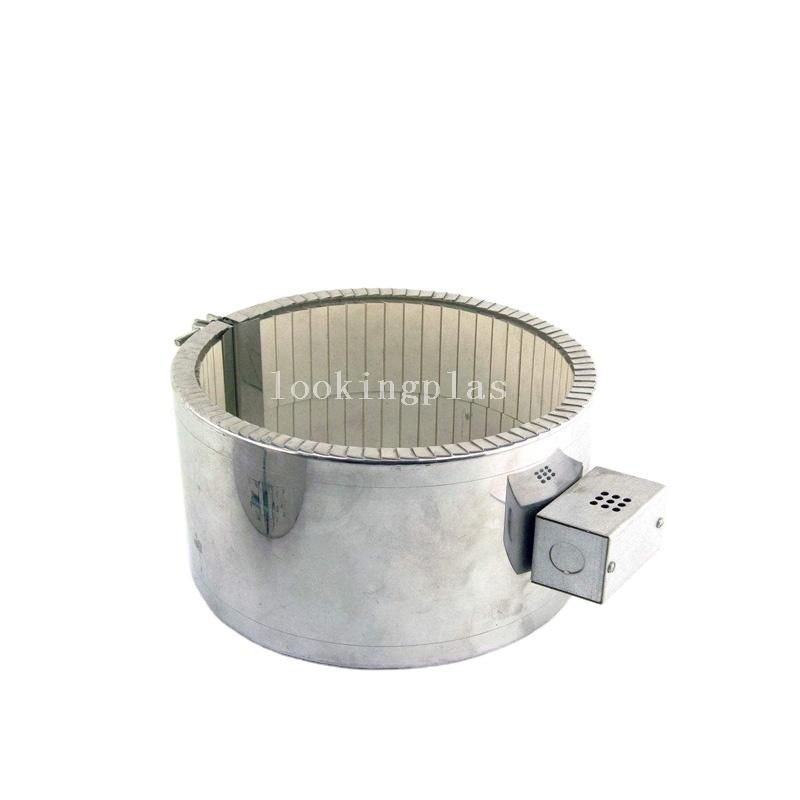

Plastic Extruder Barrel Heater Ceramic Band Heater:

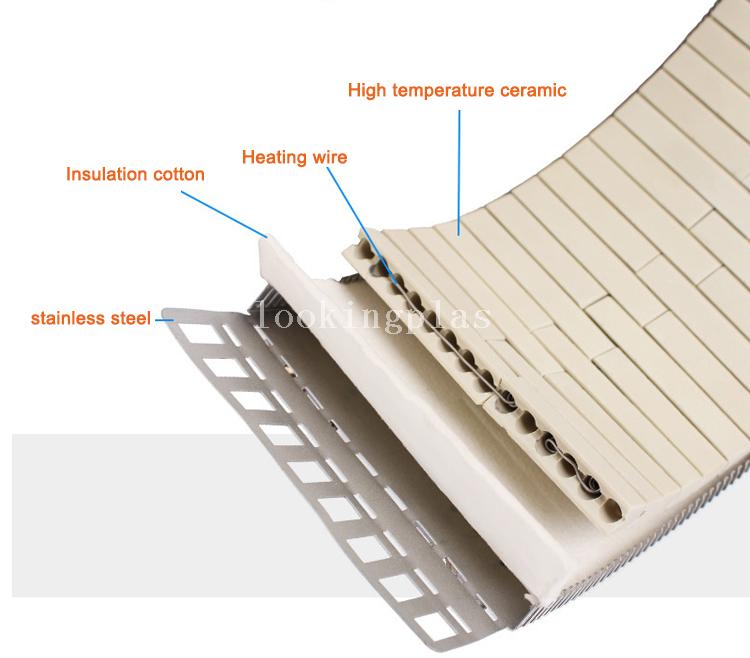

Ceramic Band heaters are are used in plastic processing industry for keeping the nozzles of injection molding machines hot. Nozzle heaters are manufactured from high quality mica sheet or ceramic, and have Nickel Chrome resistance. Nozzle heaters are covered by metal sheathing & can be rolled to the required shape. Band heaters operate efficiently when the sheath temperatures are kept below 280 degree centigrade. If this temperature is maintained, the life of the band heaters gets long.
Ceramic Band Heater Characteristics:
1. The sheath of the heater is rust resistance.
2. High class Nickel Chrome ribbon is used.
3. Maximum power: 3.5 w/cm²
4. Operating temperature up maximum of 300 degree centigrade
5. Axial, Radial & Tangential terminals are available
6. Thermocouple holes can be provided as per client's requirements
Ceramic Band Heater Main Application:
* For heating the nozzles of Injection Molding
* Machines
* Extruders
* Blown film dies
* Nozzles of Injection molding machines
* Other cylinder heating applications
* All Plastic & Rubber Processing Machinery
The key questions which need to be answered before selecting a mica heater are:
1. What wattage and voltage will be used?
2. What is the size required?
3. What is the lead wire required?
