Introduction of recycling machine:
Material: Plastic Films / PP PE Woven Bag / HDPE LDPE PP PE Bottle
Product size: 30-100mm or customized
Moisture content remain: <3%
Progress flow(pp pe film/bag standard system):

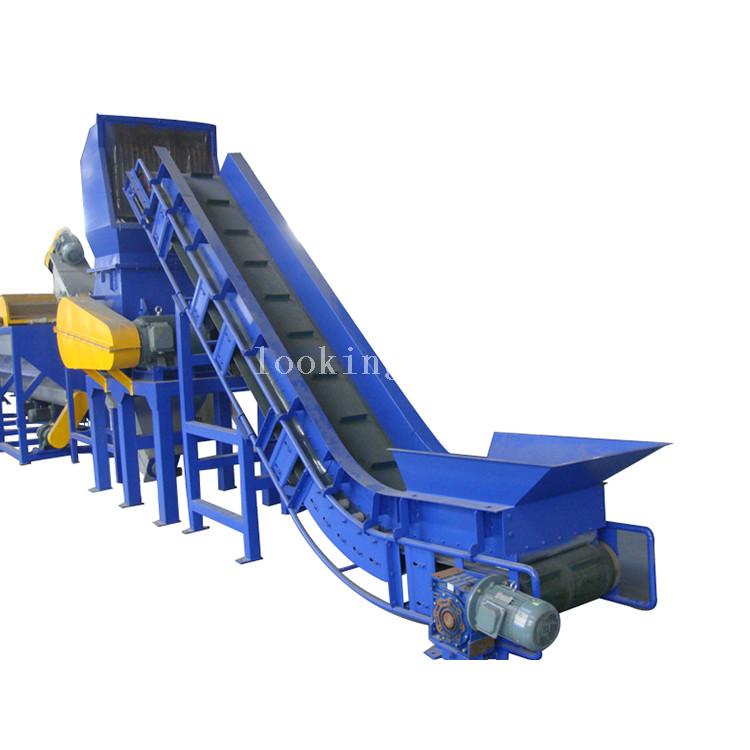

1.Belt conveyor: conveying dirty plastic film or bag into crusher. If too much scrap iron, metal detector may be needed.
2.Crusher: can crushing with water, cut plastic film or bag into small pieces

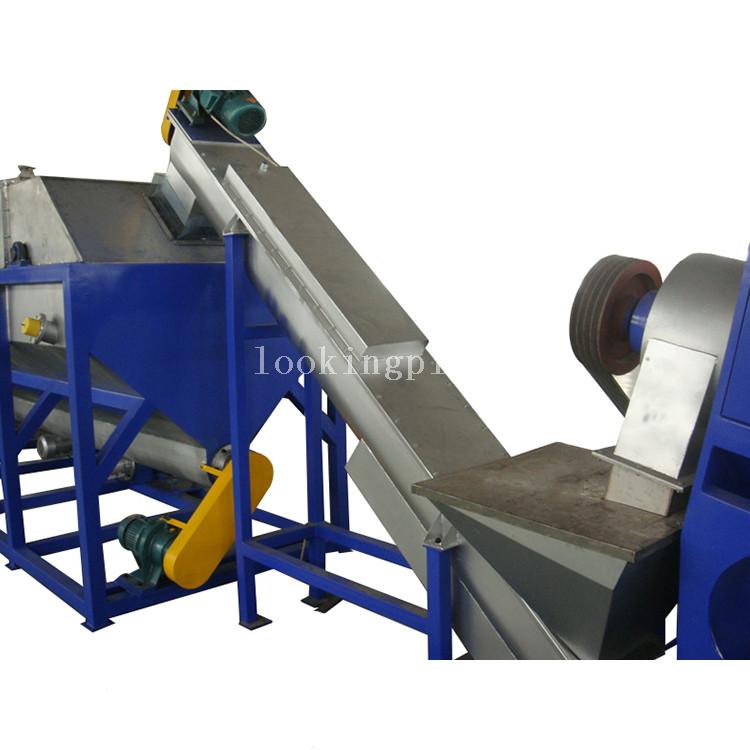

3. Screw loader: load film pieces into the next step
4.High-speed washing machine: Washing out the sand, soil and loading the material

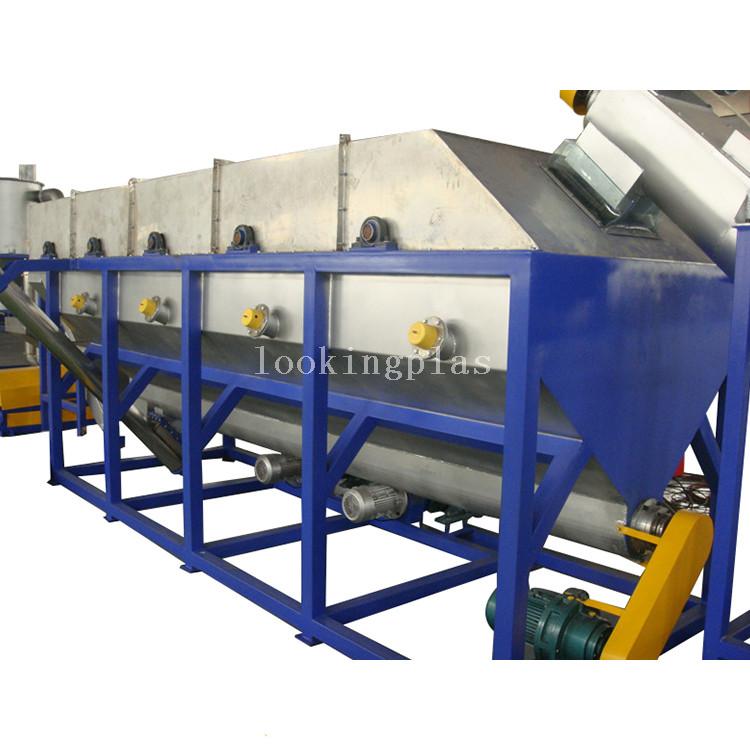

5.Washing tank: separate the sand, soil and other dirties

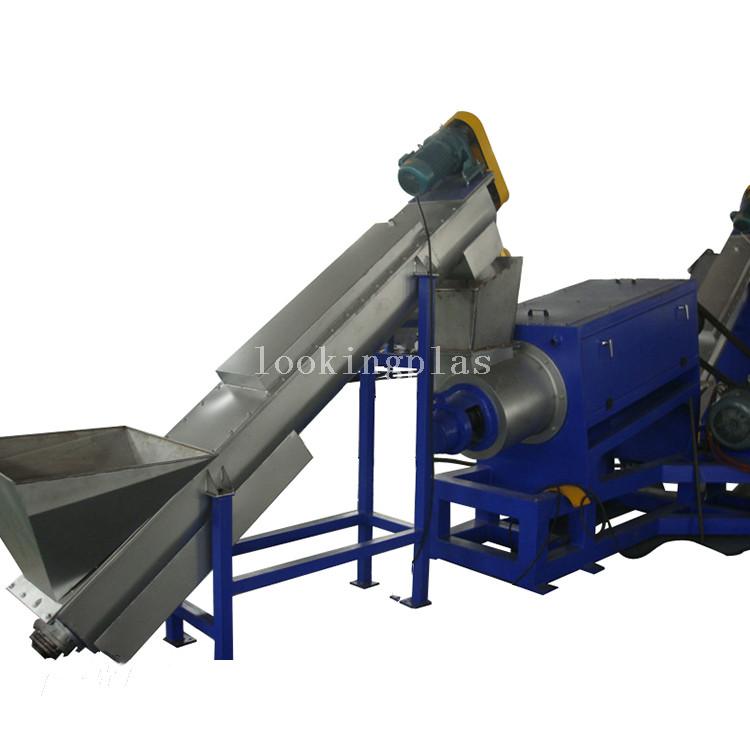

6.Squeezing dryer machine: Remove the water from the material
Main Technical Dates:
Material | Capacity | Install power | Water supply | Man power | Area required |
PP PE film/ bags | 300KG/H | 120KW | 4-5m3/H | 2-3person | 23*5*3.5(L*W*H) |
500KG/H | 180KW | 5-6m3/H | 3-4person | 25*5*5.5(L*W*H) |
1000KG/H | 250KW | 7-8m3/H | 4-5person | 40*6*5.5(L*W*H) |
