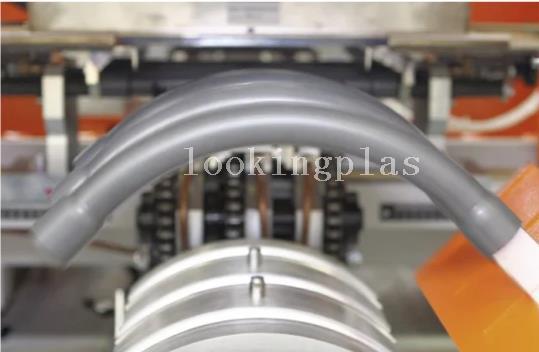

PVC Plastic Pipe Bender 1193 Favorites

Product Categories: Pipe Bender
Packaging Details:Containers By Sea	Trademark:Plummytech
Certification: CE, ISO9001:2008, GMP, QS, UL, Other,
Payment Terms： L/C, T/T, D/P, D/A, Western Union, Paypal, Money Gram , Other,
FOB: USD $10000/Set	HS Code: 8462219000
Loading Port：Shanghai China

Zhangjiagang Plummytech Imp&Exp Co.,Ltd
Company type： Manufacturer	Credit：
Main products：PVC Dosing System,PVC Mixer

Get Quotation

Contact Supplier

To：	Louis
Subject：
Message：	You can also enter 300 characters

Message has been sent successfully.

Post Buying Request

*Subject:
*Matching Rules:	Categories Keywords
*Inquiry Type:
*Keywords:	+ max five keywords
	Added:
	Note:you can add at least one keywod and most five keywords
*Categories:	Add Delete
*Detailed Description:
	Note: Please write your requirement in detail
Attachments：	+ Note: Attachments will help you get accurate solutions Note: Attachments can help you get accurate solution from suppliers
Max quotations want to receive：
	I agree to share my business card with quoted suppliers

Submit Inquiry

No matched supplier

Public souring

Your inquiry has been submitted successfully but 0 supplier matched at present, you will get quotations from Public Sourcing.

Close

Your inquiry has submited successfully and suppliers have been matched by LookingPlas,You will get the quotations as soon as possible.

Close

You had already registered,no need join again.

Registered successfully.

Sorry only Buyer can register the activities.

Technical Parameters
1	Outer Dimension of Machine(mm)	About 3100×2440×2300
2	Pipe Outer Diameter	50-160mm
3	Heating Method	Ceramic infrared heating
4	Heating Power	18kw
5	Heating station	2
6	cooling method	air coooling and water cooling
7	total power of hydraulic system	5.5kw
8	socketing station	2
9	socket type	U type and R type
10	hydrailic oil	46# wear resistance hydraulic oil
11	Max heating temperature	300centigrade
12	Air pressure	0.4-0.6Mpa
13	Water pressure	0.2-0.3Mpa
14	Pipe rotate motor power	0.37kw
15	pipe unload motor power	0.18kw
16	bending speed	Φ110×2.0mm 80seconds/pipe

Model	Plummytech
Place of Origin	China
