Process flow for PP PC hollow sheet extrusion production line：

Raw material + additive → mixing → vacuum feeding machine → hopper dryer → single screw extruder → color code extruder (depend on instrusion of the sheet)→Hydraulic screen change(optional)→melt pump→T-die→Vacuum calibrator forming machine→First hause off unit→Anneal oven→Cooling bracket→Double side Corona treatment device(optional)→Second haul off unit→Cross cutter and transmission unit→Collect table

Characteristics:

Capacity: single screw extruder, suitable to process PP PC resin with high capacity, max 800kg/h.width: from 1220 to 2500mm，Adopts reasonable design, absorbing safe producing technology, acquiring CE certificate

Description of PP PC hollow sheet production line:

Adopted suitable screw design and machine configuration, it is widely used in manufacturing PP or PC hollow profile boards of various specifications(Max. Width: 2500mm; Thickness range: 2mm-12mm). It is widely used in the fields of advertisement, decoration, sound-proof, packing. Because it is featured by light-weight, strong, damp proof, anticorrosive advantages, it trends to replace the paper carton gradually and become the first choice to make packing cases.

1.Extruder: The special designed screw and the advanced temperature control system ensure the good plasticizing, stable extrusion and high output.

2.Screen changer: It is of hydraulic style fast screen changer and ensures the short course of the exchanging filters. Double filters and special leakage-proof structure guarantee its stable performance.

3.Die: Made of super quality alloy and adopted adjustable restrictor bars, provide the even pressure of the plastic flow at the die lips. It ensures even thickness of the board with adjustable lips

4.Vacuum calibrator: The vacuum system and calibrating system including a heat-convection system array interleaved. This kind of design guarantees the high precise degree of the calibration. The vacuum system consists of two independent subsystems, which is equipped with many pieces three point type closed loop vacuum line. Each closed loop is equipped with vacuum regulating system and vacuum display system. This guarantees the good calibration and the smooth surface of the board.

Technical Parameter :

PC PP hollow profile sheet board extrusion machine extruder details photo:

PLC control panel, mould, calibration table，Filter, melt pump，calibration table，slitting unit, cutter. etc:

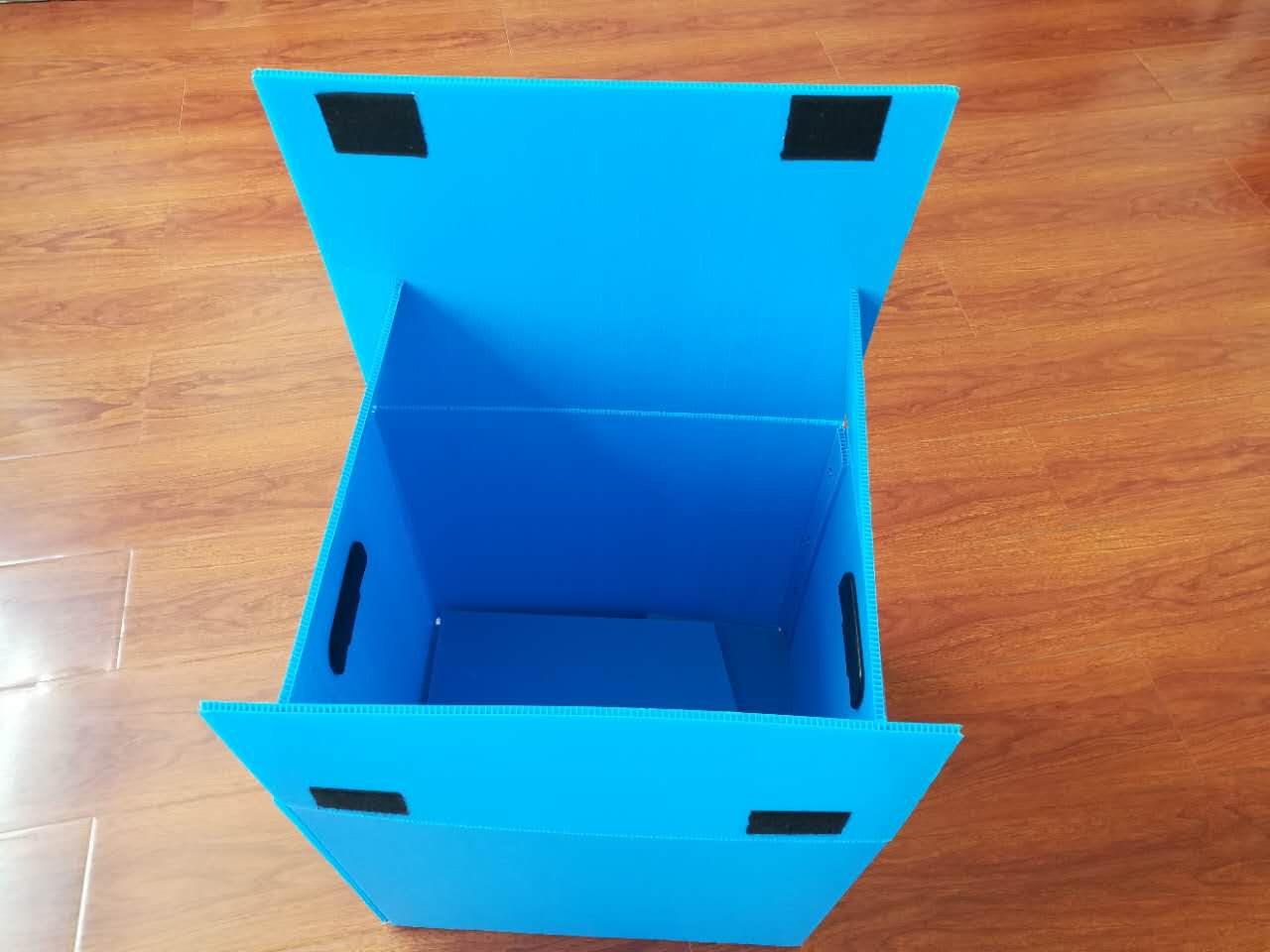

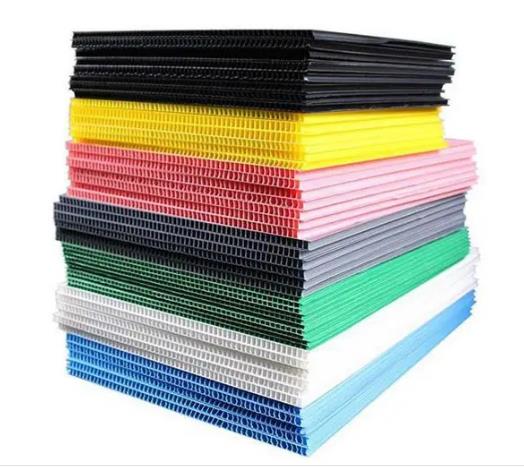

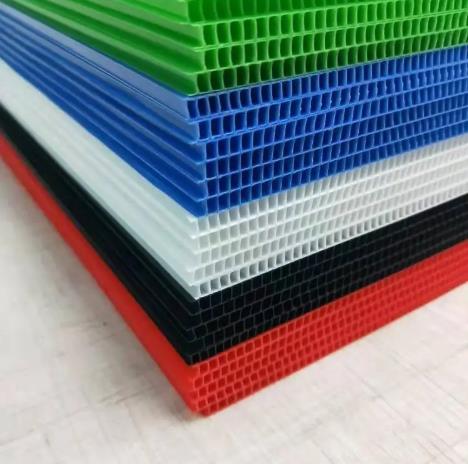

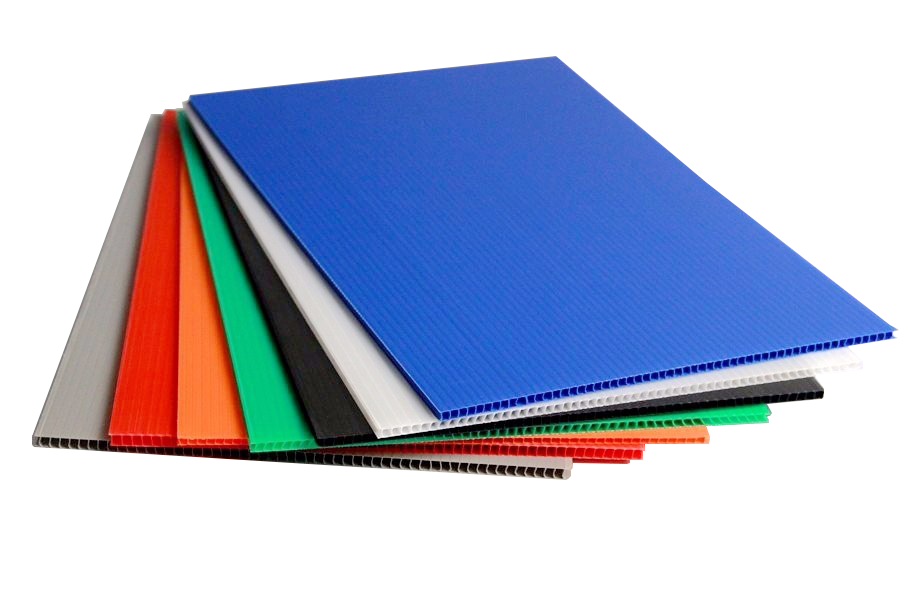

PP PC Hollow Profile Sheet Board photo and application:
