Plastic bottle blow molding machine
1.Machine specification
OGB-3
|
PRODUCT
| Theoretical output | PSC/H | 3300 |
Max volume
| L | 1.5 |
Max height
| mm | 360 |
| Max diameter | mm | 105 |
MOULD | Cavity
| / | 3 |
| Mould plate dimension(LxH) | mm
| 430x360 |
Mould thicknes | mm | 188 |
Mould opening stroke | mm
| 110 |
ELETRICAL
| Power | kw | 220-380v/50-60hz |
| Total power | kw | 18
|
Heating power
| kw | 15 |
AIR SYSTEM
| Operation pressure | Mpa | 0.8-1.0 |
| Action air consuming | m³/min | ≥1.6 |
| Blowing pressure | Mpa | 2.6-4.0 |
| Blowing air consuming | m³/min | ≥2.4 |
MACHINE | Blower dimension(LxWxH) | m | 2.7x1.45x2.5
|
Blower weight
| KG | 2000
|
Preform autoloader dimension (LxWxH) | m | 1.9x1.9x2.2 |
| Preform autoloader weight | KG | 200 |
2.Machine features
●The touch screen is applied with Siemens from Germany. It brings new sense on the vision for user, because of the clear picture.

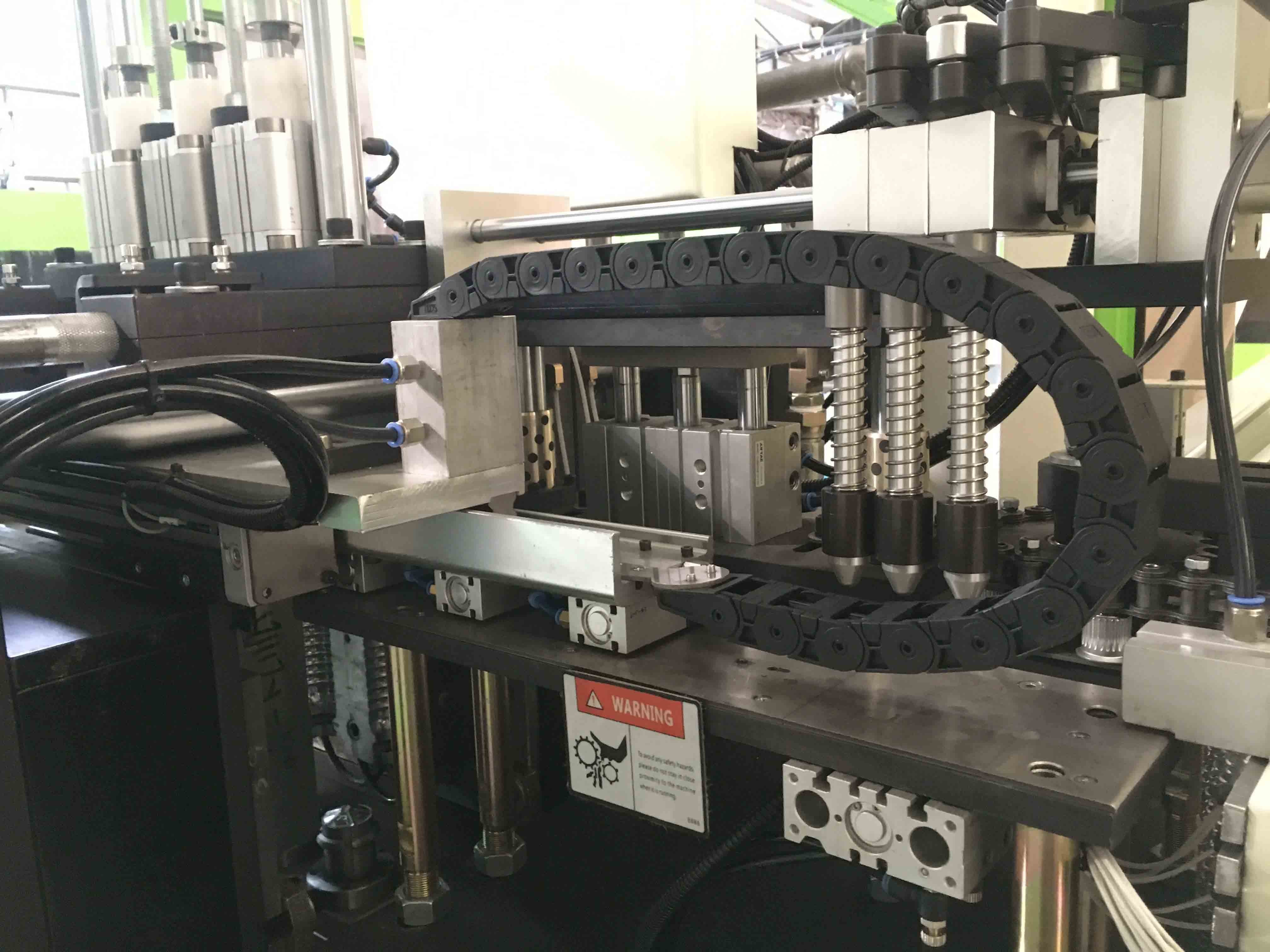

●Blank picking system applied linear mechanical arm. This system has features of long centre distance of bottle picking, fast speed of bottle picking, high accuracy, less gas consumption, long usage life, and easy to install and debug.
●Whole machine has features of reasonable layout, compact structure, well appearance, and easy for operation and maintenance.
●Drying tunnel is applied with single cycling suspension type vertical heating mode with features of short centre distance of bottle blank heating, fast heating speed, and saving 50% electricity than old dual cycling heating design. The bottle blank won't be decentration under the influence of its action of gravity when heating, so as to ensure the equality of formed bottle thickness.

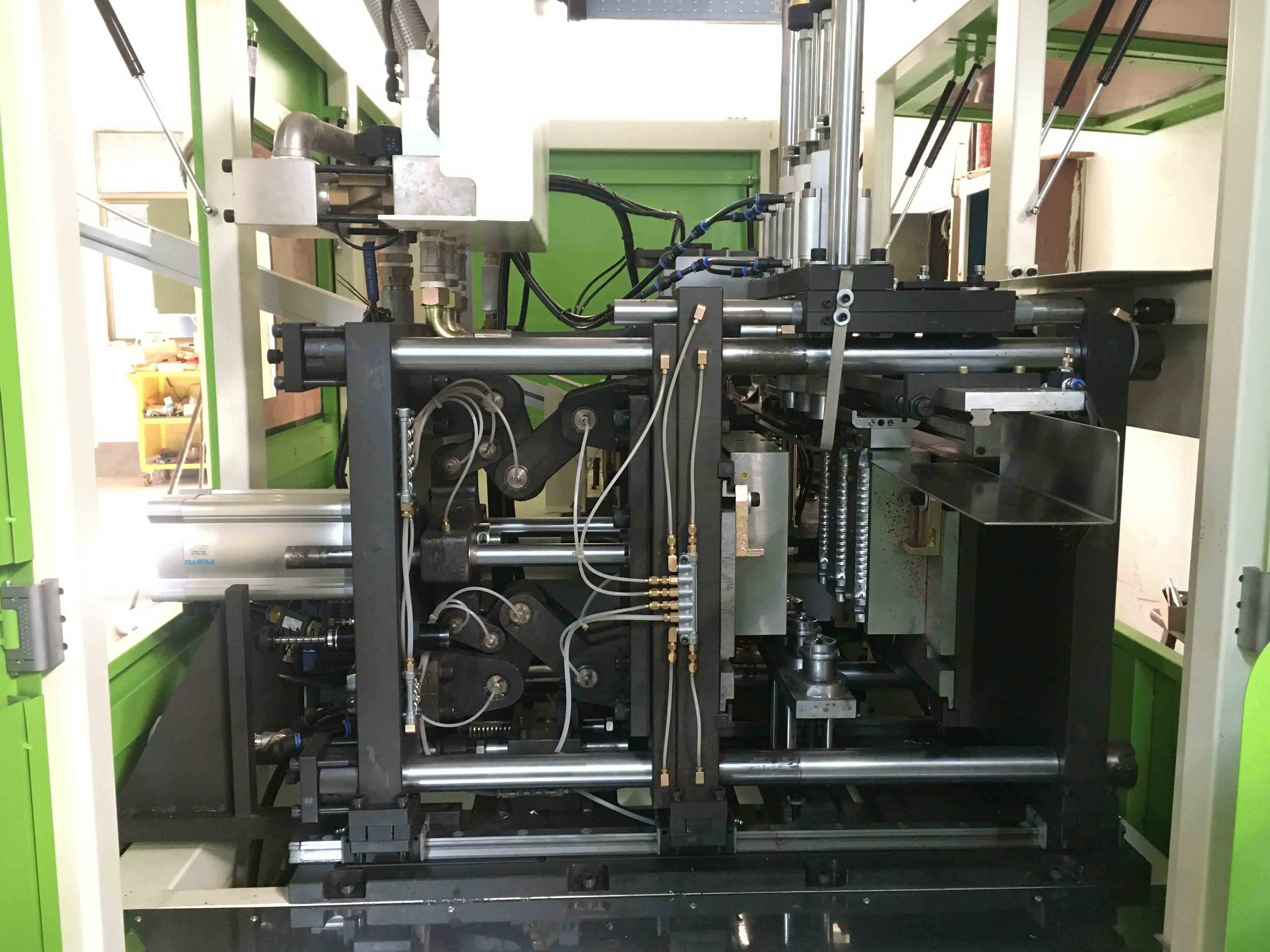

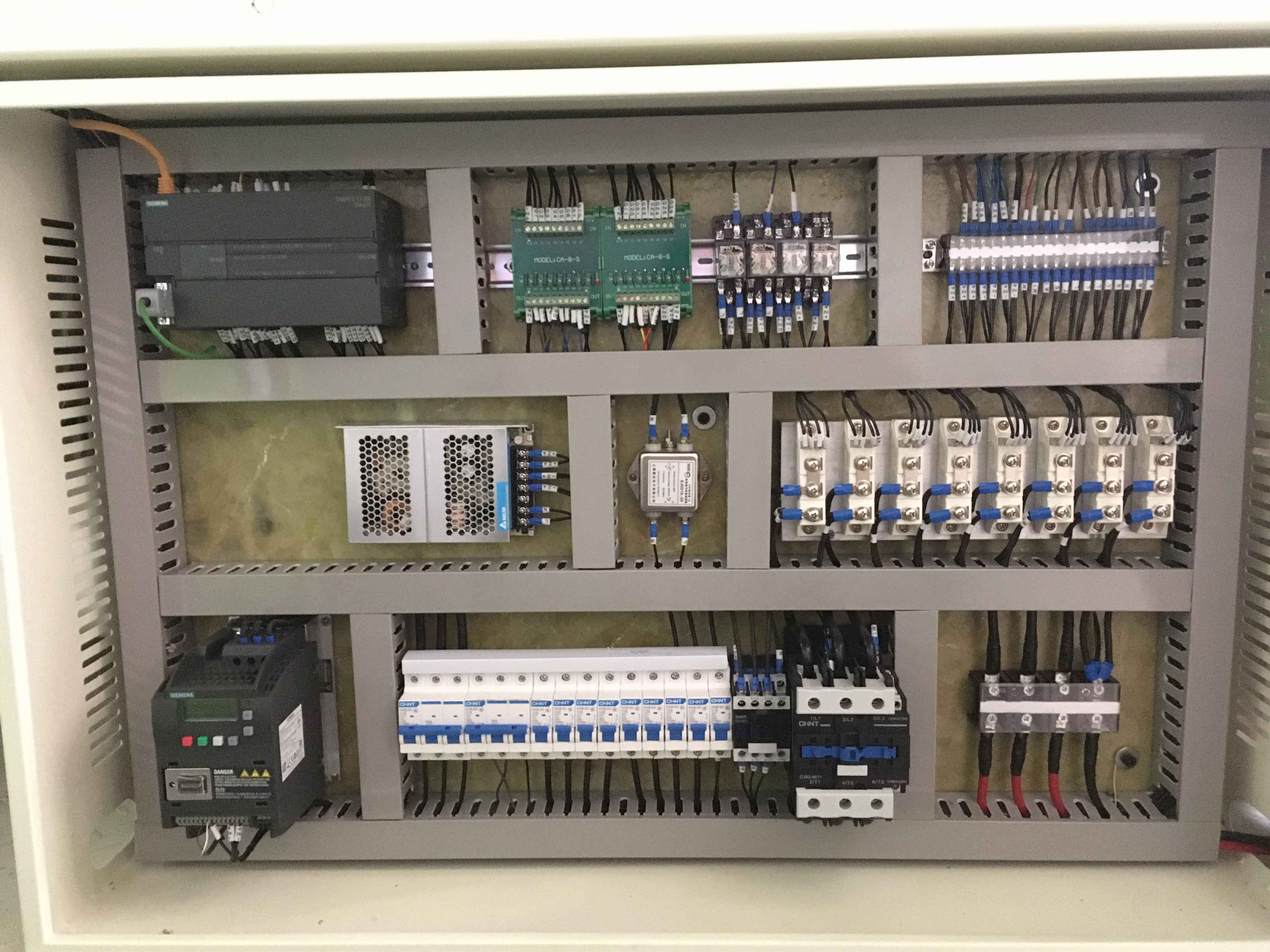

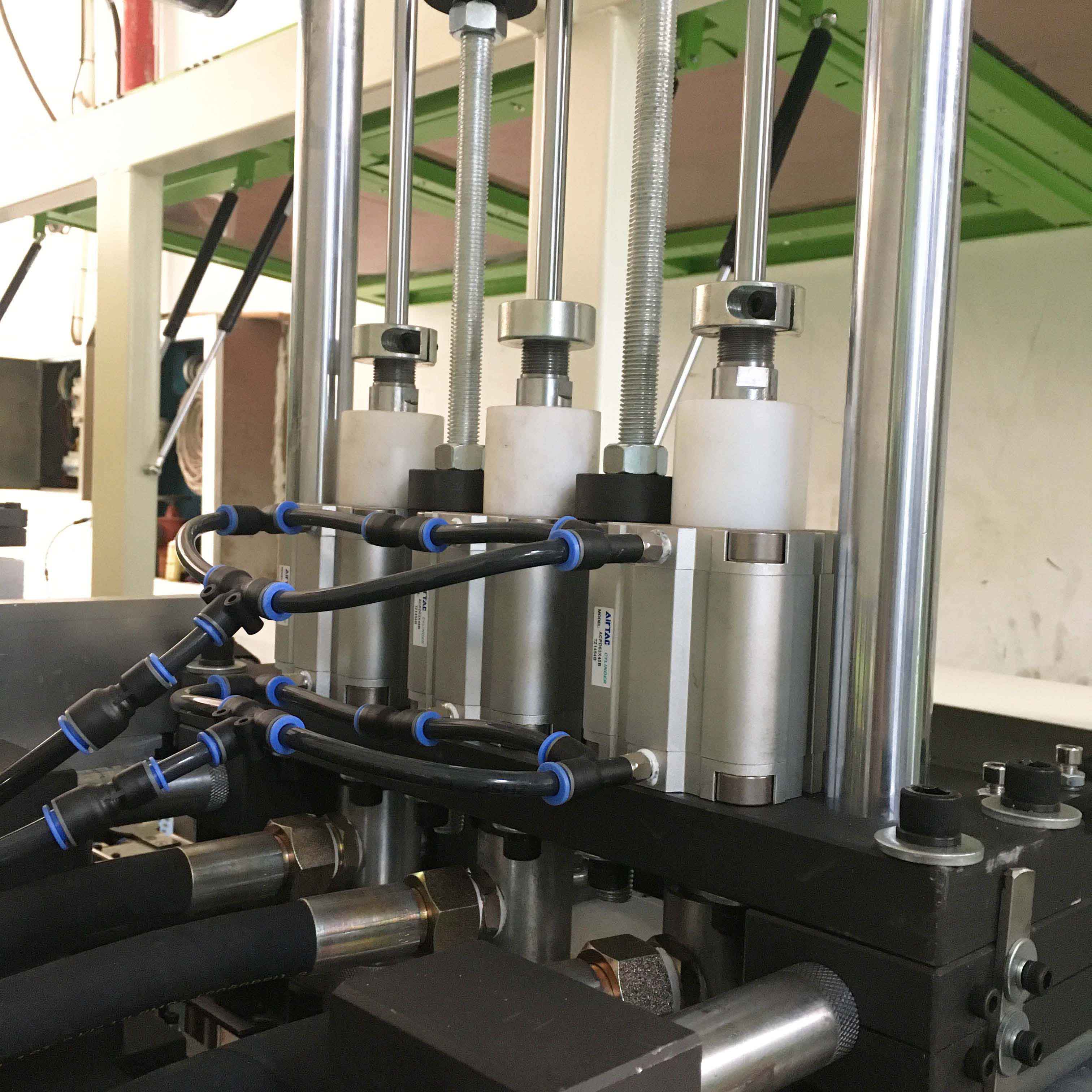

3. Machine details
4. Certificate
ISO9001， CAS, CE, etc.
5. Packing & Delivery
●Package: plastic or wooden case.
6. Payment
●Payment：L/C,T/T
●Available Trade Terms： FOB,CFR,CIF,EXW, etc.
●Port： NINGBO/SHANGHAI PORT
●Warranty：1 years
●Shipping: By sea/air
7. FAQ
Q1: Where is your factory located?
A1: Our factory, near Shanghai, is located in Huangyan, Taizhou.
Q2. Could you please provide me samples after testing the mold?
A2: Yes, we could deliver samples for confirmation.
Q3:How long is the warranty of your equipment?
A3: One-year warranty after receipt check upon delivery.
