Product Description
MTC series water heaters have both standard and high temperature models, which are used to heat up the mold and maintain temperature, although they can be used in other similar applications. High temperature water from the mold is returned to the cooling tank and cooled by either indirect cooling (For high temperature and high temperature plus pressure models) or direct cooling (For standard models). It is then pressured by the high-pressure pump, sent to the heating tank and finally to the mold with a constant temperature. The OMRON temperature controller can maintain an accuracy of ±0.3°C.
Standard Equipment:
1. LCD Display, Choice of Language; 2. Siemens control parts; 3. Electric Cabinet Separation design; 4. Over temperature Trip; 5. Return Temperature Display; 6. Auto Ventilation; 7. Safety Valve; 8. Liquid Level Sensor; 9.Booster Pump; 10. Magnetic Drive pump
Product Specification
Model
| MTC
|
| 1205G | 1210G | 1210S | 1220S | 1230S |
| Medium | Fresh Water
|
| Max.Working Temp. | 120℃
|
| Control Method | P.I.D Control
|
| Heater Power(KW) | 6 | 9
| 12/18 | 18/24 |
| Pump Motor Power | 0.37KW | 0.75KW | 0.75KW | 1.5KW | 2.2KW |
| Pump Max.Pressure | 0.28Mpa | 0.38Mpa | 0.22Mpa | 0.24Mpa | 0.26Mpa |
| Pump Max.Flow | 42L/min | 56L/min | 165L/min | 235L/min | 315L/min |
| Cooling Method | Direct Cooling
|
| Cooling Capacity | 11KW | 50KW
|
| Alarm | Phase Reverse,Medium Shortage,Pump Overload,Temp.Upper and Lower limit,Over Heat
|
| Power Suppy | AC380V, 3Phase, 50Hz(Can be customized)
|
| Dimensions | 850x290x655 | 850x290x655 | 1070x310x695 | 1130x340x835 | 1130x340x835 |
| Weight(KG) | 50 | 54 | 60 | 110 | 120 |

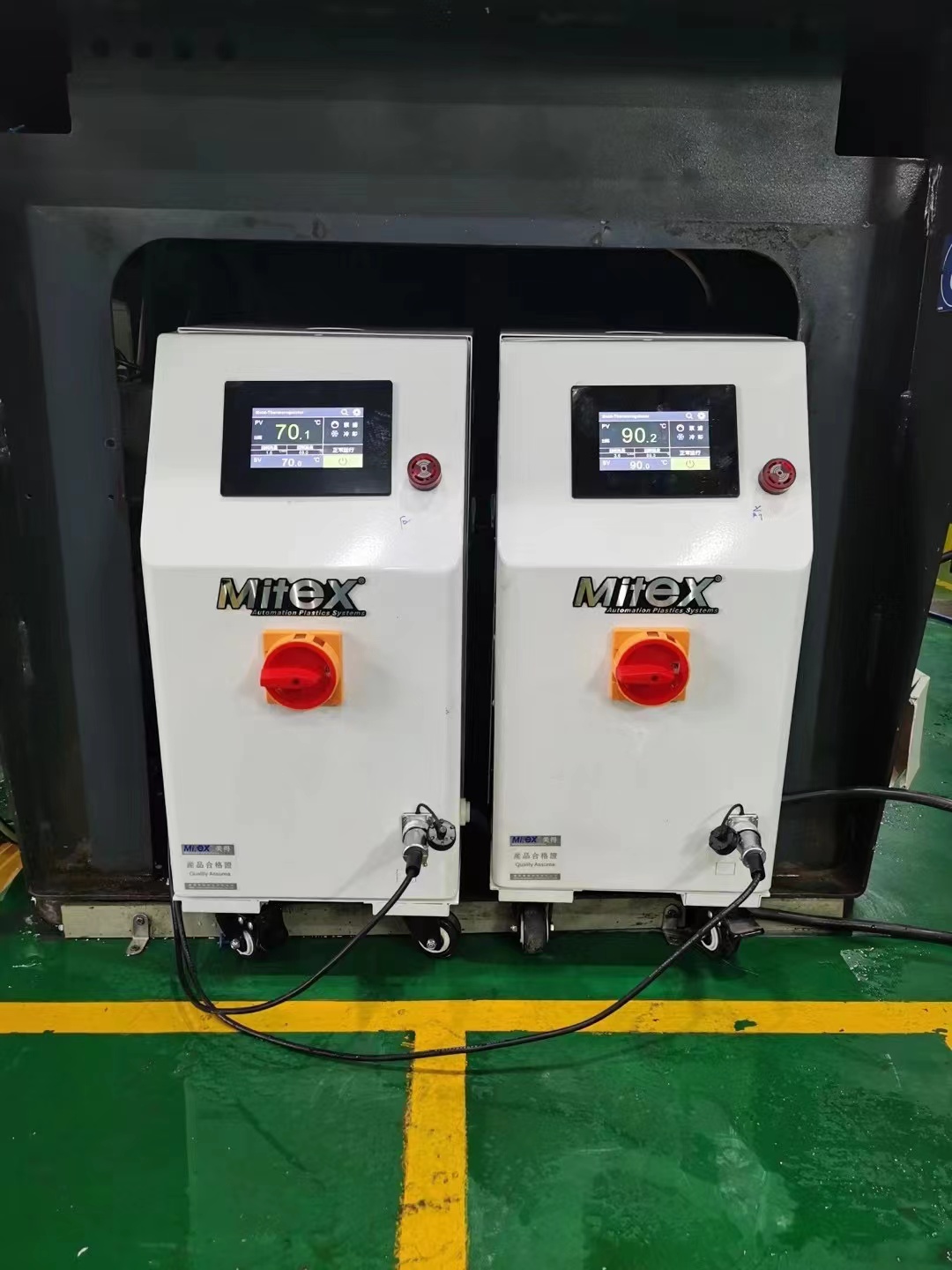

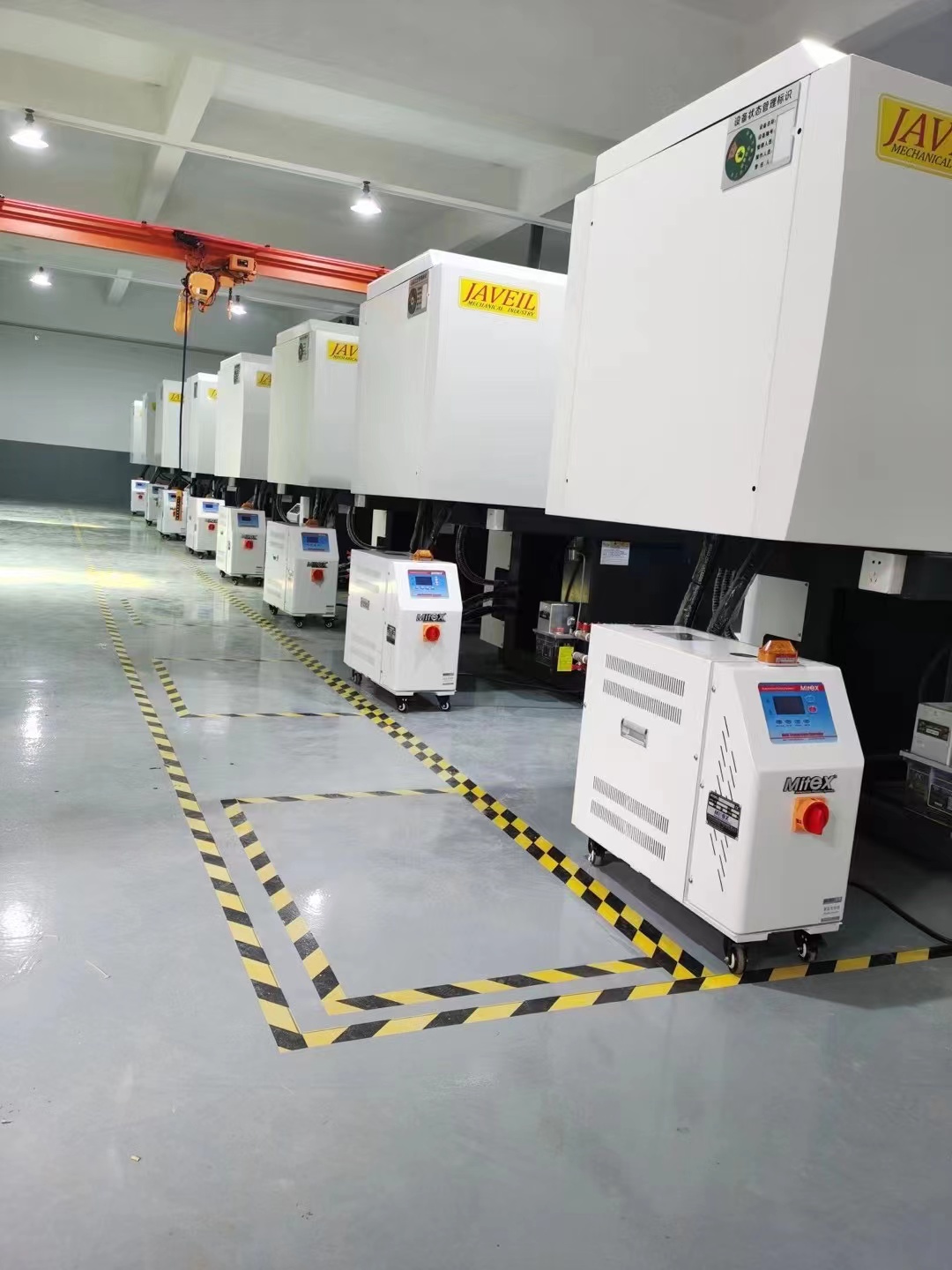

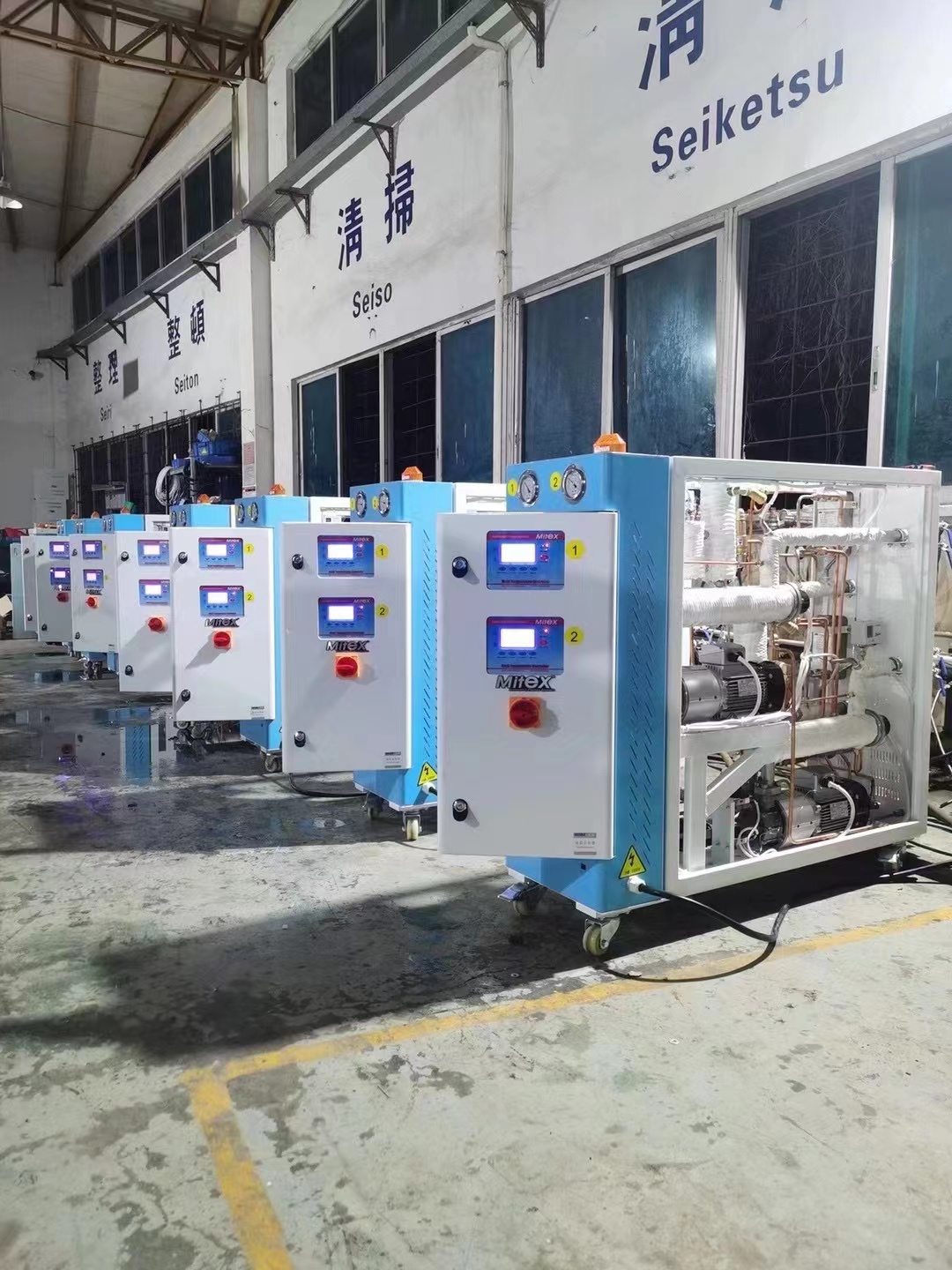

Customer Cases
